Uni-Solar PVL-128T UL LISTED 128W 24V Flexible Solar Panel Grid-Tie with MC3

(No reviews yet) Write a Review
SKU:
44031
MPN:
PVL-128
Condition:
New
Shipping:
Calculated at Checkout
  • Uni-Solar PVL-128T UL LISTED 128W 24V Flexible Solar Panel Grid-Tie with MC3
  • Uni-Solar PVL-128T UL LISTED 128W 24V Flexible Solar Panel Grid-Tie with MC3
  • Uni-Solar PVL-128T UL LISTED 128W 24V Flexible Solar Panel Grid-Tie with MC3
  • Uni-Solar PVL-128T UL LISTED 128W 24V Flexible Solar Panel Grid-Tie with MC3
  • Uni-Solar PVL-128T UL LISTED 128W 24V Flexible Solar Panel Grid-Tie with MC3
  • Uni-Solar PVL-128T UL LISTED 128W 24V Flexible Solar Panel Grid-Tie with MC3
  • Uni-Solar PVL-128T UL LISTED 128W 24V Flexible Solar Panel Grid-Tie with MC3
$145.00
Was: $225.00

Description

Uni-Solar PVL-128T 128 Watt 24 Volt Brand New Flexible Amorphous Solar Panel with MC3 cables and connectors.



Category 3 (130 MPH) Hurricane uplift resistant when installed in accordance with manufacturer's guidelines.



Grid Tie UL 1703 Listed for Systems up to 600 VDC!



These are RARE flexible solar panels that are UL LISTED and OKAY for installing on residential and commercial roofs in a Grid-Tie or Off-Grid setup! (Please check your local laws!)



These are new old stock and pulled from new carton of 30 panels. They have been stored in a temperature controlled environment and are in new condition. Uni-solar PVL-128 flexible panels are no longer made and are getting more rare by the day. These panels are 128 watt flexible panels that are lightweight and have a peel and stick backing that needs no additional mounting hardware. Designed for flat and metal roofs, they also work for RV boat and truck trailer applications. They also work great for portable solar power generators as they can be rolled up into a 16" box and transported.

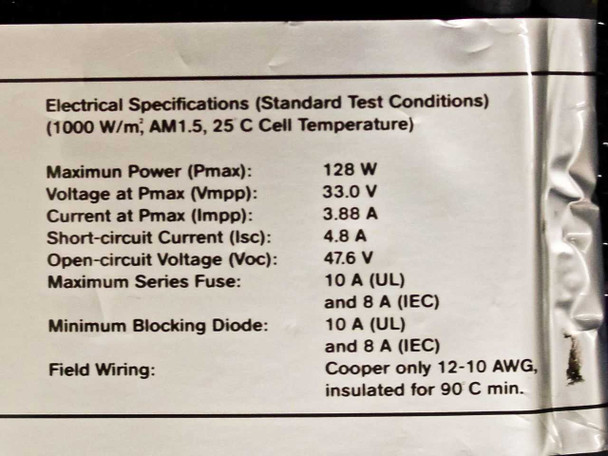

  • Maximum Power (Pmax): 128 Watts
  • Nominal Operating Voltage: 24 Volts
  • Watts (PTC): 121.2 Watts
  • Max Power Voltage (Vmpp): 33 Volts
  • Max Power Current (Impp): 3.88 Amps
  • Open Circuit Voltage (Voc): 47.6 Volts
  • Short Circuit Current (Isc): 4.8 Amps
  • Max System Voltage: 600 Volts
  • Module Efficiency: 6.2%
  • Lightweight & Flexible
  • Easy Peel & Stick Application
  • Virtually Unbreakable (No Glass)
  • Shadow & High Heat Tolerant
  • Frame Material: Frameless

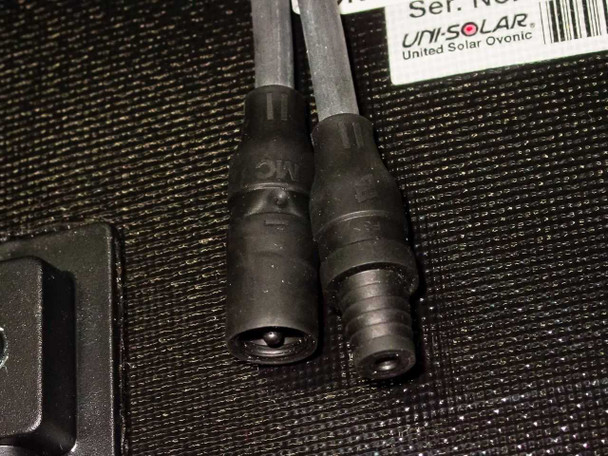

  • Module Connector: MC3
  • Cells Per Module: 20
  • Bonding adhesive factory-installed on the back of the laminate
  • FULL Dimensions: 216" (18-Feet) Long x 15.5" Wide x 0.2" Thick
  • Single Panel Weight: 16 Lbs



  • Each cell is connected to each other via bypass diodes. Therefore, if one cell is shaded or soiled, only the power output of this one shaded cell is lost – usually less than 4.5%.These panels are less than 1/5th the weight of crystalline solar panels and are designed for membrane and metal roofing system applications. Here is a video with many examples.
