Uni-Solar PVL-128 UL LISTED 128W 24V Flexible Solar Panel Grid-Tie Solder Points

(No reviews yet) Write a Review
SKU:
51942
MPN:
PVL-128
Condition:
Used
Shipping:
Calculated at Checkout
  • Uni-Solar PVL-128 UL LISTED 128W 24V Flexible Solar Panel Grid-Tie Solder Points
  • Uni-Solar PVL-128 UL LISTED 128W 24V Flexible Solar Panel Grid-Tie Solder Points
  • Uni-Solar PVL-128 UL LISTED 128W 24V Flexible Solar Panel Grid-Tie Solder Points
  • Uni-Solar PVL-128 UL LISTED 128W 24V Flexible Solar Panel Grid-Tie Solder Points
  • Uni-Solar PVL-128 UL LISTED 128W 24V Flexible Solar Panel Grid-Tie Solder Points
$106.00
Was: $170.00

Description

Uni-Solar PVL-128 128W 24-Volt Flexible Amorphous Solar Panel with Bottom Facing SOLDER POINTS. These are top tier finished panels. Unisolar made them this way for a specific client. These are also Grid Tie UL 1703 Listed for Systems up to 600 VDC. Which means they were made to last 20 Years. See brochure


Category 3 (130 MPH) Hurricane uplift resistant when installed in accordance with manufacturer's guidelines.


These panels are New Open Box. They have the bottom solder points for connections down through the roof. They are 18 feet long. If you would like the cables that you add to come up through the top of the panel it is possible by scraping off the top sheet above the solder points and connecting the wire through from the top. Then caulk the bottom solder points to insulate. We include a DIY Junction Box with 18-Inch long MC3 Connectors FREE with every panel sold. You can just remove and use the wires or if you solder a short 4" wire into solder point you can then glue the J-box to add cables.


Previous customers have reported installing these panels on their corrugated metal roofs by attaching 18" x 2" metal strips every few feet on the sticky backing, leaving the white covering for the sticky backing intact where the metal strips are not present (saving the sticky material for other projects in case the panel is moved later). They then drove self-tapping screws through the protruding ends of the metal strips onto their metal roof, sealed with a proper caulk. This allowed them to install the panel with its built-in sticky backing and yet keep the installation non-permanent.


Electrical Stats:
  • Maximum Power (Pmax): 128 Watts
  • Nominal Operating Voltage: 24 Volts

  • Max Power Voltage (Vmpp): 33 Volts
  • Max Power Current (Impp): 3.88 Amps

  • Open Circuit Voltage (Voc): 47.6 Volts
  • Short Circuit Current (Isc): 4.8 Amps

  • Physical Stats:
  • Panel Dimensions (Feet): 18 long x 1.29 wide
  • Panel Dimensions (Inches): 216 long x 15.5 wide x 0.2 thick
  • Panel Weight: 16 Pounds

  • Electrical Connectors:
  • None: Solder Points on bottom of panel

  • Features:
  • Lightweight & Flexible
  • Easy Peel & Stick Application
  • Virtually Unbreakable (No Glass)
  • Shadow & High Heat Tolerant
  • Frame Material: Frameless
  • Bonding adhesive factory-installed on the back of the laminate

  •

    Condition: Open box

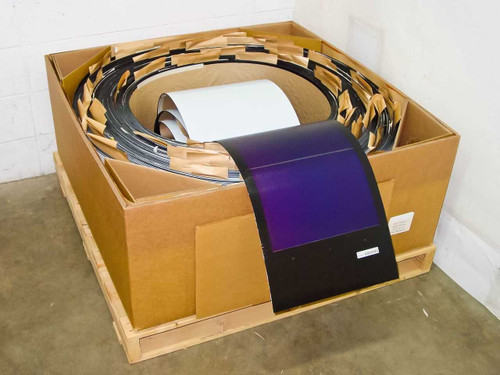

    New Open Box. This panel has bottom-facing solder points for connections down through a roof. We include a DIY Junction Box with 18-Inch MC3 Connectors with every panel sold, but other components may be needed depending on the desired setup, such as short wires to connect the solder points to the j-box, and/or a sealant to connect the j-box securely to the panel. It is 18 feet long by 15.5 inches wide. Please view our photo set and contact us if you have any questions.
