Solar Cells for DIY
Solar Cells for DIY is a category dedicated to providing DIY enthusiasts with all the necessary components and tools to create their own solar energy systems. From small scale projects like solar phone chargers to larger scale projects like solar panels for homes, Solar Cells for DIY offers a wide range of options to fit any skill level. Whether you are looking to save money on your energy bills or just enjoy working on sustainable projects, Solar Cells for DIY has everything you need to get started. Explore our selection of solar panels, batteries, charge controllers, and more to kickstart your solar energy journey today.
-
Nanosolar NanoCell 2.6W Flexible CIGS Solar Cell 0.45V 5.8A 165x135mm Lot/100
Nanosolar
$150.00Was: $375.00Nanosolar NanoCell 2.6W Flexible CIGS Solar Cell 0.45V 5.8A 165x135mm Lot/100This is a lot of 100 Nanosolar NanoCell flexible CIGS thin-film solar cells, totaling 260 watts of rated generating...53033- SKU:
- 53033
- Availability:
- Usually ships within 1–2 business days.
- Weight:
- 25.00 LBS
- Brand:
- Nanosolar
- Model:
- NanoCell
- MPN:
- NS NanoCell
- Type:
- Flexible CIGS Thin-Film Solar Cell
- SKU:
- 53033
- Seller Notes:
- Lot of 100 raw uncoated cells; 260W total; stored in sealed cartons with desiccant
- Country/Region of Manufacture:
- United States
- Cell Technology:
- CIGS (Copper Indium Gallium Selenide) Print2Power
- Cell Construction:
- MWT (Metal Wrap Through) screen-printed
- Substrate:
- Semi-flexible lightweight aluminum
- Rated Power (per cell):
- 2.6 Watts
- Total Lot Power:
- 260 Watts (100 cells)
- Quantity:
- 100 cells
- Vmpp:
- 0.45 V
- Impp:
- 5.8 A
- Voc:
- 0.61 V
- Isc:
- 6.7 A
- Power Tolerance:
- -10% to +10%
- Temp Coefficient Pmax:
- -0.40 %/K
- Temp Coefficient Voc:
- -0.30 %/K
- Temp Coefficient Isc:
- +0.01 %/K
- Max System Voltage:
- 600V UL / 1000V IEC
- Cell Length:
- 165 mm (6.5 in)
- Cell Width:
- 135 mm (5.3 in)
- Cell Height/Thickness:
- 0.4 mm (0.02 in)
- Surface Finish:
- Raw, uncoated
- Connection Method:
- Conductive adhesive or epoxy (no output cables)
- Output Terminal:
- Connection tab (positive); uncoated aluminum strip (negative)
- Datasheet Reference:
- NSC-NS NanoCell-CDS_Preliminary_EN.v2
- Condition Notes:
- Nanosolar NanoCell 2.6W CIGS flexible solar cells, lot of 100. New and unused, stored in sealed cartons with desiccant. Raw uncoated cells, no wear or damage. Open-box — original retail packaging not included.
- California Prop 65 Warning:
- WARNING: This product can expose you to chemicals including lead and lead compounds, and DEHP (a phthalate), which are known to the State of California to cause cancer and birth defects or other reproductive harm. Go to P65Warnings.ca.gov
$150.00Was: $375.00 -

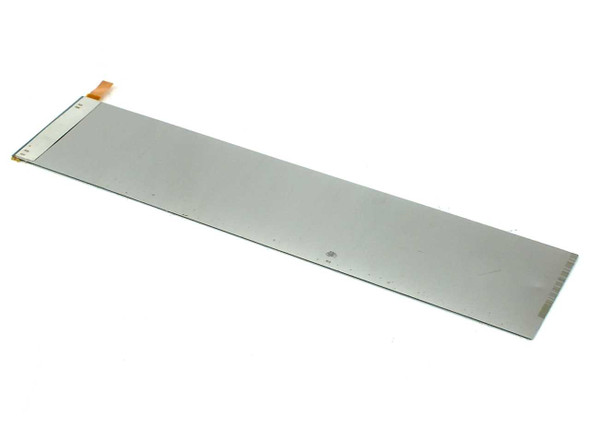

Uni-Solar AF5 4218FG Amorphous Solar Cell 2V 0.35A Flexible Stainless Steel
Uni-Solar
$30.00Was: $60.00Uni-Solar AF5 4218FG Amorphous Solar Cell 2V 0.35A Flexible Stainless Steel 25-PackThis listing is for a pack of 25 Uni-Solar AF5 4218FG flexible amorphous thin-film solar cells on a stainless steel...52519- SKU:
- 52519
- Availability:
- Usually ships within 1–2 business days.
- Weight:
- 4.00 LBS
- Brand:
- Uni-Solar
- Model:
- AF5
- MPN:
- 4218FG
- Type:
- Amorphous Thin-Film Flexible Solar Cell
- SKU:
- 52519
- Cell Technology:
- Amorphous Silicon (a-Si) Thin Film
- Substrate Material:
- Flexible Stainless Steel
- Nominal Voltage:
- 2 V
- Nominal Current:
- 0.35 A
- Current Range (MPPT):
- 0.35 A – 0.40 A
- Cell Grade:
- Q Grade C
- Cell Size (Approx.):
- 7 in x 1.5 in
- Quantity per Pack:
- 25 cells
- Connection Type:
- Tabbed ribbon leads (flex connector)
- Form Factor:
- Flexible / Rollable
- Application:
- DIY Solar, Custom Panel Assembly, Off-Grid
- Condition:
- New – Open Box, unused
- Country/Region of Manufacture:
- United States
- Seller Notes:
- Pack of 25 new, unused cells. Tested to produce ~2V at 0.35–0.40A MPPT.
- Condition Notes:
- Uni-Solar AF5 4218FG flexible solar cells — pack of 25, new and unused. Tested to ~2V / 0.35–0.40A MPPT. Open box; cells are in new, unused condition with no wear.
- California Prop 65 Warning:
- WARNING: This product can expose you to chemicals including lead and lead compounds, and DEHP (a phthalate), which are known to the State of California to cause cancer and birth defects or other reproductive harm. Go to P65Warnings.ca.gov
$30.00Was: $60.00 -

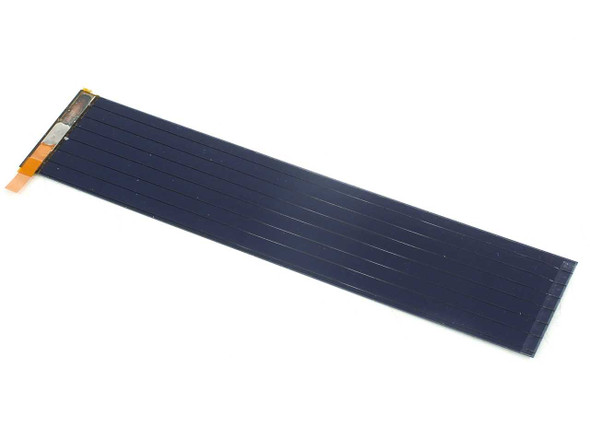

Uni-Solar AF5 4218 FG Amorphous Flexible Solar Cells Grade C Lot of 400
Uni-Solar
$600.00Was: $975.00Uni-Solar AF5 4218 FG Amorphous Flexible Solar Cells Grade C Lot of 400Amorphous silicon flexible thin-film solar cells manufactured by Uni-Solar. Each cell measures approximately 7 inches by 1.5...52518- SKU:
- 52518
- Availability:
- Usually ships within 1-2 business days.
- Weight:
- 17.00 LBS
- Brand:
- Uni-Solar
- Model:
- AF5 4218 FG
- MPN:
- AF5 4218 FG
- SKU:
- 52518
- Type:
- Amorphous Flexible Thin-Film Solar Cell
- Cell Grade:
- Grade C (Q Grade)
- Quantity:
- 400 cells per carton
- Cell Size (Approx):
- 7 in x 1.5 in
- Cell Technology:
- Amorphous Silicon (a-Si)
- Substrate:
- Stainless Steel
- Flexibility:
- Flexible
- Condition:
- New – Old Stock (factory sealed carton)
- Seller Notes:
- Carton of 400 new unused cells; sourced from Uni-Solar factory at 2013 closure
- Country/Region of Manufacture:
- United States
- Application:
- DIY Solar, Custom Solar Panel Fabrication
- Compatible With:
- DIY solar panel builds, flexible solar module lamination
- Condition Notes:
- New unused old stock from Uni-Solar's 2013 factory closure. Carton of 400 cells, individually wrapped, never used. Date codes 12/28-29/11. Grade C (Q Grade). Please contact us with any questions.
- California Prop 65 Warning:
- WARNING: This product can expose you to chemicals including lead and lead compounds, and DEHP (a phthalate), which are known to the State of California to cause cancer and birth defects or other reproductive harm. Go to P65Warnings.ca.gov
$600.00Was: $975.00 -

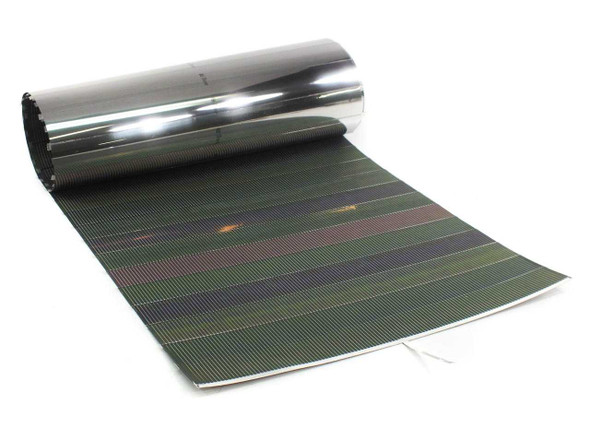

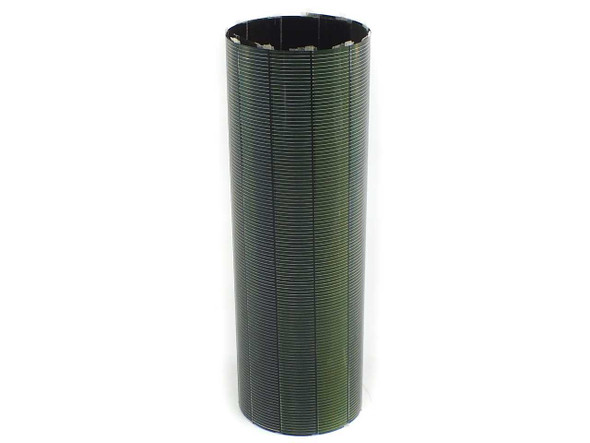

Solopower SP1 CIGS Raw Solar Cell String 60-Cell 40-50W 14.5x82in Flexible SS
Solopower
$64.00Was: $125.00Solopower SP1 CIGS Raw Solar Cell String 60-Cell 40-50W 14.5x82in Flexible SSRaw unencapsulated CIGS solar cell string manufactured by Solopower. Flexible stainless steel substrate rated 40–50W...52352- SKU:
- 52352
- Availability:
- Usually ships within 1-2 business days.
- Weight:
- 5.00 LBS
- Data Sheet:
- Solopower SP1 Solar Panel Data Sheet
- Brand:
- SoloPower
- Model:
- SP1
- MPN:
- SP1
- Type:
- Raw Unencapsulated CIGS Solar Cell String
- SKU:
- 52352
- Number of Cells:
- 60
- Cell Technology:
- CIGS (Copper Indium Gallium Selenide)
- Substrate Material:
- Flexible Stainless Steel
- Encapsulation:
- None – Raw/Unencapsulated
- String Dimensions:
- 14.5 in W x 82 in L x 1/32 in thick
- Rolled Diameter:
- 4 inches or less
- Maximum Power Output:
- 40–50 Watts (approximate, varies by string)
- Maximum Voltage (Vmp):
- 17–19 Volts
- Maximum Current (Imp):
- 2.5–3 Amps
- Open Circuit Voltage (Voc):
- 27–29 Volts
- Connection Method:
- Double-sided conductive clear acrylic tape
- Flexibility:
- Flexible – can be rolled and cut to shape
- Cuttable:
- Yes – cuttable to size and shape
- Seller Notes:
- Raw unencapsulated 60-cell CIGS string. No encapsulant, frame, or junction box included.
- Country/Region of Manufacture:
- United States
- Application:
- DIY Solar, Research, Experimentation, Custom Panel Fabrication
- Compatible Tape:
- 3M 1182 double-sided acrylic conductive pressure sensitive tape
- Source:
- Solopower Portland factory, closed 2019
- Form Factor:
- Flexible Roll / Sheet
- Condition Notes:
- Solopower SP1 CIGS 60-cell solar string. New, unused, untested from 2019 Solopower Portland factory closure. Tested to produce power. Unencapsulated — no frame or junction box. Clean, no visible damage.
- California Prop 65 Warning:
- WARNING: This product can expose you to chemicals including lead and lead compounds, and DEHP (a phthalate), which are known to the State of California to cause cancer and birth defects or other reproductive harm. Go to P65Warnings.ca.gov
$64.00Was: $125.00 -
Solopower SP3 CIGS Flexible Thin Film Solar Cell 1W 0.45V 2A 127x95mm DIY
Solopower
$4.00Was: $8.00Solopower SP3 CIGS Flexible Thin Film Solar Cell 1W 0.45V 2A 127x95mm DIY The Solopower SP3 is a raw, unencapsulated CIGS (Copper Indium Gallium Selenide) thin-film solar cell built on a lightweight...49604- SKU:
- 49604
- Availability:
- Usually ships within 1-2 business days.
- Weight:
- 2.00 LBS
- Technical Paper:
- Solopower Solar Cells Technical Paper
- Brand:
- SoloPower
- Model:
- SP3
- MPN:
- SP3
- Type:
- CIGS Thin-Film Flexible Solar Cell
- SKU:
- 49604
- Seller Notes:
- Single raw uncoated CIGS cell; encapsulation required before outdoor use
- Country/Region of Manufacture:
- United States
- Cell Technology:
- CIGS (Copper Indium Gallium Selenide)
- Power Output:
- 1W (approx. in full sun)
- Voltage (Voc):
- 0.45V
- Current (Isc):
- ~2A
- Cell Length:
- 127mm (5 in)
- Cell Width:
- 95.25mm (3.75 in)
- Cell Thickness:
- 0.253mm (0.01 in)
- Substrate Material:
- Stainless Steel
- Flexibility:
- Flexible / Rollable
- Surface Coating:
- Uncoated — encapsulation required
- Form Factor:
- Thin Film Sheet
- Application:
- DIY Solar Projects, Experimental, Custom Solar Arrays
- Condition:
- New
- Condition Notes:
- Solopower SP3 CIGS flexible solar cell — new and unused. Tested at our facility: ~0.45V, ~2A, ~1W in full sun. Raw uncoated cell; encapsulation required for outdoor use. Stored in protective bag.
- California Prop 65 Warning:
- WARNING: This product can expose you to chemicals including lead and lead compounds, and DEHP (a phthalate), which are known to the State of California to cause cancer and birth defects or other reproductive harm. Go to P65Warnings.ca.gov
$4.00Was: $8.00 -
SoloPower CIGS 1.25W Flexible Thin Film Solar Cell 7.5x3.75in Unencapsulated
Solopower
$4.00Was: $8.00SoloPower CIGS 1.25W Flexible Thin Film Solar Cell 7.5x3.75in Unencapsulated Raw CIGS thin-film solar cell with 1.25 watts power output. This unencapsulated flexible cell is designed for integration...49603- SKU:
- 49603
- Availability:
- Usually ships within 1–2 business days.
- Weight:
- 0.10 LBS
- Technical Paper:
- Solopower Solar Cells Technical Paper
- Brand:
- SoloPower
- Model:
- CIGS Flexible Solar Cell
- MPN:
- 0918A001012601-00744B
- Type:
- CIGS Thin-Film Solar Cell
- SKU:
- 49603
- Power Output:
- 1.25 Watts
- Cell Technology:
- CIGS (Copper Indium Gallium Selenide)
- Cell Length:
- 190.5 mm (7.5 in)
- Cell Width:
- 95.25 mm (3.75 in)
- Cell Thickness:
- 0.253 mm (0.01 in)
- Substrate Material:
- Stainless Steel
- Flexibility:
- Flexible / Malleable
- Encapsulation:
- Unencapsulated – Raw Cell
- Weather Resistance:
- Must be encapsulated before outdoor/weather use
- Condition:
- New
- Application:
- DIY Solar Panels, Custom Solar Projects
- Country/Region of Manufacture:
- United States
- Seller Notes:
- Uncoated raw cell — must be encapsulated for outdoor use. Available in larger quantities.
- Condition Notes:
- New, unused SoloPower CIGS 1.25W flexible thin-film solar cell. Uncoated raw cell — must be encapsulated before outdoor use. Clean, undamaged. Available in larger quantities.
- California Prop 65 Warning:
- WARNING: This product can expose you to chemicals including lead and lead compounds, and DEHP (a phthalate), which are known to the State of California to cause cancer and birth defects or other reproductive harm. Go to P65Warnings.ca.gov
$4.00Was: $8.00 -
Nanosolar NanoCell 2.6W Flexible CIGS Solar Cell 0.45V 5.8A Aluminum DIY
Nanosolar
$5.00Was: $10.00Nanosolar NanoCell 2.6W Flexible CIGS Solar Cell 0.45V 5.8A Aluminum DIY Single CIGS thin-film solar cell rated at 2.6 watts. Features a flexible aluminum substrate and operates across a temperature...49602- SKU:
- 49602
- Availability:
- Usually ships within 1-2 business days.
- Weight:
- 0.60 LBS
- Specifications:
- Nanosolar Nanocell Preliminary Cell Spec Sheet
- Brand:
- Nanosolar
- Model:
- NanoCell
- MPN:
- NanoCell
- Type:
- CIGS Flexible Thin-Film Solar Cell
- SKU:
- 49602
- Rated Power:
- 2.6 Watts per cell
- Vmpp (Maximum Power Voltage):
- 0.45 V
- Impp (Maximum Power Current):
- 5.8 A
- Voc (Open Circuit Voltage):
- 0.61 V
- Isc (Short Circuit Current):
- 6.7 A
- Cell Technology:
- CIGS (Copper Indium Gallium Selenide)
- Substrate / Base Material:
- Thin flexible aluminum sheet
- Cell Dimensions:
- 165mm x 135mm x 0.4mm (6.5 x 5.3 x 0.02 in)
- Surface Finish:
- Raw / Uncoated
- Connection Method:
- Conductive adhesive, epoxy, or double-sided conductive tape
- Condition:
- New
- Country/Region of Manufacture:
- United States
- Seller Notes:
- Single cell, new and unsealed from sealed carton. Multiple quantities available.
- Condition Notes:
- Nanosolar NanoCell 2.6W CIGS flexible solar cell — new and unused, stored in sealed airtight cartons with desiccant. Active surface and aluminum substrate are clean and undamaged. Multiple quantities available.
- California Prop 65 Warning:
- WARNING: This product can expose you to chemicals including lead and lead compounds, and DEHP (a phthalate), which are known to the State of California to cause cancer and birth defects or other reproductive harm. Go to P65Warnings.ca.gov
$5.00Was: $10.00 -
Solopower CIGS Flexible Solar Cell 1.25W 7.5x3.75in Stainless Steel Raw Lot 10
Solopower
$25.00Was: $50.00Solopower CIGS Flexible Solar Cell 1.25W 7.5x3.75in Stainless Steel Raw Lot 10 This listing is for a pack of 10 Solopower CIGS (Copper Indium Gallium Selenide) flexible thin-film solar cells built...49594- SKU:
- 49594
- Availability:
- Usually ships within 1–2 business days.
- Weight:
- 0.40 LBS
- Technical Paper:
- Solopower Solar Cells Technical Paper
- Brand:
- SoloPower
- Model:
- CIGS Flexible Solar Cell
- Type:
- Thin-Film CIGS Flexible Solar Cell
- SKU:
- 49594
- Power Output:
- 1.25 Watts per cell
- Cell Voltage:
- 0.045 to 0.5 Volts (approx. 2A under full sun)
- Cell Length:
- 190.5 mm (7.5 in)
- Cell Width:
- 95.25 mm (3.75 in)
- Cell Thickness:
- 0.253 mm (0.01 in)
- Substrate Material:
- Stainless Steel
- Photovoltaic Technology:
- CIGS (Copper Indium Gallium Selenide)
- Surface Finish:
- Uncoated / Raw — requires encapsulation
- Polarity — Top Side:
- Negative
- Polarity — Bottom Side:
- Positive
- Quantity:
- 10 cells per lot
- Cuttable:
- Yes — can be cut into smaller cells without shorting
- Flexibility:
- Highly flexible and malleable
- Condition:
- New
- Seller Notes:
- Pack of 10 raw uncoated CIGS cells. Encapsulation required for outdoor use.
- Country/Region of Manufacture:
- United States
- Application:
- DIY solar projects, research, prototyping, education
- Condition Notes:
- Solopower CIGS flexible stainless steel solar cells — new old stock, unused, uncoated/raw as manufactured. Clean, no damage. Pack of 10. Please view our photos and contact us with any questions.
- California Prop 65 Warning:
- WARNING: This product can expose you to chemicals including lead and lead compounds, and DEHP (a phthalate), which are known to the State of California to cause cancer and birth defects or other reproductive harm. Go to P65Warnings.ca.gov
$25.00Was: $50.00 -
Solopower SP3 CIGS Flexible Solar Cell 1.25W 5x3.75in Stainless Steel Qty 10
Solopower
$22.00Was: $40.00Solopower SP3 CIGS Flexible Solar Cell 1.25W 5x3.75in Stainless Steel Qty 10 Lot of 10 uncoated CIGS thin-film flexible solar cells. Each cell measures 5 x 3.75 inches on stainless steel substrate...49593- SKU:
- 49593
- Availability:
- Usually ships within 1-2 business days.
- Weight:
- 0.40 LBS
- Technical Paper:
- Solopower Solar Cells Technical Paper
- Brand:
- SoloPower
- Model:
- SP3
- MPN:
- SP3
- Type:
- Flexible CIGS Thin-Film Solar Cell
- SKU:
- 49593
- Quantity:
- 10 cells per lot
- Cell Technology:
- CIGS (Copper Indium Gallium Selenide)
- Power Output (per cell):
- ~1.25W (approx. 1W measured in full sun)
- Voltage Output (per cell):
- ~0.45V
- Current Output (per cell):
- ~2A
- Cell Length:
- 127mm (5 inches)
- Cell Width:
- 95.25mm (3.75 inches)
- Cell Thickness:
- 0.253mm (0.01 inches)
- Substrate Material:
- Stainless Steel
- Flexibility:
- Highly Flexible
- Coating Status:
- Uncoated — encapsulation required for outdoor use
- Application:
- DIY Solar, Experimentation, Research, Prototyping
- Seller Notes:
- Lot of 10 raw uncoated CIGS cells. Must be encapsulated for outdoor/weather use.
- Country/Region of Manufacture:
- United States
- Form Factor:
- Flexible Sheet
- Condition:
- New
- Condition Notes:
- Solopower SP3 CIGS flexible solar cells — new and unused. Raw/uncoated; encapsulation required for outdoor use. Staff-tested: ~0.45V, ~2A (~1W) per cell in full sun. No manufacturer specs published. Lot of 10.
- California Prop 65 Warning:
- WARNING: This product can expose you to chemicals including lead and lead compounds, and DEHP (a phthalate), which are known to the State of California to cause cancer and birth defects or other reproductive harm. Go to P65Warnings.ca.gov
$22.00Was: $40.00 -
Solopower CIGS Flexible Solar Cell 1.25W Stainless Steel 0.45V 2A+ Lot of 100
Solopower
$139.00Was: $275.00Solopower CIGS Flexible Solar Cell 1.25W Stainless Steel 0.45V 2A+ Lot of 100 This is a lot of 100 Solopower thin-film CIGS solar cells deposited on a lightweight stainless steel substrate. These...48973- SKU:
- 48973
- Availability:
- Usually ships within 1–2 business days.
- Weight:
- 1.50 LBS
- Technical Paper:
- Solopower Solar Cells Technical Paper
- Brand:
- SoloPower
- Model:
- Flexible CIGS Solar Cell
- Type:
- Thin-Film CIGS Flexible Solar Cell
- SKU:
- 48973
- Power Output:
- 1.25 Watts per cell
- Open Circuit Voltage (Voc):
- Approx. 0.45V (tested, full sun)
- Short Circuit Current (Isc):
- Over 2 Amps (tested, full sun)
- Cell Technology:
- CIGS (Copper Indium Gallium Selenide)
- Substrate Material:
- Stainless Steel
- Flexibility:
- Highly flexible / malleable
- Encapsulation:
- None — raw/uncoated; requires encapsulation
- Cell Length:
- 190.5 mm (7.5 in)
- Cell Width:
- 95.25 mm (3.75 in)
- Cell Thickness:
- 0.253 mm (0.01 in)
- Quantity in Lot:
- 100 cells
- Country/Region of Manufacture:
- United States
- Seller Notes:
- Lot of 100 raw unencapsulated cells; no encapsulant or frame included
- Application:
- DIY solar, R&D, prototyping, flexible solar arrays
- Condition:
- New — unused factory stock, unencapsulated
- Condition Notes:
- New unused factory stock. Raw unencapsulated CIGS cells acquired from Solopower at closure. Tested at approx. 0.45V, 2A+ in full sun. Must be encapsulated before weather exposure. Lot of 100 cells.
- California Prop 65 Warning:
- WARNING: This product can expose you to chemicals including lead and lead compounds, and DEHP (a phthalate), which are known to the State of California to cause cancer and birth defects or other reproductive harm. Go to P65Warnings.ca.gov
$139.00Was: $275.00 -
Solopower CIGS Solar Cells 0.5V 14.5x1.5in Flexible Stainless Steel Lot 100
Solopower
$150.00Was: $300.00Solopower CIGS Solar Cells 0.5V 14.5x1.5in Flexible Stainless Steel Lot 100 Lot of 100 raw CIGS thin-film solar cells manufactured by Solopower. Each cell measures 14.5 x 1.5 inches on flexible...48017- SKU:
- 48017
- Availability:
- Usually ships within 1–2 business days.
- Weight:
- 3.00 LBS
- Technical Paper:
- Solopower Solar Cells Technical Paper
- Brand:
- SoloPower
- Model:
- SL1 Cell
- MPN:
- SL1
- Type:
- CIGS Thin-Film Solar Cell
- SKU:
- 48017
- Quantity in Lot:
- 100 cells
- Cell Voltage:
- 0.5V (measured)
- Estimated Power per Cell:
- ~1.25 to 1.5 Watts
- Estimated Current per Cell:
- ~2.5 to 3 Amps
- Cell Length:
- 368.5mm (14.5 inches)
- Cell Width:
- 38.1mm (1.5 inches)
- Cell Thickness:
- 0.253mm (0.01 inches)
- Substrate Material:
- Flexible Stainless Steel
- Solar Cell Technology:
- CIGS (Copper Indium Gallium Selenide)
- Flexibility:
- Semi-Flexible
- Surface Coating:
- Raw / Uncoated — requires encapsulation
- Compatible With:
- Solopower SL1 Solar Panel (60 cells per panel)
- Application:
- DIY Solar Panel Construction, R&D, Prototyping
- Condition:
- New — New old stock from Solopower plant, San Jose CA
- Country/Region of Manufacture:
- United States
- Seller Notes:
- Lot of 100 raw unencapsulated CIGS cells. Must be encapsulated before outdoor use.
- Condition Notes:
- New old stock Solopower CIGS solar cells, lot of 100. Came directly from Solopower plant, San Jose CA. Measured at 0.50V per cell. Raw/uncoated — must be encapsulated before outdoor use. No visible defects. Please contact us with any questions.
- California Prop 65 Warning:
- WARNING: This product can expose you to chemicals including lead and lead compounds, and DEHP (a phthalate), which are known to the State of California to cause cancer and birth defects or other reproductive harm. Go to P65Warnings.ca.gov
$150.00Was: $300.00 -
Nanosolar NanoCell CIGS MWT Flexible Solar Cells 2.6W 0.45V 5.8A Lot of 1000
Nanosolar
$1,100.00Was: $2,200.00Nanosolar NanoCell CIGS MWT Flexible Solar Cells 2.6W 0.45V 5.8A Lot of 1000 Thin-film CIGS flexible solar cells on semi-flexible aluminum substrates with MWT (Metal Wrap Through) interconnection...47025- SKU:
- 47025
- Availability:
- Usually ships within 1–2 business days.
- Weight:
- 51.00 LBS
- Specifications Sheet:
- Nanosolar Nanocell Preliminary Cell Spec Sheet
- Brand:
- Nanosolar
- Model:
- NanoCell
- MPN:
- NanoCell
- Type:
- CIGS MWT Flexible Thin-Film Solar Cell
- SKU:
- 47025
- Lot Quantity:
- 1000 cells
- Total Lot Power Output:
- 2,600 Watts (2.6 kW)
- Power per Cell (Rated):
- 2.6 W
- Vmpp (Max Power Voltage):
- 0.45 V
- Impp (Max Power Current):
- 5.8 A
- Voc (Open Circuit Voltage):
- 0.61 V
- Isc (Short Circuit Current):
- 6.7 A
- Cell Technology:
- CIGS (Copper Indium Gallium Selenide)
- Connection Technology:
- MWT – Metal Wrap Through
- Cell Structure:
- Semi-flexible aluminum substrate, uncoated
- Cell Length:
- 165 mm (6.5 in)
- Cell Width:
- 135 mm (5.3 in)
- Cell Thickness:
- 0.4 mm (0.02 in)
- Seller Notes:
- Lot of 1000 cells on original carrier, new and unused, stored with desiccant
- Country/Region of Manufacture:
- United States
- Condition:
- New – Unused, stored in sealed cartons with desiccant
- Application:
- DIY solar panel fabrication, flexible PV module assembly
- Compatible Assembly Methods:
- 3M conductive tape, battery tab spot welder, ultrasonic welder
- Condition Notes:
- Nanosolar NanoCell CIGS MWT solar cells, new and unused. Stored in sealed cartons with desiccant. No wear or use. Lot of 1000 cells. Please view photos and contact us with questions.
- California Prop 65 Warning:
- WARNING: This product can expose you to chemicals including lead and lead compounds, and DEHP (a phthalate), which are known to the State of California to cause cancer and birth defects or other reproductive harm. Go to P65Warnings.ca.gov
$1,100.00Was: $2,200.00 -
Nanosolar NanoCell 6000ct 15600W CIGS MWT Flexible Solar Cells 2.6W 0.45V
Nanosolar
$3,500.00Was: $7,000.00Nanosolar NanoCell 6000ct 15600W CIGS MWT Flexible Solar Cells 2.6W 0.45V Full carton of 6,000 CIGS thin-film flexible solar cells rated at 2.6W per cell. These copper indium gallium selenide cells...47024- SKU:
- 47024
- Availability:
- Usually ships within 3-5 business days; large carton shipment — contact us for freight quote.
- Weight:
- 350.00 LBS
- Specifications Sheet:
- Nanosolar NanoCell Preliminary Cell Spec Sheet (NSC-NS NanoCell-CDS_Preliminary_EN.v2)
- Brand:
- Nanosolar
- Model:
- NanoCell
- MPN:
- NS NanoCell
- Type:
- CIGS Flexible Thin-Film Solar Cell
- SKU:
- 47024
- Quantity per Lot:
- 6,000 cells
- Total Power (Lot):
- 15,600 Watts (15.6 kW)
- Rated Power per Cell:
- 2.6 Watts
- Power Tolerance:
- -10% to +10% (Pmpp and Voc/Isc/Vmpp/Impp)
- Vmpp (V):
- 0.45 V
- Impp (A):
- 5.8 A
- Voc (V):
- 0.61 V
- Isc (A):
- 6.7 A
- Temp Coefficient Pmax:
- -0.40 %/K
- Temp Coefficient Voc:
- -0.30 %/K
- Temp Coefficient Isc:
- +0.01 %/K
- Max System Voltage:
- 600V UL / 1000V IEC
- Cell Technology:
- CIGS (Copper Indium Gallium Selenide)
- Cell Design:
- MWT (Metal Wrap Through) Print2Power
- Substrate:
- Thin flexible aluminum sheet
- Cell Length:
- 165 mm (6.5 in)
- Cell Width:
- 135 mm (5.3 in)
- Cell Thickness:
- 0.4 mm (0.02 in)
- Condition:
- New – Unused, stored sealed with desiccant
- Country/Region of Manufacture:
- United States
- Seller Notes:
- Full carton of 6,000 cells. Stored in sealed cartons with desiccant.
- Application:
- DIY solar panels, R&D, photovoltaic experiments
- Series Fuse Rating:
- N/A
- Output Cables:
- N/A (raw cells, no cables)
- Output Terminal:
- N/A (raw cells, no pre-attached terminals)
- Condition Notes:
- Nanosolar NanoCell CIGS flexible solar cells — new and unused. Full 6,000-cell carton stored sealed with desiccant. No signs of use or wear. Please view photos and contact us with any questions.
- California Prop 65 Warning:
- WARNING: This product can expose you to chemicals including lead and lead compounds, and DEHP (a phthalate), which are known to the State of California to cause cancer and birth defects or other reproductive harm. Go to P65Warnings.ca.gov
$3,500.00Was: $7,000.00 -
Uni-Solar L-Strip Amorphous Solar Cell 7.5W 1.6V ePVL DIY Lot of 100
Uni-Solar
$280.00Was: $400.00Uni-Solar L-Strip Amorphous Solar Cell 7.5W 1.6V ePVL DIY Lot of 100 Box of 100 amorphous silicon solar cells manufactured by United Solar Ovonic. Each cell features solder tabs and a stainless steel...44046- SKU:
- 44046
- Availability:
- Usually ships within 1–2 business days.
- Weight:
- 34.00 LBS
- Brand:
- Uni-Solar (United Solar Ovonic)
- Model:
- L-Strip Amorphous Solar Cell
- MPN:
- DC-110827-048
- SKU:
- 44046
- Condition:
- New – New Old Stock (NOS)
- Seller Notes:
- Box of 100 solar cells with solder tabs. May have minor cosmetic blemishes.
- Cell Technology:
- Amorphous Silicon (a-Si) on Stainless Steel Substrate
- Maximum Power (Pmax):
- 7.573W avg (4.872W low / 7.757W high)
- Max Power Voltage (Vmpp):
- 1.60 V
- Max Power Current (Impp):
- 3.875 A
- Open Circuit Voltage (Voc):
- 2.05 V
- Short Circuit Current (Isc):
- 5.397 A avg (4.953 low / 5.446 high)
- Cell Efficiency:
- 6–7%
- Cell Size:
- 14" L x 10" W (35.56 cm x 25.4 cm)
- Quantity per Box:
- 100 cells
- Positive Connection:
- Two protruding tips on cell edge
- Negative Connection:
- Entire back-side; solder tabs to back-edge strips
- Compatible With:
- Uni-Solar ePVL / PVL series solar panel assembly
- Application:
- DIY solar panels, battery charging, off-grid power projects
- Country of Manufacture:
- USA (Auburn Hills, Michigan)
- Provenance:
- 2012 United Solar Ovonic liquidation, main Michigan plant
- Condition Notes:
- These Uni-Solar L-Strip amorphous solar cells are new old stock (NOS) — manufactured by United Solar Ovonic and never assembled into panels. Individual cells may have minor cosmetic blemishes that differ from those shown in the photos, which depict
- California Prop 65 Warning:
- WARNING: This product can expose you to chemicals including lead and lead compounds, and DEHP (a phthalate), which are known to the State of California to cause cancer and birth defects or other reproductive harm. Go to P65Warnings.ca.gov
$280.00Was: $400.00 -
Solopower Flexible CIGS Solar Cell 1.25W 0.5V 14.5x1.5in Stainless Steel Lot 10
Solopower
$14.00Was: $30.00Solopower Flexible CIGS Solar Cell 1.25W 0.5V 14.5x1.5in Stainless Steel Lot 10 Solopower SL1 thin-film CIGS solar cells on stainless steel substrate. This lot contains 10 raw, unencapsulated...48010- SKU:
- 48010
- Availability:
- Usually ships within 1–2 business days.
- Weight:
- 0.40 LBS
- Technical Paper:
- See product page for Solopower Solar Cells Technical Paper PDF
- Brand:
- SoloPower
- Model:
- SL1 Cell
- MPN:
- SL1
- SKU:
- 48010
- Condition:
- New
- Seller Notes:
- Lot of 10 raw unencapsulated cells — must be encapsulated for outdoor use
- Cell Technology:
- CIGS (Copper Indium Gallium Selenide)
- Cell Type:
- Thin-Film Flexible
- Substrate Material:
- Stainless Steel
- Power Output (per cell):
- ~1.25W
- Voltage (Voc, measured):
- 0.50V
- Cell Length:
- 368.5mm (14.5 inches)
- Cell Width:
- 38.1mm (1.5 inches)
- Cell Thickness:
- 0.253mm (0.01 inches)
- Flexibility:
- Semi-Flexible
- Positive Terminal:
- Entire underside
- Negative Terminal:
- White bar on sun-facing side
- Encapsulation:
- None — raw cell, must be encapsulated for weather exposure
- Quantity in Lot:
- 10
- Compatible With:
- Solopower SL1 Solar Panels (60 cells per 75W panel)
- Country of Manufacture:
- USA
- Form Factor:
- Flexible Strip
- Condition Notes:
- New from manufacturer, lot of 10. Uncoated—needs encapsulation for outdoor use. No defects, inspected to standard. See photos.
- California Prop 65 Warning:
- WARNING: This product can expose you to chemicals including lead and lead compounds, and DEHP (a phthalate), which are known to the State of California to cause cancer and birth defects or other reproductive harm. Go to P65Warnings.ca.gov
$14.00Was: $30.00 -
Nanosolar NanoCell 2.6W Flexible CIGS Solar Cell 0.45V 5.8A Lot of 10 26W
Nanosolar
$16.10Was: $49.99Nanosolar NanoCell 2.6W Flexible CIGS Solar Cell 0.45V 5.8A Lot of 10 26W Lot of 10 flexible CIGS thin-film solar cells manufactured by Nanosolar. Each cell produces 2.6W at 0.45V and 5.8A, for a...47026- SKU:
- 47026
- Availability:
- Usually ships within 1–2 business days.
- Weight:
- 1.00 LBS
- Specifications:
- Nanosolar Nanocell Preliminary Cell Spec Sheet
- Brand:
- Nanosolar
- Model:
- NanoCell
- MPN:
- NanoCell 2.6W
- SKU:
- 47026
- Condition:
- New – Unused, stored sealed with desiccant
- Seller Notes:
- Lot of 10 individual CIGS solar cells; 26W total output
- Country of Manufacture:
- United States
- Form Factor:
- Flexible Sheet / Thin Film
- Solar Cell Technology:
- CIGS (Copper Indium Gallium Selenide)
- Substrate Material:
- Flexible Aluminum Sheet
- Power Output Per Cell:
- 2.6W
- Total Lot Power Output:
- 26W (10 cells)
- Voltage at MPP (Vmp):
- 0.45V
- Current at MPP (Imp):
- 5.8A
- Quantity in Lot:
- 10 cells
- Connection Method:
- Double-sided conductive tape recommended
- Storage:
- Airtight sealed cartons with desiccant
- Specifications Sheet:
- Nanosolar NanoCell Preliminary Cell Spec Sheet (see listing)
- Condition Notes:
- These Nanosolar NanoCell 2.6W flexible CIGS solar cells are new and unused. They are stored in airtight sealed cartons with desiccant. Please view our photo set and contact us if you have any questions.
- California Prop 65 Warning:
- WARNING: This product can expose you to chemicals including lead and lead compounds, and DEHP (a phthalate), which are known to the State of California to cause cancer and birth defects or other reproductive harm. Go to P65Warnings.ca.gov
$16.10Was: $49.99 -
Uni-Solar ePVL AA 7.5W 1.6V Amorphous Silicon Solar Cells L-Strip Tabbed Pack 10
Uni-Solar
$35.00Was: $70.00Uni-Solar ePVL AA 7.5W 1.6V Amorphous Silicon Solar Cells Pack of 10 This pack contains 10 Uni-Solar ePVL AA amorphous silicon solar cells from United Solar Ovonic's 2012 factory liquidation. Each...46411- SKU:
- 46411
- Availability:
- Usually ships within 1-2 business days.
- Weight:
- 5.00 LBS
- Brand:
- Uni-Solar (United Solar Ovonic)
- Model:
- ePVL AA Series L-Strip
- MPN:
- DH-110806-062
- SKU:
- 46411
- Condition:
- New – Old Stock
- Seller Notes:
- New old stock from 2012 United Solar Ovonic factory liquidation
- Cell Grade:
- AA
- Cell Type:
- Amorphous Silicon (a-Si)
- Substrate Material:
- Stainless Steel
- Maximum Power (Pmax):
- 7.5 W per cell
- Max Power Voltage (Vmpp):
- 1.60 V
- Max Power Current (Impp):
- 3.875 A
- Open Circuit Voltage (Voc):
- 2.05 V
- Short Circuit Current (Isc):
- 5.397 A
- Cell Efficiency:
- 6–7%
- Cell Size:
- 14" L x 10" W (35.56 cm x 25.4 cm)
- Quantity:
- 10 cells per pack
- Compatible With:
- Uni-Solar PVL and ePVL series systems
- Connection Type:
- Tabbed – positive tabs at tips, negative back
- Country of Manufacture:
- USA – Auburn Hills, Michigan
- Form Factor:
- Flexible flat L-strip
- Provenance:
- 2012 United Solar Ovonic factory liquidation, Auburn Hills MI
- Condition Notes:
- New old stock Uni-Solar ePVL AA amorphous silicon solar cells from 2012 liquidation, unopened and stored properly. Electrically intact and ready for DIY solar panel assembly.
- Type:
- Amorphous Silicon Solar Cell
- Quantity per Pack:
- 10 cells
- Cell Dimensions:
- 14 in. L × 10 in. W (35.56 cm × 25.4 cm)
- California Prop 65 Warning:
- WARNING: This product can expose you to chemicals including lead and lead compounds, and DEHP (a phthalate), which are known to the State of California to cause cancer and birth defects or other reproductive harm. Go to P65Warnings.ca.gov
$35.00Was: $70.00 -
Solopower SP3 CIGS Flexible Solar Cell 1.25W 0.45V 127x95mm Lot of 100
Solopower
$150.00Was: $300.00Solopower SP3 CIGS Flexible Solar Cell 1.25W 0.45V 127x95mm Lot of 100The Solopower SP3 is a thin-film CIGS (Copper Indium Gallium Selenide) solar cell built on a flexible stainless steel substrate...48724- SKU:
- 48724
- Availability:
- In stock and ready to ship within 1-2 business days.
- Weight:
- 1.50 LBS
- Technical Paper:
- http://www.recycledgoods.com/content/solopower/solopower-cigs-solar-cells-technical-paper.pdf
- Brand:
- SoloPower
- Model:
- SP3
- MPN:
- SP3
- SKU:
- 48724
- Condition:
- New – Unused
- Seller Notes:
- Lot of 100 raw uncoated CIGS solar cells; encapsulation required before weathering
- Cell Technology:
- CIGS (Copper Indium Gallium Selenide)
- Substrate:
- Stainless Steel (flexible)
- Power Output (per cell):
- ~1.25W
- Voltage (per cell):
- ~0.45V
- Cell Length:
- 127mm (5 inches)
- Cell Width:
- 95.25mm (3.75 inches)
- Cell Thickness:
- 0.253mm (0.01 inches)
- Quantity:
- 100 cells per lot
- Form Factor:
- Flexible thin film
- Application:
- DIY solar panel fabrication, wearable power, portable devices
- Encapsulation Required:
- Yes – raw uncoated substrates
- Country of Manufacture:
- USA
- Condition Notes:
- These Solopower SP3 CIGS flexible solar cells are new and unused. The cells are supplied as raw, uncoated thin-film substrates on flexible stainless steel. Encapsulation is required before any outdoor or weather-exposed deployment.
- Type:
- CIGS Thin-Film Flexible Solar Cell
- Substrate Material:
- Stainless Steel (flexible)
- Power Output per Cell:
- 1.25W
- Voltage per Cell:
- 0.45V
- Cell Dimensions:
- 127mm × 95.25mm × 0.253mm
- Cell Dimensions (inches):
- 5 × 3.75 × 0.01 inches
- California Prop 65 Warning:
- WARNING: This product can expose you to chemicals including lead and lead compounds, and DEHP (a phthalate), which are known to the State of California to cause cancer and birth defects or other reproductive harm. Go to P65Warnings.ca.gov
$150.00Was: $300.00
