Uni-Solar

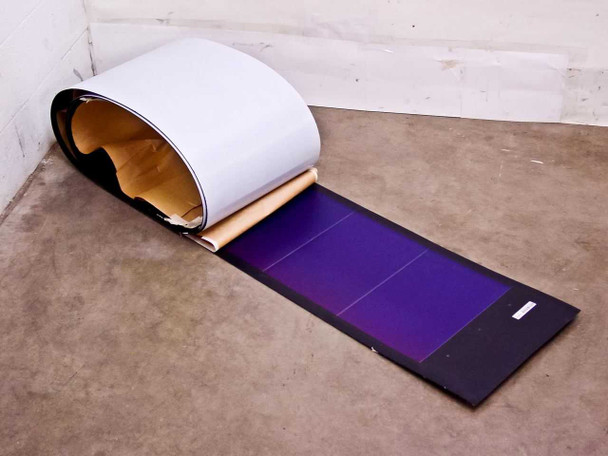

Uni-Solar PVL-120 120 Watt 24 Volt Flexible Amorphous Solar Panel 4" Wires BIPV

(No reviews yet) Write a Review
SKU:
44137
MPN:
PVL-120B
Condition:
New
Shipping:
Calculated at Checkout
  • Uni-Solar PVL-120 120 Watt 24 Volt Flexible Amorphous Solar Panel 4" Wires BIPV
  • Uni-Solar PVL-120 120 Watt 24 Volt Flexible Amorphous Solar Panel 4" Wires BIPV
  • Uni-Solar PVL-120 120 Watt 24 Volt Flexible Amorphous Solar Panel 4" Wires BIPV
  • Uni-Solar PVL-120 120 Watt 24 Volt Flexible Amorphous Solar Panel 4" Wires BIPV
  • Uni-Solar PVL-120 120 Watt 24 Volt Flexible Amorphous Solar Panel 4" Wires BIPV
$136.00
Was: $250.00

Description

Uni-Solar PVL-120 120 Watt 24 Volt Flexible Amorphous Solar Panel 4" Wires BIPV. These are top tier finished panels. Unisolar made them this way for a specific client. These are also Grid Tie UL 1703 Listed for Systems up to 600 VDC. Which means they were made to last 20 Years. See brochure.

Uni-Solar panels are lightweight, flexible and directly adhere to many roofing surfaces avoiding penetrations. They are also Category 3 (130 MPH) Hurricane uplift resistant and installed with no hardware. Each cell is connected to each other via bypass diodes. Therefore, if one cell is shaded or soiled, only the power output of this one shaded cell is lost - usually less than 4.5%.These panels are less than 1/5th the weight of crystalline solar panels and are designed for membrane and metal roofing system applications.


Electrical Stats:
  • Maximum Power (Pmax): 120 Watts
  • Nominal Operating Voltage: 24 Volts
  • Max Power Voltage (Vmpp): 33 Volts
  • Max Power Current (Impp): 4.1 Amps
  • Open Circuit Voltage (Voc): 46 Volts
  • Short Circuit Current (Isc): 5.1 Amps
  • Max System Voltage: 600 Volts
  • Module Efficiency: 6.2%
  • Lightweight & Flexible
  • Easy Peel & Stick Application
  • Virtually Unbreakable (No Glass)
  • Shadow & High Heat Tolerant
  • Frame Material: Frameless
  • Module Connector: None (Solder Point Connection Only)
  • Bonding adhesive factory-installed on the back of the laminate
  • Panel Weight: 16 Pounds
  • Panel Dimensions: Individual panel: 216 x 15 7/16 x 0.2 (18 Feet Long)
  • Bonding adhesive factory-installed on the back of the laminate

  • Uni-Solar panels are lightweight, flexible and directly adhere to many roofing surfaces avoiding penetrations. Each cell is connected to each other via bypass diodes. Therefore, if one cell is shaded or soiled, only the power output of this one shaded cell is lost - usually less than 4.5%.These panels are less than 1/5th the weight of crystalline solar panels and are designed for membrane and metal roofing system applications. Here is a video with many examples.

    UNISOLAR PVL-120 Solar Power Amorphous Flexible PV Panels - YouTube

    Video will open in a new window



    Condition: Open Box

    These brand new made in USA solar panels are packed and stored in the factory carton of 30 panels. The Unisolar manufacturing and distribution facility was liquidated in 2012 and these panels came direct from Unisolar. We do have various brochures and installation guides produced by Unisolar available we can offer you if requested. Uni-solar peel and stick flexible panels are no longer made and are getting more rare by the day.
