Description

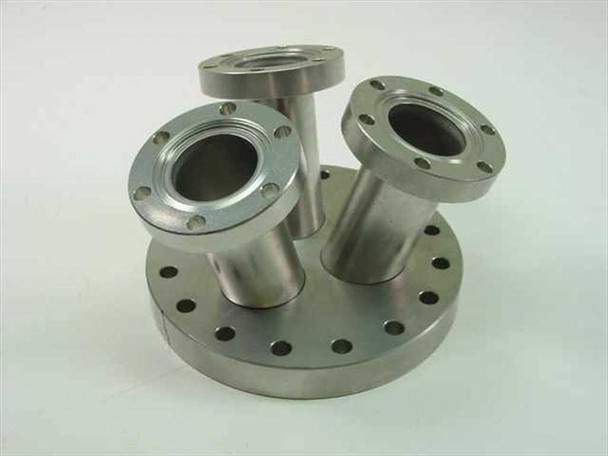

Inch ID Detailed description Large flange: OD 156 mm ID 115 mm (for the Cu seal) Thickness 20 mm. 16 holes on a 65 mm radius. Hole dia 8.3 mm. Small flanges: OD 69.3 mm ID 34.7 mm Thickness 12.6 mm 6 Holes on a 26.4 mm radius Hole dia 6.7 mm The three pipes are tilted out at 16.5
