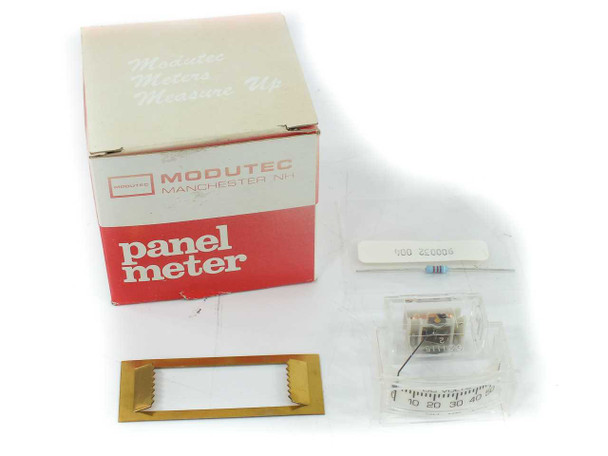

Modutec ME DVV 050 U Panel Meter 0~50 VDC 1.8-in x 0.75-in Mounting Slot
0-50 V DC 9.1 kohm resistor included Movement resistance ~ 1 kohm Mounts in a 1.8 x 0.75 hole Depth behind panel 1.75 The basic meter movement draws approximately 5 ma at full scale. It requires approximately 5.5 volts to full scale. When the 9.1k ohm supplied resistor is connected in series with the meter movement the meter displays full scale with 50 volts DC applied. This then matches the 50 volt scale on the meter.
Condition: Open Box
This DC panel meter is new from the manufacturer, but could have been stored for a long time or past its expiration date, or is out of its original packaging. Please view our photo set and contact us if you have any questions.
