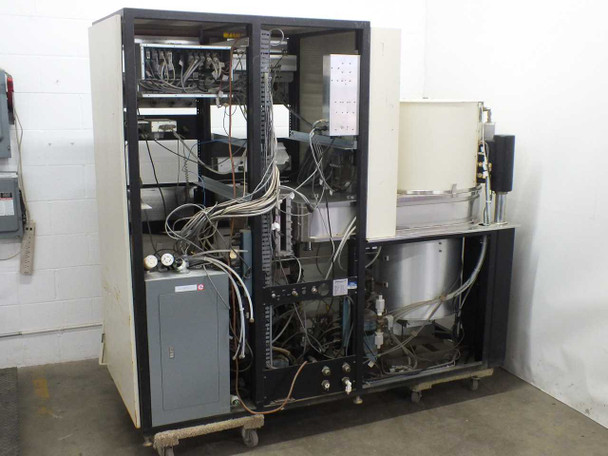

Innotec DS-28C High Vacuum Batch Sputtering System Chamber - As Is / For Parts

(No reviews yet) Write a Review
SKU:
40888
MPN:
DS-28C
Condition:
Used
Weight:
1,800.00 LBS
Shipping:
Calculated at Checkout
  • Innotec DS-28C High Vacuum Batch Sputtering System Chamber - As Is / For Parts
  • Innotec DS-28C High Vacuum Batch Sputtering System Chamber - As Is / For Parts
  • Innotec DS-28C High Vacuum Batch Sputtering System Chamber - As Is / For Parts
  • Innotec DS-28C High Vacuum Batch Sputtering System Chamber - As Is / For Parts
  • Innotec DS-28C High Vacuum Batch Sputtering System Chamber - As Is / For Parts
  • Innotec DS-28C High Vacuum Batch Sputtering System Chamber - As Is / For Parts
  • Innotec DS-28C High Vacuum Batch Sputtering System Chamber - As Is / For Parts
  • Innotec DS-28C High Vacuum Batch Sputtering System Chamber - As Is / For Parts
  • Innotec DS-28C High Vacuum Batch Sputtering System Chamber - As Is / For Parts
  • Innotec DS-28C High Vacuum Batch Sputtering System Chamber - As Is / For Parts
  • Innotec DS-28C High Vacuum Batch Sputtering System Chamber - As Is / For Parts
  • Innotec DS-28C High Vacuum Batch Sputtering System Chamber - As Is / For Parts
  • Innotec DS-28C High Vacuum Batch Sputtering System Chamber - As Is / For Parts
  • Innotec DS-28C High Vacuum Batch Sputtering System Chamber - As Is / For Parts
  • Innotec DS-28C High Vacuum Batch Sputtering System Chamber - As Is / For Parts
  • Innotec DS-28C High Vacuum Batch Sputtering System Chamber - As Is / For Parts
  • Innotec DS-28C High Vacuum Batch Sputtering System Chamber - As Is / For Parts
  • Innotec DS-28C High Vacuum Batch Sputtering System Chamber - As Is / For Parts
  • Innotec DS-28C High Vacuum Batch Sputtering System Chamber - As Is / For Parts
  • Innotec DS-28C High Vacuum Batch Sputtering System Chamber - As Is / For Parts
  • Innotec DS-28C High Vacuum Batch Sputtering System Chamber - As Is / For Parts
$5,976.00
Was: $25,000.00

Description

High Vacuum Batch Sputtering System Chamber - As Is / For Parts

  • Power rating: 208 VAC, Phase-3, 60 Amps, 60 Hz
  • Burton Transformer, SPEC # 16845. PRI: 208 / 240 VAC, SEC: 117 VAC, 1.5 kVA


    • Components inside/attached to chamber:

  • MEIVAC Vari-Q Throttle Valve VQ-6-ASA-T-PA
  • QTY = 1: ITT Jennings CVCJ-1000-3S, 7-1000PF, 3000Volts
  • QTY = 1: ITT Jennings CSVF-500-000, 12-500PF-10KV
  • QTY = 1: ITT Jennings CVDD-1000-15S, 25-1000PF-15KV
  • QTY = 1: ITT Jennings CVDD-500-15S, 20-500PF-15KV
  • QTY = 1: MKS Mass Flow Meter 1279A22CR1BV
  • Upper chamber dimension: appx 27" Diameter x 17" Tall
  • Lower chamber dimension: appx 21" Diameter x 20" Tall

    • Electrical Components:

  • QTY = 1: DISON Technologies PWP AMC068 / CCA AMC069 Controller Card/Board
  • QTY = 1: Innotec Voltage Panel Meter
  • QTY = 2: Innotec AMT Panel Controller
  • QTY = 1: Innotec Hoist Control Panel
  • QTY = 2: RF Blower Incident & Reflected Power Meters, model # 7900006010
  • Superior Electric Stepping Motor, Type: SS50G20
    • Overall Dimensions: 80" x 47" x 77" -- 1800 LBS
    • This item will require freight shipping. Please contact us for a freight shipping quote, to arrange local pickup, or to schedule a viewing at our facility.



    Condition: For Parts or Not Working

    This Innotec DS-28C High Vacuum Batch Sputtering System Chamber is not complete and being sold for refurbishment or as a spare parts machine. It came from an R&D fab who no longer needed it. Please view our photo set and contact us with any questions.
