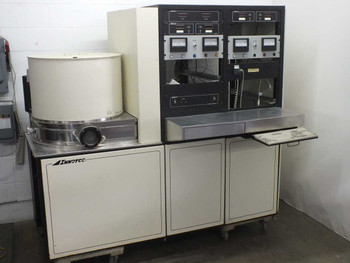

Innotec DS-28C High Vacuum Batch Sputtering System 208V 3Ph 60A For Parts

Innotec

SKU:

40888

Availability:

This item requires freight shipping. Please contact us for a freight quote or to arrange local pickup or a facility viewing.

Weight:

1,800.00 LBS

Brand:

Innotec Group Inc.

Model:

DS-28C

MPN:

260730

Type:

High Vacuum Batch Sputtering System

SKU:

40888

Condition:

As-Is / For Parts or Not Working

Seller Notes:

Sold for parts/refurbishment. Not complete. Includes listed sub-components.

Country/Region of Manufacture:

United States

Power Requirements:

208 VAC, 3-Phase, 60 Amps, 60 Hz

Voltage:

208 VAC

Phase:

3-Phase, 5-Wire

Current Rating:

60 Amps

Frequency:

60 Hz

Application / Use Case:

Thin Film PVD Sputtering, Semiconductor, R&D Fabrication

Upper Chamber Dimensions:

Approx. 27" Diameter x 17" Tall

Lower Chamber Dimensions:

Approx. 21" Diameter x 20" Tall

Overall Dimensions:

80" x 47" x 77"

Transformer:

Burton SPEC #16845, 208/240V PRI, 117V SEC, 1.5 kVA

Throttle Valve:

MEVAC Vari-Q VQ-6-ASA-T-PA

Vacuum Capacitor 1:

ITT Jennings CVCJ-1000-3S, 7-1000PF, 3000V

Vacuum Capacitor 2:

ITT Jennings CSVF-500-0010, 12-500PF, 10KV

Vacuum Capacitor 3:

ITT Jennings CVDD-1000-15S, 25-1000PF, 15KV

Vacuum Capacitor 4:

ITT Jennings CVDD-500-15S, 20-500PF, 15KV

Mass Flow Meter:

MKS 1279A22CR1BV

Controller Card:

DISON Technologies PWP AMC068 / CCA AMC069

RF Power Meters:

Incident & Reflected RF Power Meters, Model 7900006010

Stepping Motor:

Superior Electric SS50G20

Form Factor:

Freestanding Cabinet System on Casters

Condition Notes:

Innotec DS-28C High Vacuum Batch Sputtering System sold as-is for parts or refurbishment. Not complete, not tested, not guaranteed functional. Came from an R&D fab. Sub-components remain installed. Freight shipping required — contact us for a quote.
