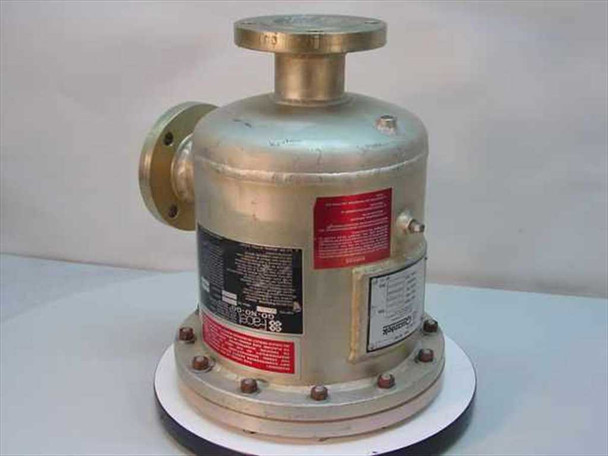

Known as go-no-go fuel monitors. Used for maximum water removal, solids holding capacity to assure clean dry fuel. The Facet Fuel-Gard monitor cartridge performs three jobs to assure clean, dry fuel. It absorbs free and emulsified water to less than 2 ppm, removes ultra-fine solids even when surfactants and fuel additives are present and shuts down system flow when hit with a localized slug of water. It is designed to flow from the outside to inside at a rate of 1 gallon (3.79 liters) per lineal inch with 2 micron nominal filtration.
Remove water from fuel used for filtration applications which require clean fuel.
Housing fitted with brand new fuel filters inside.
These list with the filters for over $3,500 each!
Flange OD = 7.5 ID = 3.0
Bottom Plate: 15 Diameter
Flow rate: 200 GPM
