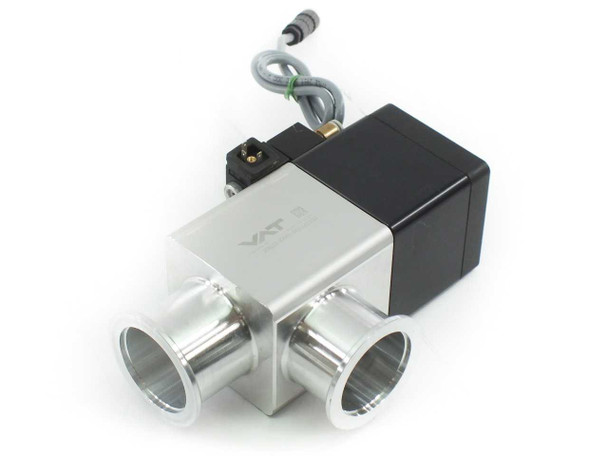

VAT 29032-KA41-0111 DN40KF Angle Valve with Soft-Pump 24 VDC Control Voltage
From the manufacturer:
- Inside diameter (ID) in mm (inch) 40 (1 1/2")
- Flange ISO-KF DN40KF (compatible with ISO 2861 T1)
- Body material Aluminum
- Actuator Pneumatic actuator with position indicator with solenoid valve single acting closing spring
- Solenoid Yes
- Position indicator Yes
- Pressure min. 1•10-8 mbar
- Pressure max. 1.2 bar (abs)
- Feedthrough Shaft feedthrough, Bellows
- Sealhead Description FKM (VITON®)
- Sealing materials FKM (VITON®)
- Molecular flow conductance ls-1 45
- Max. differential pressure closed position in bar 1.2
- Max. pressure on seat side during opening in bar 1
- Compressed air pressure max. in bar 8
- Compressed air pressure min. in bar 4
- Volume of air cylinder in l 0.035
- Closing or opening time in sec. 0.5
- Valve body temperature max. in °C 150
- Actuator temperature max. in °C 120
- Position Indicator temp. max. in °C 80
- Control valve temperature max. in °C 80
- Weight in kg / lbs 1.4 / 3.09
Condition:
This item has been inspected and appears to be in good condition. It was pulled from a working environment where it was in use and functional.
