Uni-Solar ePVL-144T 144 Watt 24 Volt Brand New PowerBond Amorphous Solar Panel with MC4 Connectors

This is the narrower version of the PVL-144 and are rare and hard to find.

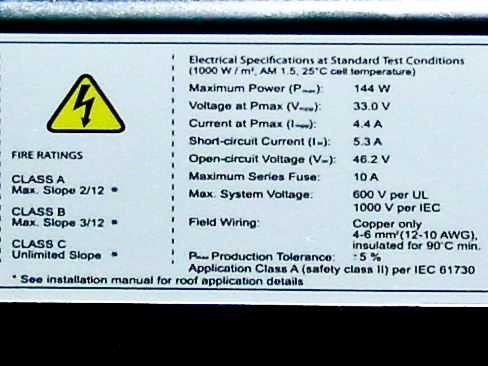

Electrical Stats:

• Maximum Power (Pmax): 144 Watts
• Nominal Operating Voltage: 24 Volts
• Max Power Voltage (Vmpp): 33 Volts
• Max Power Current (Impp): 4.4 Amps
• Open Circuit Voltage (Voc): 46.2 Volts
• Short Circuit Current (Isc): 5.3 Amps
• Max System Voltage: 600 Volts
• Module Efficiency: 7.6 %

Physical Stats:

• Panel Weight: 16.2 Pounds
• Panel Dimensions: 213.1" Long x 14.49" Wide x 0.12" Thick (17.75 x 1.2 Feet)

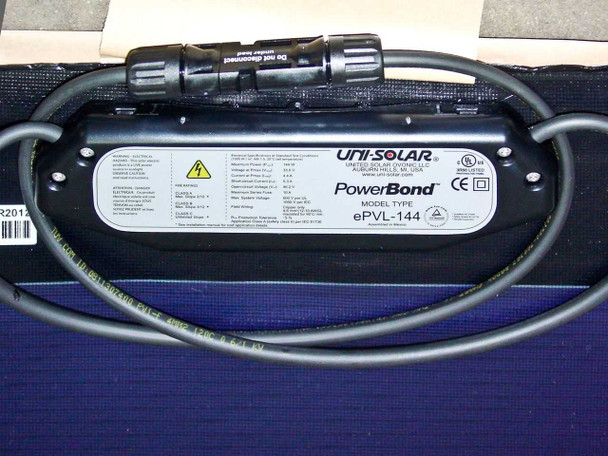

• Module Connector: MC4

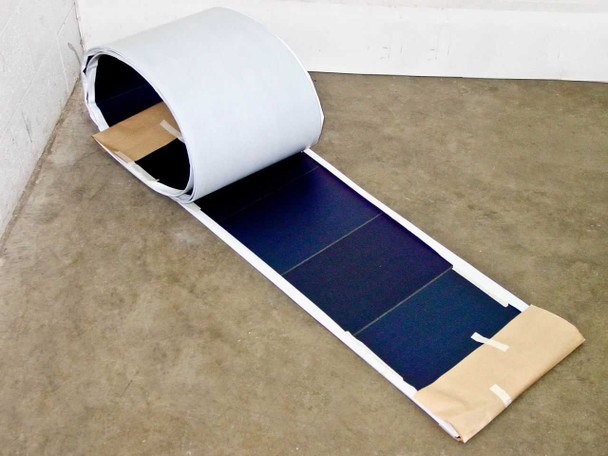

• Lightweight & Flexible
• Easy Peel & Stick Application
• Virtually Unbreakable (No Glass)
• Shadow & High Heat Tolerant
• Cells Per Module: 22
• Frame Material: Frameless
• Bonding adhesive factory-installed on the back of the laminate

UNISOLAR PVL-136 Solar Power Amorphous Flexible PV Panels - YouTube

Video will open in a new window

[isdntekvideo]

Condition:

Please view our photo set and contact us if you have any questions about the condition of this item.
