Spectramass/ASI Dataquad RGA Residual Gas Analyzer Controller DAQ 3.2

$1,000.00
(No reviews yet) Write a Review
SKU:
20308
Condition:
Used
Shipping:
Calculated at Checkout

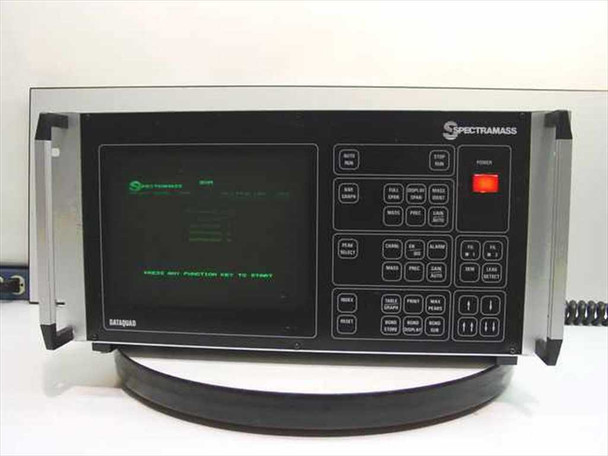

Spectramass/ASI Dataquad RGA Residual Gas Analyzer Controller DAQ 3.2
Spectramass DAQ 3.2 Dataquad RGA Residual Gas Analyzer Controller
  • Mass Range: 1-100, 2-200.
  • Resolution: 10% valley between equal peaks.
  • Minimum detectable partial pressure: 2x10-11mBar Faraday, 2x10-13mBar SEM
  • Minimum detectable total pressure: 1 x 10-11 mBar.
  • Maximum operating pressure: 1x10-4mBar Faraday, 1x10-5mBar SEM
  • Electron energy: 70eV
  • Ion Energy: 6eV
  • Emission: 1 mA *
  • Bake-out temperature: 250C recommended. 350C maximum
  • R.F frequency: 1.84Mhz std.
  • R.F. amplitude: 800V p/p at maximum mass
  • Rod diameter: 6.35 m.m.
  • Rod length: 100 m.m. std.
  • Power requirements: 105/115/220/240 volts 50/60Hz 50Watt
  • Integral VDU: 9 monochrome
