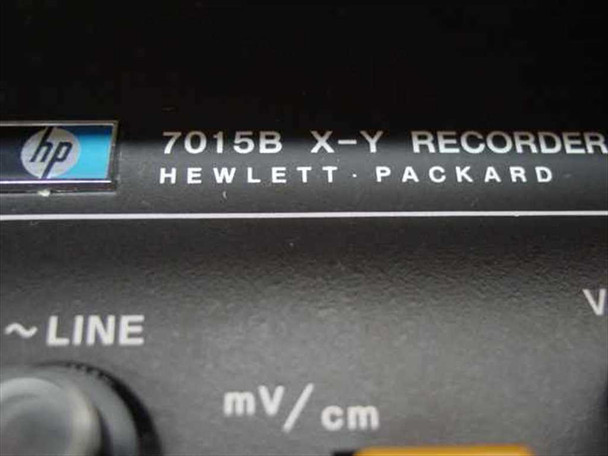

HP 7015B X-Y Chart Recorder - Pen Flatbed

(No reviews yet) Write a Review
Calculated at Checkout
HP 7015B  X-Y Chart Recorder - Pen Flatbed

Out of stock

Request Quote
  • The 7015B X-Y Recorder is a one-pen X-Y recorder that will chart on paper sizes up to 8.5 x 11 in and incorporates an electrostatic paper hold down system
  • Features an internal time base with sweep selections from 5 S to 20 min. Also provides automatic pen control and accepts remote triggering from sweep start and reset

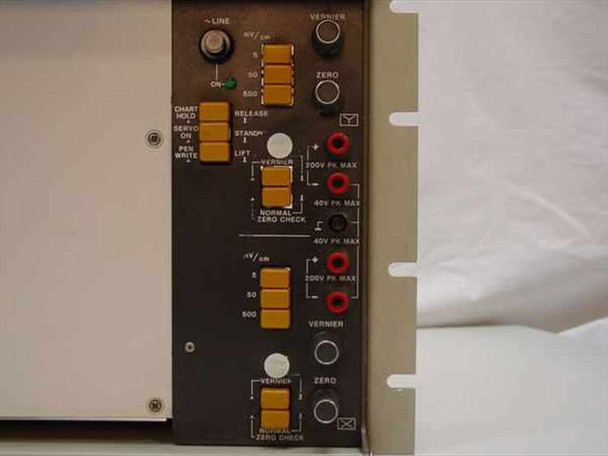

  • Input voltages of 0.01 V/in, 0.1 V/in, & 1 V/in; vernier adjustable overlapping all ranges
  • Timebase of 0.5, 1, 5, 10, 50 & 100 S/in. Input resistance of 1 Mohm
  • Note This unit has been modifided : pen drive input sensitivity has been increased to nearly a galvanometer.

    This item powers up and seems responds to manual controls. However, it is being sold as is with no warranty. No manual or peripherals are included.
