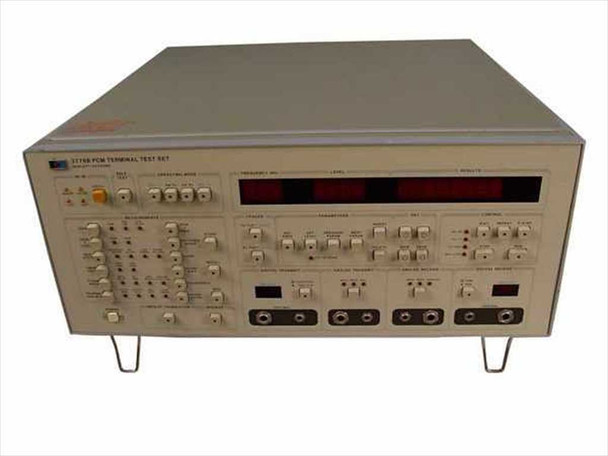

PCM Terminal Test Set w/ Option 001 Features:
Makes comprehensive voice and data measurements on 4kHz bandwidth, analog and digital channels. Besides testing PCM multiplexers and channel banks, these instruments also provide powerful facilities for testing transmultiplexers and digital switching systems.
Both versions of HP's Terminal Test Set are fully programmable from an external controller via the HP-IB. Fulfills the measurement needs of North American/ Bell and Japanese transmission network systems. Performs the measurements needed for both analog and digital testing on 4kHz systems.
Provides the capability to set and monitor PCM streams and signaling bits.
Can generate a DS-1 digital stream containing framing and signaling bits set by the user.
Includes option 001: envelope delay distortion, remodulation, absolute delay, phase jitter, transient and gain hits, phase hits, dropouts and 3 level impulse noise.
Rear panel monitor output.
Needs fuse to power up
