Allen-Bradley 1769-OB16P Compact I/O Module, 16-Point, Solid State, 24VDC AS IS

(No reviews yet) Write a Review
SKU:
51963
MPN:
1769-OB16P
Condition:
Used
Shipping:
Calculated at Checkout
  • Allen-Bradley 1769-OB16P Compact I/O Module, 16-Point, Solid State, 24VDC AS IS
  • Allen-Bradley 1769-OB16P Compact I/O Module, 16-Point, Solid State, 24VDC AS IS
  • Allen-Bradley 1769-OB16P Compact I/O Module, 16-Point, Solid State, 24VDC AS IS
$37.20
Was: $50.00

Description

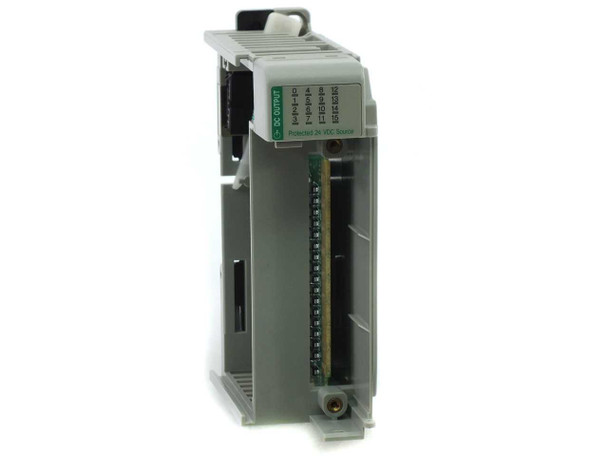

Allen-Bradley 1769-OB16P Compact I/O Module, 16-Point, Solid State, 24VDC - AS IS

Missing terminal block and fingersafe cover.

From the manufacturer:

  • Outputs 16 (16 points/group)
  • Voltage category 24V DC source
  • Operating voltage range 20.4…26.4V DC
  • Output delay, on 1.0 ms
  • Output delay, off 2.0 ms
  • Current draw @ 5.1V 160 mA
  • Heat dissipation, max 2.69 W
  • Off-state leakage current, max(1) 1.0 mA @ 26.4V DC
  • On-state current, min 1.0 mA
  • On-state voltage drop, max 0.5V DC
  • Current per point, max 0.5 A @ 60 °C (140 °F)
  • 1.0 A @ 30 °C (86 °F)
  • Current per module, max 4.0 A @ 60 °C (140 °F)
  • 8.0 A @ 30 °C (86 °F)
  • Surge current(2) 2.0 A for 10 ms, repeatable every 1 s
  • Isolation voltage Verified by one of the following dielectric tests: 1200V AC for 1 s or 1697V DC for 1 s, output point to bus
  • 75V DC working voltage (IEC Class 2 reinforced insulation)
  • Weight, approx 255 g (0.56 lb)
  • Dimensions (HxWxD), approx 118 x 35 x 87 mm (4.65 x 1.38 x 3.43 in.)
  • Height with mounting tabs 138 mm (5.43 in.)
  • Slot width 1
  • Module location DIN rail or panel mount
  • Power supply 1769-PA2, 1769-PB2, 1769-PA4, 1769-PB4
  • Power supply distance rating 8 modules
  • Terminal screw torque 0.68 Nm (6 lbin)
  • Retaining screw torque 0.46 Nm (4.1 lbin)
  • Wire size (22…14 AWG) solid (22…16 AWG) stranded

This item was pulled from a working environment but has not been tested at our facility. Please view our photo set and contact us with any questions.
