Description

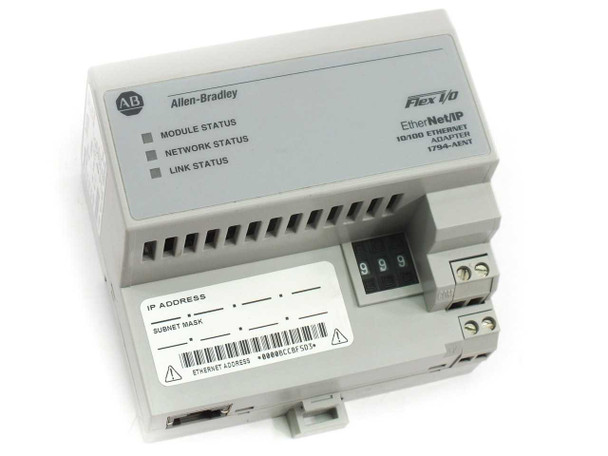

Allen-Bradley 1794-AENT EtherNet/IP 10/100 Mbs FLEX I/O Adapter Module 10BaseT
From the manufacturer:
- I/O capacity 8 modules
- Input voltage rating 24V DC nom
- Input voltage range 19.2…31.2V DC (includes 5% AC ripple)
- Communication rate 10/100 Mbps
- Indicators
- Module Status – red/green
- Network Status – red/green
- Link Status – green
- Flexbus output current 640 mA max
- Isolation voltage 50V continuous, Basic Insulation Type
- Tested at 1000V AC for 60 s, power to Flexbus to Ethernet
- Power consumption 550 mA max, 440 mA max at 24V DC
- Power dissipation 7.3 W max @ 19.2V DC
- Thermal dissipation 24.9 BTU/hr @ 19.2V DC
- Ethernet connector RJ45 Cat. 5
- Weight, approx. 179 g (6.31 oz)
- Enclosure type rating None (open-style)
- North American temp code T4A
- ATEX temp code T4
