Web Technology 7200 NID Vapor Detection Gross Leak System MIL-STD-883
The Web Technology NID System Model 7200 is a benchtop vapor-phase gross leak detection analyzer designed for hermetic package integrity testing. It is the core analyzer of the Series 7000 NID (Non-Invasive Detection) Vapor Detection system, which uses vapor detection rather than bubble immersion to identify gross leaks in sealed microelectronic and semiconductor packages. The system is designed for full compliance with MIL-STD-883, MIL-STD-750, and MIL-STD-202 gross leak test methods.
Specifications & What's Included
- Manufacturer: Web Technology, Inc. — Dallas, Texas
- Model: NID System — Model 7200 (Series 7000)
- Power: 110V AC, 60Hz
- Serial Number: 7409-126M (manufactured 8/23/88)
- Controller: Athena Controls — dual LED display (Process / Setpoint / Index) with I/▲/▼/E keypad

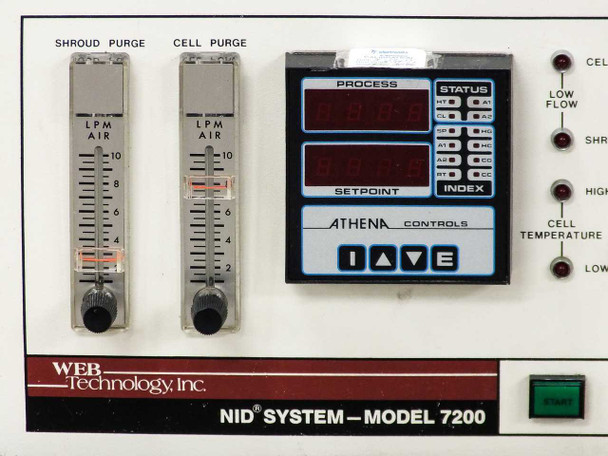

- Front panel flowmeters: Shroud Purge (LPM Air) and Cell Purge (LPM Air) — dual rotameter-style gauges

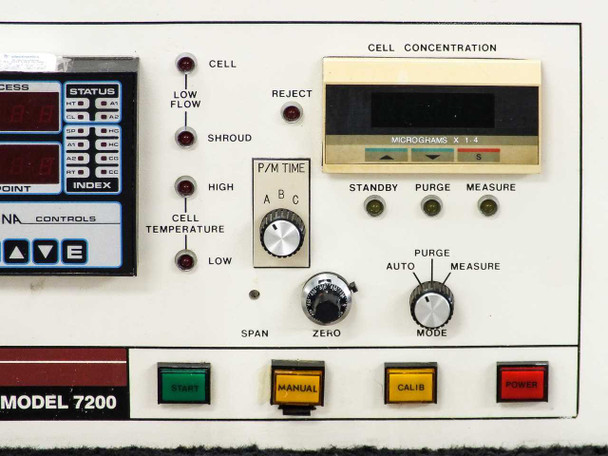

- Cell Concentration display: analog panel meter, scale in Micrograms × 1/4
- Controls: Span, Zero, Mode (Auto/Purge/Measure), P/M Time selector (A/B/C)
- Indicators: Cell, Low Flow, Shroud, High, Low (Cell Temperature), Reject, Standby, Purge, Measure LEDs
- Front panel pushbuttons: Start (green), Manual (yellow), Calib (yellow), Power (red)
- Rear panel: pneumatic fittings, multiple white tubing connections, pressure regulator, service controls
- Mounted on wheeled cart with padded base for mobility

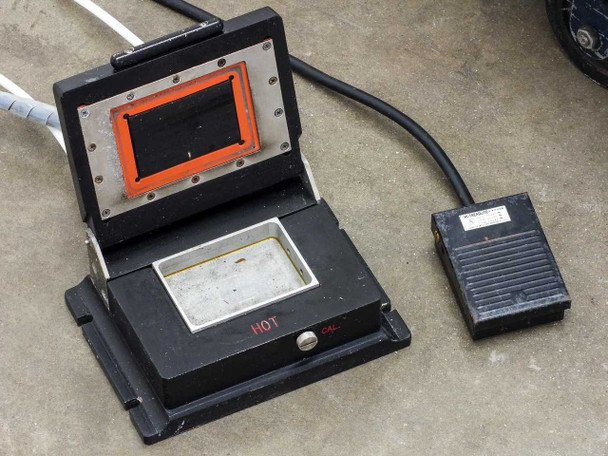

- Includes: small heated test chamber — 3.3Condition: Used
This Web Technology NID System Model 7200 Vapor Detection Gross Leak Detection System powers on and the front panel lights up. We were not able to test it further beyond confirming it powers on, so the full operational status of the detection and measurement functions is unknown. The unit shows cosmetic wear consistent with its age and use in an industrial/semiconductor manufacturing environment — the main chassis shows discoloration and surface soiling, and the cart-mounted base shows wear to the pad material. The test chamber is included and shows wear to the platen surface. The foot pedal is also included. All tubing and pneumatic connections are present on the rear. Please review all photos carefully and contact us with any questions before purchasing.
Warranty Information
We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose
Additional Information
Brand: |
Web Technology, Inc. |
Model: |
7200 |
Secondary Model: |
Series 7000 |
MPN: |
7200 |
SKU: |
51555 |
Type: |
NID Vapor Detection Gross Leak Detection System |
Power Requirements: |
110V AC, 60Hz |
Test Method: |
NID Vapor Detection |
Standards Compliance: |
MIL-STD-883, MIL-STD-750, MIL-STD-202 |
Application: |
Gross Leak Detection, Hermetic Package Testing |
Controller: |
Athena Controls (Process/Setpoint/Index display) |
Included Accessories: |
Small test chamber 3.3" x 2.25" x 20/32" H, foot pedal |
Country/Region of Manufacture: |
United States |
Manufacture Date: |
8/23/88 |
Form Factor: |
Benchtop / Cart-Mounted |
Seller Notes: |
Includes small test chamber (3.3" x 2.25" x 20/32" H) and foot pedal. |
Condition Notes: |
Web Technology 7200 NID Gross Leak Detection System powers on and front panel lights up. Further testing was not performed. Sold as-is — operational status of detection functions is unknown. Includes test chamber and foot pedal. |
