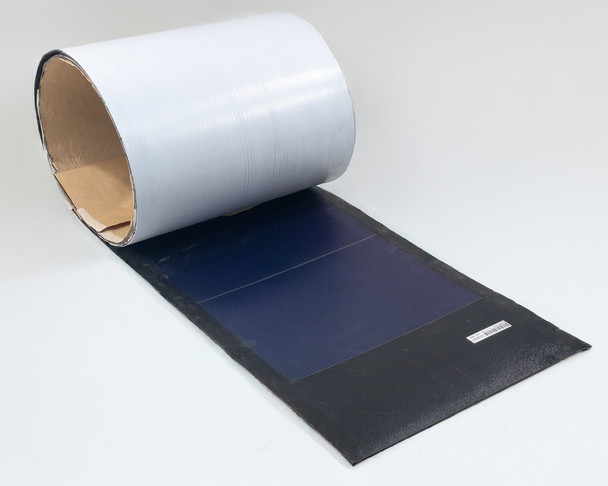

Uni-Solar PVL-116 116W 24V Amorphous Flexible Solar Panel Solder Point UL LISTED

Uni-Solar PVL-116 116W 24V Amorphous Flexible Solar Panel Solder Point UL LISTED

Uni-Solar PVL-116 116W 24V Amorphous Flexible Solar Panels are lightweight and flexible solar panels that directly adhere to many roofing surfaces avoiding penetrations. They are also Category 3 (130 MPH) Hurricane uplift resistant and installed with no hardware. Each solar cell is connected to each other via bypass diodes. Therefore, if one solar cell is shaded or soiled, only the power output of this one shaded solar cell is lost - usually less than 4.5%. These flexible solar panels are less than 1/5th the weight of crystalline solar panels and are designed for membrane and metal roofing system applications.

Electrical Stats:

• Maximum Power (Pmax): 116 Watts
• Nominal Operating Voltage: 24 Volts
• Peak Power (Volts): 30 Volts
• Peak Power (Amps): 3.88 Amps
• Open Circuit Volts: 43.2 Volts
• Short Circuit Amps: 4.8 Amps

Physical Stats:

• Panel Dimensions (Feet): 16.4 long x 1.29 wide
• Panel Dimensions (Inches): 197.3 long x 15.5 wide x 0.2 thick
• Panel Weight: 15.5 Pounds

Electrical Connectors:

• Solder Point, NO CONNECTORS

Features:

• Lightweight & Flexible
• Easy Peel & Stick Application
• Virtually Unbreakable (No Glass)
• Shadow & High Heat Tolerant
• Frame Material: Frameless
• Bonding adhesive factory-installed on the back of the laminate



Condition: Open Box

This Uni-Solar PVL-116 116W 24V Amorphous Flexible Solar Panel, made in USA solar panel is packed and stored in the factory carton, but is being sold as singles. The Unisolar Solar Panel manufacturing and distribution facility was liquidated in 2012 and these flexible solar panels came direct from Unisolar. We do have various brochures and installation guides produced by Unisolar available we can offer you if requested. Uni-solar peel and stick flexible solar panels are no longer made and are getting more rare by the day.
