Description
Toshiba UA0392P06 LCD Inverter Board for Tecra 8000 Series Laptop NJD-5192
This is the Toshiba UA0392P06 LCD inverter board, a direct replacement part for Toshiba Tecra 8000 series laptops. The inverter board supplies the high-voltage AC power required to drive the laptop's CCFL (cold cathode fluorescent lamp) backlight, and is a common repair part when a screen appears dark, dim, or completely unlit despite the laptop powering on normally.
Specifications & What's Included
- Part Number: UA0392P06
- Secondary Part Number: NJD-5192
- Board Reference: 6P08970E
- Type: LCD CCFL Backlight Inverter Board
- Compatible With: Toshiba Tecra 8000 series laptops
- Form Factor: Slim internal laptop PCB (narrow strip board)
- Connectors: Low-voltage input connector on one end; CCFL lamp output connector on the other

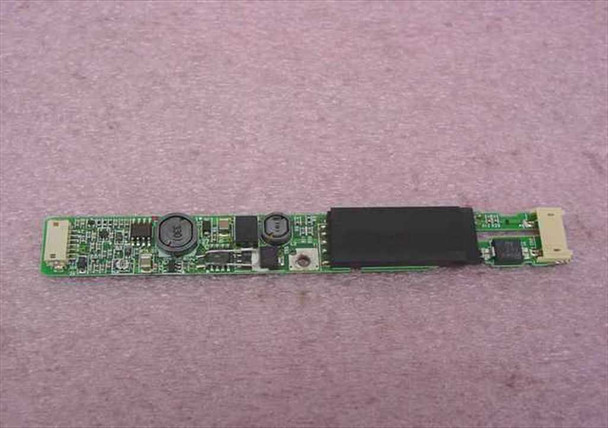

- Visible components: Inductors, capacitors, transformer block, and control ICs
- High-voltage caution label printed on board surface
- Inverter board only — no cables or accessories included
Applications
LCD inverter boards like the UA0392P06 were standard components in late-1990s and early-2000s laptop computers that used CCFL-backlit LCD panels, including the Toshiba Tecra 8000 series — a business-class laptop line introduced around 1998. The inverter converts the laptop's low-voltage DC power into the higher-frequency AC voltage needed to illuminate the CCFL tube behind the LCD panel. When this board fails, the screen typically appears very dim or completely dark even though the system is running, making it one of the first parts checked in a screen-dark diagnosis. This part is primarily sought today by technicians repairing legacy Tecra 8000 series machines or collectors restoring late-1990s Toshiba business laptops.
This Toshiba UA0392P06 LCD Inverter Board for the Tecra 8000 series has been inspected and appears to be in good used condition. The board shows normal handling wear consistent with removal from a laptop. No visible cracks, burnt components, or physical damage were noted. Please view our photo set and contact us if you have any questions.
Warranty Information
Additional Information
Brand: |
Toshiba |
Model: |
UA0392P06 |
MPN: |
UA0392P06 |
Secondary Model: |
NJD-5192 |
Type: |
LCD Inverter Board |
SKU: |
23356 |
Compatible With: |
Toshiba Tecra 8000 Series Laptops |
Form Factor: |
Internal Laptop Component |
Seller Notes: |
Inverter board only — no cables or accessories included. |
Country/Region of Manufacture: |
Japan |
Condition Notes: |
This Toshiba UA0392P06 LCD Inverter Board for the Tecra 8000 series has been inspected and is in good used condition. Normal handling wear; no visible damage. Please contact us with any questions. |
