Tektronix TDS 544A 070-8712-00 Digitizing Oscilloscope Performance Verification

(No reviews yet) Write a Review
SKU:
49256
MPN:
TDS 544A
Condition:
Used
Availability:
Currently out of stock — contact us for availability.
Weight:
1.00 LBS
Shipping:
Calculated at Checkout

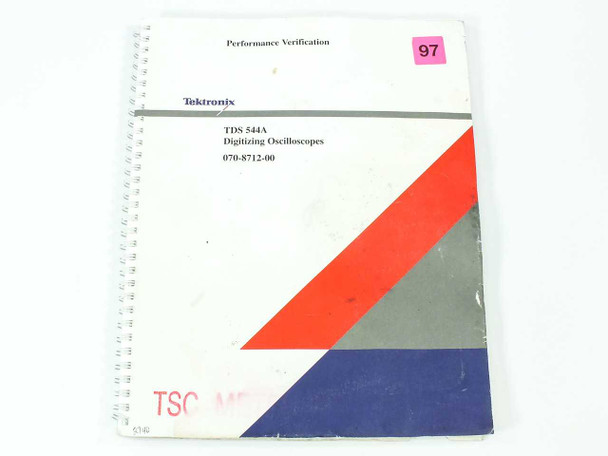

  • Tektronix TDS 544A Digitizing Oscilloscopes Performance Verification Manual 070-8712-00 – front cover with red, gray, and blue graphic design and inventory sticker
  • Tektronix TDS 544A Digitizing Oscilloscopes Performance Verification Manual 070-8712-00 – title page showing Tektronix logo and publication number
  • Tektronix TDS 544A Performance Verification Manual – Table of Contents showing performance verification procedures and signal acquisition checks
  • Tektronix TDS 544A Performance Verification Manual – Table of Contents continued, showing Specification section with nominal traits and warranted characteristics
$18.90
Was: $40.00

This item is temporarily unavailable. Please view our recommended, in-stock alternatives directly below.

Description

Tektronix TDS 544A 070-8712-00 Digitizing Oscilloscope Performance Verification Manual 1993

This is the original Tektronix Performance Verification manual for the TDS 544A Digitizing Oscilloscope, publication number 070-8712-00, printed March 1993. It provides the complete set of procedures required to verify that a TDS 544A oscilloscope meets its warranted specifications — covering functional tests, signal acquisition checks, time base verification, trigger system checks, and output signal tests. A standard reference for technicians calibrating or recertifying TDS 544A units.

Specifications & What's Included

  • Manufacturer: Tektronix
  • For Model: TDS 544A Digitizing Oscilloscope
  • Document Type: Performance Verification
  • Publication Number: 070-8712-00
  • Print Date: March 1993
  • Language: English
  • Format: Spiral-bound printed manual
  • Sections include: Safety Summary; Brief Procedures; Self Tests; Functional Tests; Signal Acquisition System Checks; Time Base System Checks; Trigger System Checks; Display Checks; Output Signal Checks; Option 05 Video Trigger Checks; Specifications (Nominal Traits, Warranted Characteristics, Typical Characteristics)

Applications

The Tektronix TDS 544A is a 500 MHz, 4-channel digitizing oscilloscope introduced in the early 1990s as part of Tektronix's TDS 500 series — instruments widely used in electronics development, manufacturing test, and university labs. Performance verification manuals like this one are used by metrology technicians and calibration labs to confirm that a TDS 544A meets its published warranted characteristics after repair, periodic calibration, or before return to service. The procedures cover DC gain and voltage measurement accuracy, analog bandwidth, sample rate, delay time, trigger level, probe compensator outputs, and more. This manual remains the authoritative reference for anyone maintaining or recertifying a TDS 544A today.

Condition: Used
This Tektronix TDS 544A Digitizing Oscilloscope Performance Verification Manual (070-8712-00) is in good used condition. The spiral binding is intact and the pages are clean and legible throughout. The cover shows light shelf wear and there is a small inventory sticker on the front cover. Please view our photo set and contact us if you have any questions.
