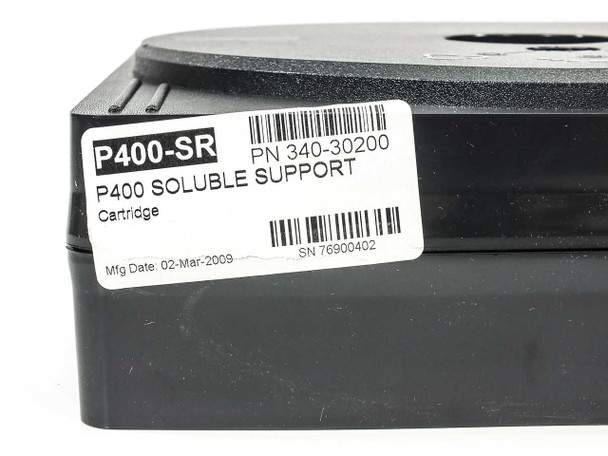

Stratasys P400-SR 340-30200 Soluble Support Cartridge FDM Dimension ABSplus Idea
The Stratasys P400-SR is a soluble support material cartridge designed for use in Stratasys FDM (Fused Deposition Modeling) 3D printers. It contains SR-30 soluble support material — a water-soluble thermoplastic that is used alongside ABSplus model material to build the support structures that hold overhangs and complex geometries during printing. Once the print is complete, the SR-30 support is dissolved away in a WaterWorks solution bath, leaving a clean finished part with no manual support removal required.
Specifications & What's Included
- Model: P400-SR
- Part Number (MPN): 340-30200
- Material type: Soluble support (SR-30)
- Compatible model material: ABSplus
- Cartridge form factor: Standard FDM spool cartridge with embedded smart chip
- Smart chip: Present and intact (green PCB chip visible on cartridge side)
- Manufacture date: 02-Mar-2009
- Remaining material: Approximately 10–20% of original fill
- Original cardboard box included
- One unit in stock shown sealed in silver mylar foil bag
Applications
The P400-SR soluble support cartridge is used in Stratasys FDM systems that support dual-extrusion with soluble support, including the Dimension series (Dimension BST, SST, Elite), uPrint and uPrint SE, and Idea Series and Design Series Performance 3D printers. In these systems, the model material (ABSplus) builds the actual part while the P400-SR support material builds breakaway or dissolvable scaffolding underneath overhangs, internal channels, and complex part geometries. Soluble support is particularly valuable for parts with internal cavities or tight undercuts where manual support removal would be difficult or would leave surface marks. The SR-30 material dissolves completely in a WaterWorks heated solution station, producing clean, smooth supported surfaces — a key advantage in engineering and prototyping workflows. These cartridges date from the late-2000s era of Stratasys FDM desktop and benchtop systems, which brought professional-grade soluble support to engineering teams and design bureaus.
This Stratasys P400-SR Soluble Support Cartridge (PN 340-30200) was pulled from a working 3D printing environment and contains approximately 10–20% of its original material remaining. The cartridge housing is in good physical condition with no cracks or damage, and the embedded smart chip is intact and visible. The original cardboard box is included; one unit in our photos is shown sealed in its silver mylar foil bag. Please review all photos for a complete look at condition, and contact us with any questions.
Warranty Information
Additional Information
Brand: |
Stratasys |
Model: |
P400-SR |
MPN: |
340-30200 |
Type: |
Soluble Support Filament Cartridge |
SKU: |
49574 |
Seller Notes: |
Cartridge only — approximately 10–20% material remaining. Box included. |
Compatible With: |
Stratasys Dimension FDM 3D Printers |
Compatible With 2: |
Stratasys uPrint 3D Printers |
Compatible With 3: |
Stratasys Idea Series 3D Printers |
Compatible With 4: |
Stratasys Design Series Performance 3D Printers |
Material Type: |
Soluble Support (SR-30 / P400-SR) |
Filament Material: |
ABSplus-compatible soluble support |
Manufacture Date: |
02-Mar-2009 |
Country/Region of Manufacture: |
United States |
Form Factor: |
Cartridge |
Smart Chip: |
Yes — embedded smart chip on cartridge |
Condition Notes: |
Stratasys P400-SR Soluble Support Cartridge (PN 340-30200) pulled from a working environment. Contains approx. 10–20% material remaining. Housing in good condition; smart chip intact. Original box included. |
