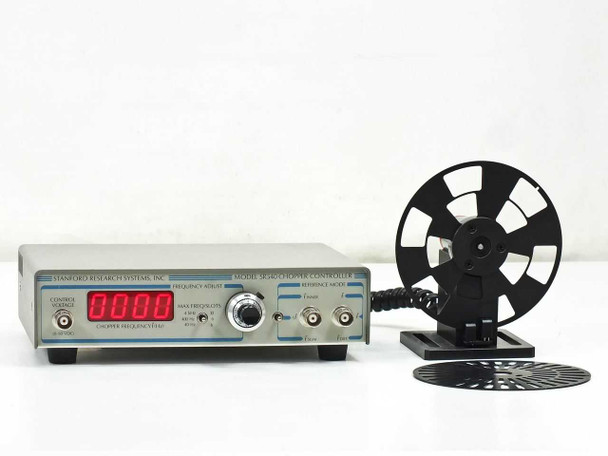

The Stanford Research Systems SR540 is a precision optical chopper controller designed to drive the SR541 motor head at stable, selectable frequencies for use in phase-sensitive detection and lock-in amplifier experiments. The SR540 generates a reference frequency output synchronized to the spinning chopper blade, allowing a lock-in amplifier to extract weak signals buried in noise. The controller's LED display shows the chopper frequency in real time, and the frequency can be set by the front-panel dial or controlled externally via a 0–10 VDC analog voltage input.

Specifications & What's Included

• Controller model: Stanford Research Systems SR540 Chopper Controller

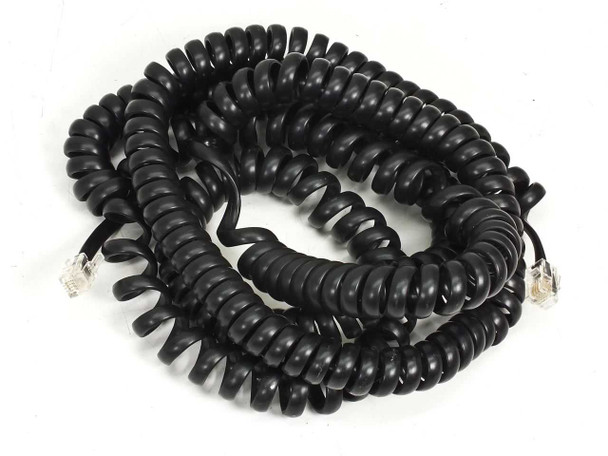

• Motor head: SR541 (connected via rear-panel Chopper Head Cable RJ port)

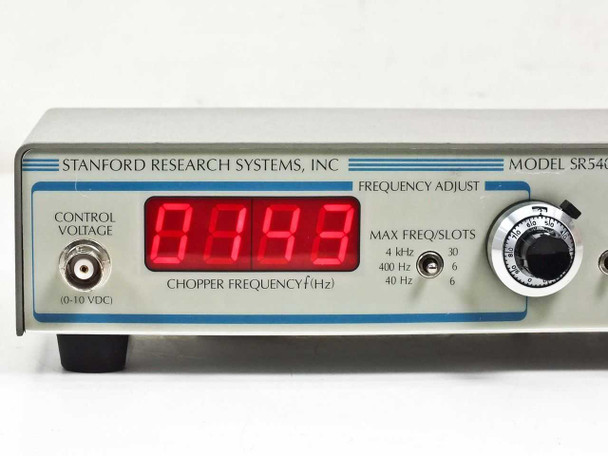

• Chopper frequency display: 4-digit red LED, reads in Hz
• Frequency adjust: front-panel dial; external control via 0–10 VDC BNC input
• Max frequency by blade configuration: 4 kHz (30-slot blade), 400 Hz (6-slot blade), 40 Hz (6-slot low-speed mode)

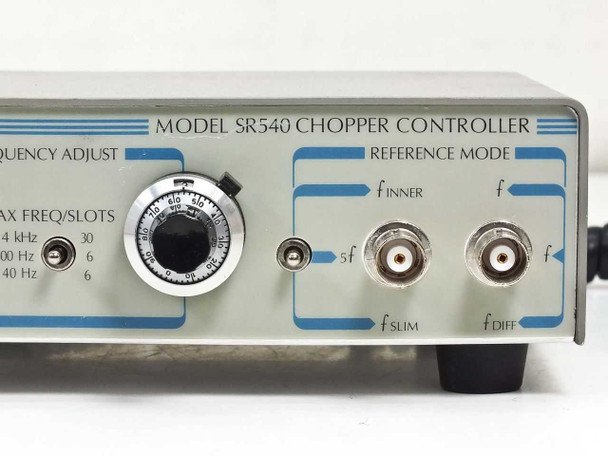

• Reference mode outputs (BNC): f_INNER, f, sf (sub-frequency), f_SLIM, f_DIFF

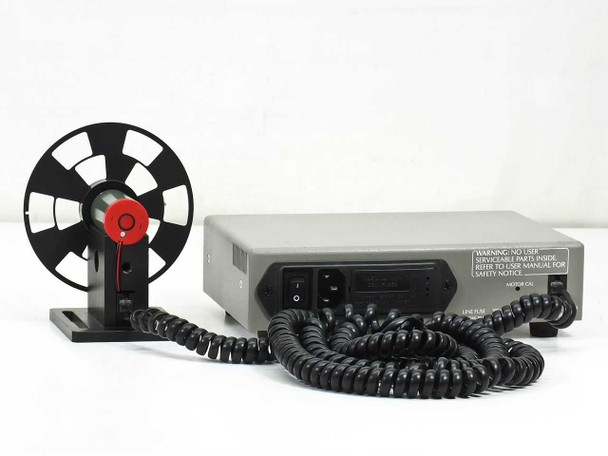

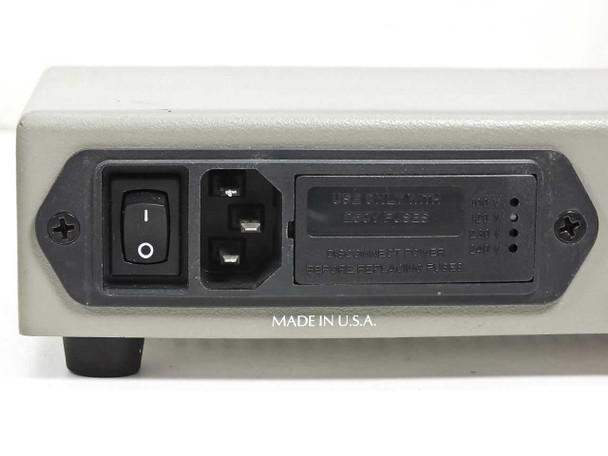

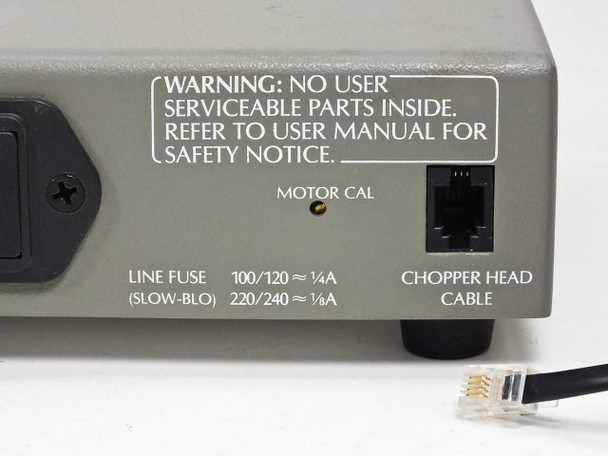

• Rear panel: Motor Cal trimmer, Chopper Head Cable RJ port, IEC AC inlet, rocker power switch, fuse holder
• Line fuse: 100/120V ≈ ¼A slow-blo; 220/240V ≈ ⅛A
• Power: 100/120V or 220/240V AC, 50/60Hz
• Included chopper blade 1: 6/5-slot, 4" diameter (large black blade on motor stand)

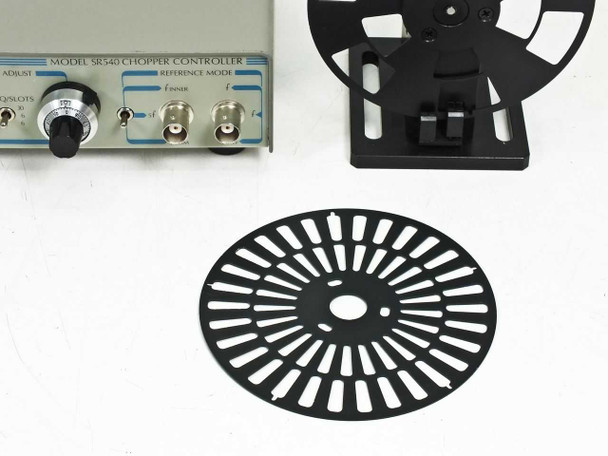

• Included chopper blade 2: 30/25-slot, 4" diameter (smaller blade)

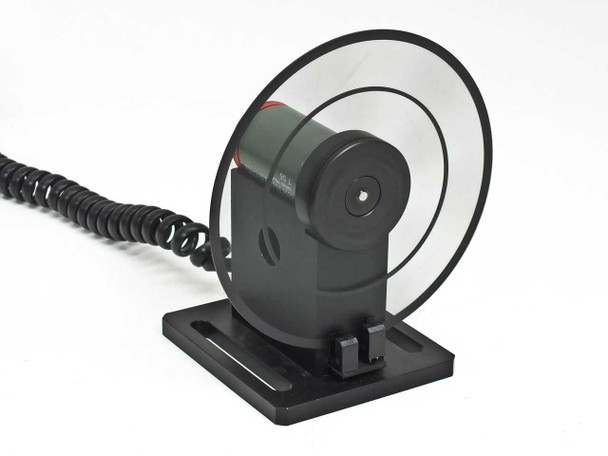

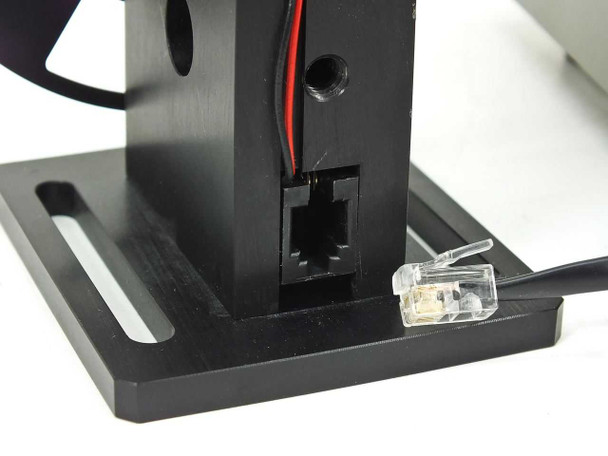

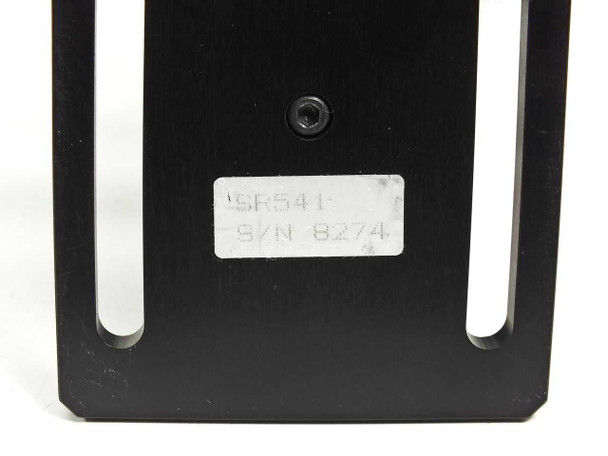

• SR541 motor head mounts on adjustable black anodized aluminum stand with slotted base for optical rail mounting
• Country of manufacture: United States

Applications
