Square D

Square D NQOD 80045-104-01 225A Sub Panel 208Y/120V 42-Circuit 38x20A Breakers

(No reviews yet) Write a Review
SKU:
44129
MPN:
80045-104-01
Condition:
Used
Availability:
Currently out of stock — contact us for availability.
Weight:
155.00 LBS
Shipping:
Calculated at Checkout

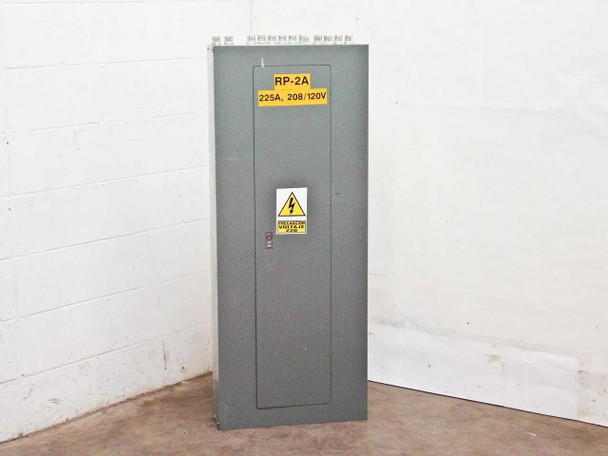

  • Square D NQOD 80045-104-01 225A sub panel front view — closed door with RP-2A 225A 208/120V label and electrical hazard warning

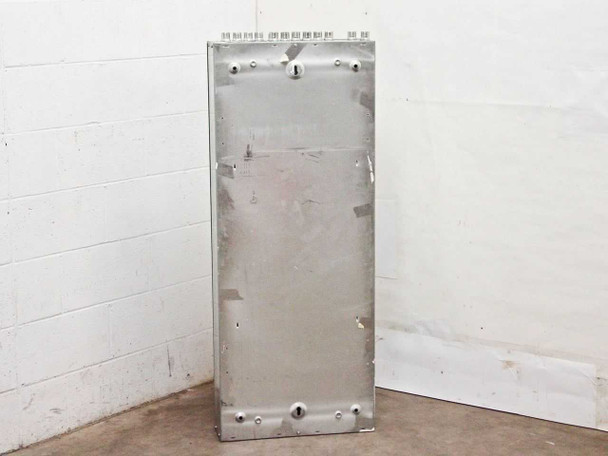

  • Square D NQOD 225A sub panel rear view — bare metal back of enclosure showing mounting holes and surface wear
  • Square D 80045-104-01 enclosure label — Type 1, NQOD, MHC50S Series E2, Made in USA, UL Listed
  • Square D NQOD sub panel top view — multiple conduit knockouts and cable entry points, RP-2A 225A 208/120V label visible
  • Square D NQOD 225A sub panel interior upper section — main 225A breaker with RP-2A label and warning placards

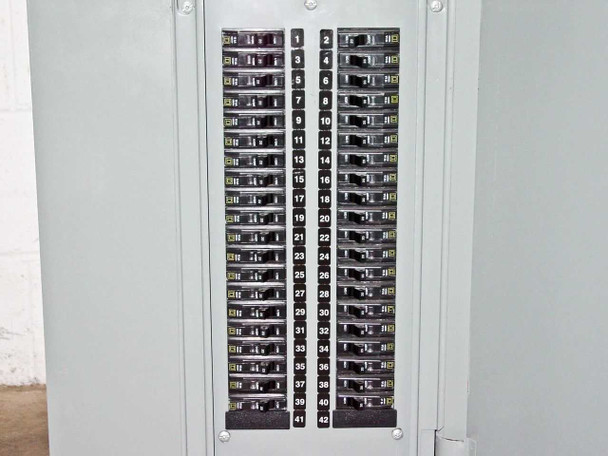

  • Square D NQOD sub panel interior — full array of 42 numbered single-pole branch circuit breakers, circuits 1–42

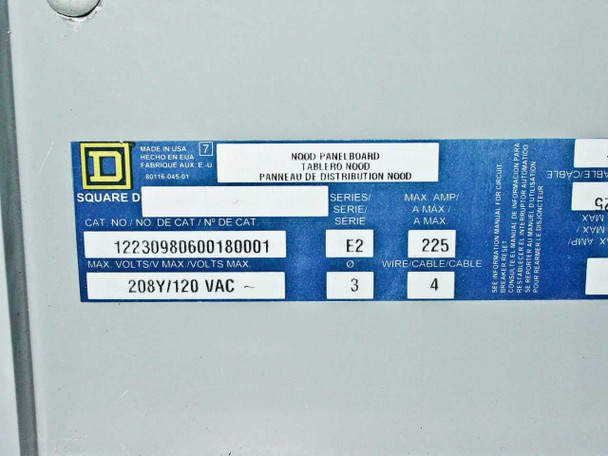

  • Square D NQOD panelboard interior label — Cat No. 12230980600180001, Series E2, 225A max, 208Y/120 VAC, 3-phase
$1,000.00
Was: $2,000.00

This item is temporarily unavailable. Please view our recommended, in-stock alternatives directly below.

Description

Square D NQOD 80045-104-01 225A Sub Panel 208Y/120V 42-Circuit 38x20A Breakers

This Square D NQOD panelboard is a fully populated 225-amp, 3-phase, 208Y/120V circuit breaker sub panel in a Type 1 steel enclosure. It carries a 225A main breaker and a complete set of 42 branch circuit breakers, making it ready for commercial or light industrial sub-distribution service. The panel is identified by part number 80045-104-01, Series MHC50S, Series E2, and catalog number 12230980600180001.

Specifications & What's Included

  • Manufacturer: Square D (Schneider Electric)
  • Part Number: 80045-104-01
  • Catalog Number: 12230980600180001
  • Series: MHC50S, Series E2
  • Panelboard Type: NQOD
  • Enclosure Type: Type 1 (indoor, surface-mount)
  • Maximum Amperage: 225A
  • Voltage: 208Y/120 VAC, 3-Phase
  • Interrupt Rating: 10kAIR
  • External Dimensions: 53" H × 21" W × 7" D
  • Country of Manufacture: USA
  • Certifications: UL Listed
  • Main Breaker: 225A, 208/120V (1 qty)
  • Branch Breakers — 20A Single Pole, 120/240V, 10kAIR: 38 qty
  • Branch Breakers — 30A Single Pole, 120/240V, 10kAIR: 2 qty
  • Total circuits: 42
  • Wire/cable size rating: 4
  • Key: not included
  • Freight shipping required due to size and weight

Applications

Square D NQOD panelboards are a long-established standard for commercial and light industrial electrical distribution in North America. They are designed to serve as sub panels fed from a larger main distribution panel or switchgear, distributing 208Y/120V, 3-phase power to individual branch circuits throughout a building. Common installations include office buildings, schools, hospitals, retail spaces, data centers, and light manufacturing facilities — anywhere 120V single-phase loads (lighting, receptacles, small equipment) need to be distributed from a 3-phase 208V service. The 42-circuit configuration with a 225A main breaker is well suited to medium-to-large commercial floors or tenant spaces. The NQOD series uses plug-on breaker mounting, which makes circuit additions and replacements straightforward. Type 1 enclosures are rated for indoor dry-location use. Square D NQOD panels remain widely used in commercial construction and are a common target for surplus buyers outfitting new builds, renovations, or replacement installations.

Condition: Used
This Square D NQOD 80045-104-01 225A Circuit Breaker Sub Panel has been inspected and is in good used condition. It was pulled from a working environment where it was actively in service. The enclosure shows normal surface wear consistent with commercial use; the breakers and internal components appear intact and undamaged. Note that the key is not included. Due to its size (53" x 21" x 7") and weight, this panel requires freight shipping — please contact us for a freight quote before purchasing. Please view our photo set and contact us if you have any questions.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
Square D
Model:
80045-104-01
MPN:
80045-104-01
Secondary Model:
12230980600180001
Type:
NQOD Panelboard / Circuit Breaker Sub Panel
Series:
MHC50S Series E2
SKU:
44129
Enclosure Type:
Type 1
Voltage Rating:
208Y/120 VAC
Maximum Amperage:
225A
Number of Circuits:
42
Main Breaker Rating:
225 Amp, 208/120V
Branch Breaker 1:
38x 20A Single Pole 120/240V 10kAIR
Branch Breaker 2:
2x 30A Single Pole 120/240V 10kAIR
Interrupt Rating:
10kAIR
Phase:
3-Phase
Wire/Cable Size:
4
External Dimensions:
53" H x 21" W x 7" D
Country/Region of Manufacture:
United States
Certifications:
UL Listed
Form Factor:
Wall Mount / Surface Mount Enclosure
Seller Notes:
Panel only — key not included. Requires freight shipping due to size and weight.
Condition Notes:
This Square D NQOD 80045-104-01 225A sub panel has been inspected and is in good used condition. Pulled from a working environment. Key not included. Requires freight shipping due to size and weight.
California Prop 65 Warning:
WARNING: This product can expose you to chemicals including lead and lead compounds, and DEHP (a phthalate), which are known to the State of California to cause cancer and birth defects or other reproductive harm. Go to P65Warnings.ca.gov
