Sony Tektronix AFG2020 Arbitrary Function Generator 250MS/s 100MHz Option 02

Sony Tektronix AFG2020 Arbitrary Function Generator 250MS/s 100MHz Option 02

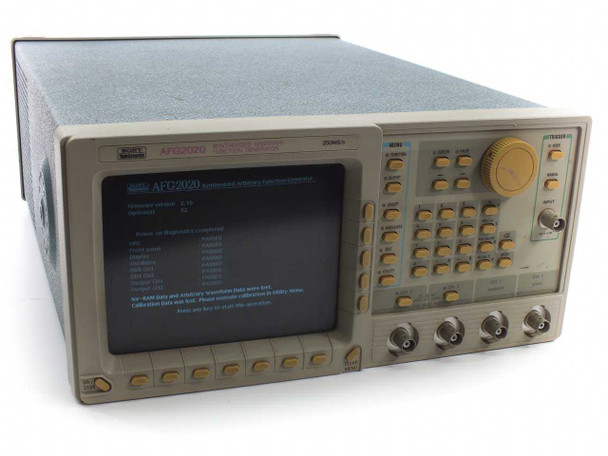

The Sony Tektronix AFG2020 is a DDS (Direct Digital Synthesis) Synthesized Arbitrary Function Generator capable of outputting standard waveforms, modulated signals, swept signals, and user-defined arbitrary waveforms. Equipped with a built-in high-resolution monitor and graphical user interface, it functions as a self-contained signal source for both benchtop lab use and system integration via GPIB. This unit is equipped with Option 02, which adds a fully independent second output channel.

Specifications & What's Included

• Model: Sony Tektronix AFG2020
• Option: 02 — Second channel with fully independent execution

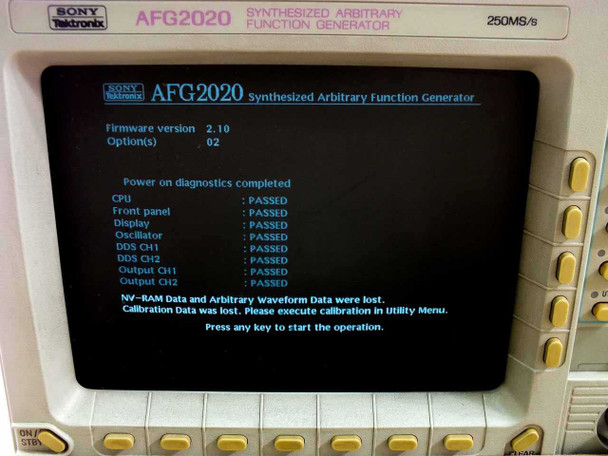

• Firmware version: 2.10
• Sample rate: 250 MS/s
• Number of channels: 2 (independent)
• Sine wave output: 0.5 Hz to 100 MHz
• Square wave output: 0.5 Hz to 50 MHz
• Triangle, ramp, and pulse output: 0.5 Hz to 31.2 MHz
• Clock accuracy: 1 ppm
• Clock resolution: 0.5 Hz (10-digit)
• Vertical resolution: 12-bit (1/4096)
• Arbitrary waveforms: 16 separate waveforms, 1K (1024 points) record length each
• Modulation: Internal AM, FM, PSK, FSK; External AM
• Sweep: Built-in linear and logarithmic sweep
• Trigger delay: 700 ns to 100 s
• DSO waveform transfer: Direct transfer without external controller
• Display: Built-in high-resolution CRT monitor with graphical user interface
• Interface: GPIB (IEEE-488) — rear panel

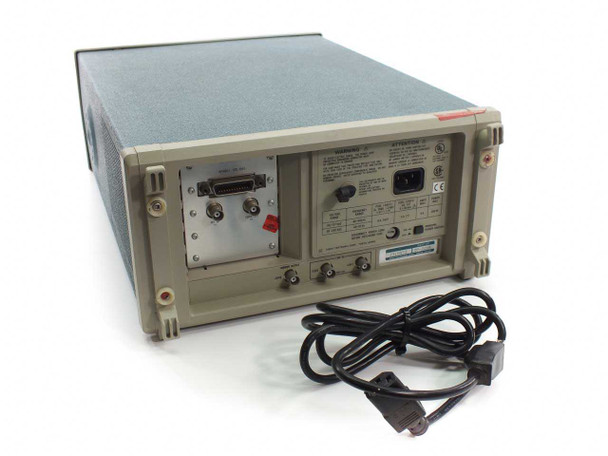

• Rear-panel connectors: GPIB, dual BNC outputs, AM IN, IEC AC inlet

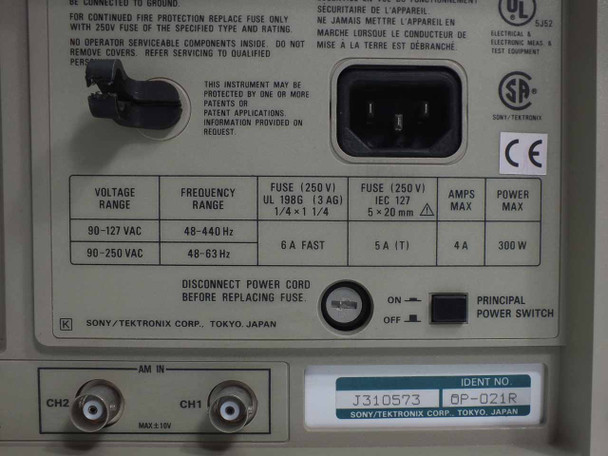

• Voltage input range: 90–127 VAC / 90–250 VAC (switchable)
• AC frequency range: 48–440 Hz / 48–63 Hz
• Power consumption: 300W max, 4A max
• Fuse (UL 198.6 3AG): 6A FAST, 250V, 1/4×1-1/4
• Fuse (IEC 127): 5A (T), 250V, 5×20mm
• Manufactured by Sony/Tektronix Corp., Tokyo, Japan
• Includes: AC power cord
• Not included: stand/carrying handle (removed by prior owner), manual

Applications

The AFG2020 is a mid-1990s benchtop arbitrary function generator from the Sony/Tektronix joint venture, a collaboration that produced test and measurement instruments for the Japanese and international markets during roughly 1990–2000. DDS-based generators like this one were a significant step up from earlier analog generators, offering highly stable, low-distortion outputs with digital frequency resolution and the ability to download custom waveforms directly from a DSO — eliminating the need for a PC or controller in many bench setups. The AFG2020 is used in electronics development, component characterization, communications testing, and educational lab environments wherever a stable, programmable signal source with modulation and arbitrary waveform capability is needed. The built-in GPIB interface makes it well-suited for automated test systems running HP-IB or IEEE-488 instrument buses, a standard configuration in production test and R&D labs of its era that remains common in legacy ATE environments today. Option 02's dual independent channel capability extends its usefulness to phase-relationship testing, two-tone intermodulation measurements, and differential signal stimulus.
