SoloPower SP3L-200 200 Watt Solar Panel 7' Battery Charging RV Boat Camping MC4 Connectors ETFE

Electrical Characteristics

Peak Stats at 100% Factory-Perfect Simulated Sun

Rated Power: 200 W

Voltage at Pmax: 65.1 V

Current at Pmax: 3.4 A

Open-circuit Voltage: 91.8 A

Short-circuit current: 4.4 A

Max Series Fuse Rating 7 A

Max System Voltage: 600 VDC

Physical Characteristics

Length: 86.5 in (7.2 ft / 2.197 m)

Width: 45.1 in (3.75 ft / 1.146 m)

Thickness: 0.1 in (2.0 mm)

Weight:13.2 lbs (6.1 kg)

Key Features

The lightweight, flexible, and durable nature of the panel provides a sleek modern alternative to heavier glass models

Low weight, non-penetrating mounting solutions can be used to take advantage of the lightweight panel characteristics

The manufacturer boasts superior low-sun angle and low light performance provide excellent energy yield

The low profile bypass diodes allow for maximum performance under shade conditions

The panel is protected by a weather resistant ETFE front sheet, a sealed junction box and protective back sheet providing a reliable and durable module.

Modules are built to meet and/or exceed UL standard 1703, IEC 61646 and IEC 61730 standards

Manufactured in a highly automated state of the art facility in Portland, Oregon USA

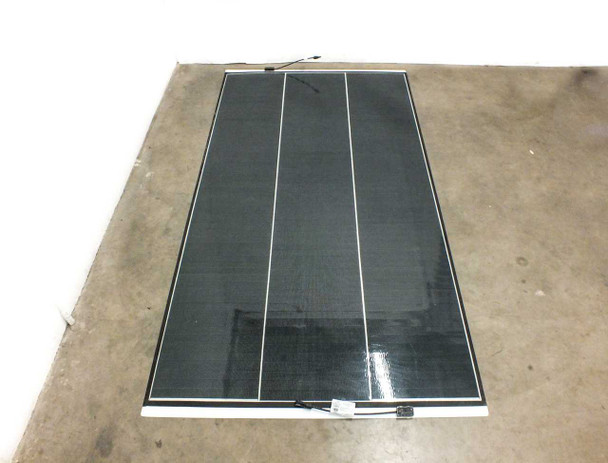

This is a very unique solar panel that was built by Solopower at their manufacturing facility in Portland, Oregon. This panel is made of 180 series connected CIGS flexible solar cells. Individually these cells were designed to produce a range of 1 to 1.5 watts.These are unique panels and are best described from the manufacturer's specification sheet that will be provided below. This listing will include key features of the panel, rated characteristics of the panel, and the details of this panel listing compared to our other models.



Condition: New

This is our 200 Watt rated SPL3 Series Panel and should perform at a reasonable range to the above mentioned specifications. The borders and color of the weatherproofing and cells may vary from the pictured panel above. All panels are listed in a new out of box condition. They have been stored in and outdoors during their lifetime. They have MC4 Connector Cables at opposite ends of the panel. Please view our photo set and contact us with any questions.
