SoloPower SP3L- 160 160 Watt Solar Panel 7' Battery Charging RV Boat Camping MC4 Connectors ETFE top sheet

Rare triple wide Solopower CIGS 160 Watt rated SPL3 Series Solar Panel.

This flexible roll able solar panel is just over 7 feet long and just under 4 feet wide and are very light and portable. These are perfect for RV rooftop installations for battery charging for long term storage and or backup power for camping and traveling on the road.

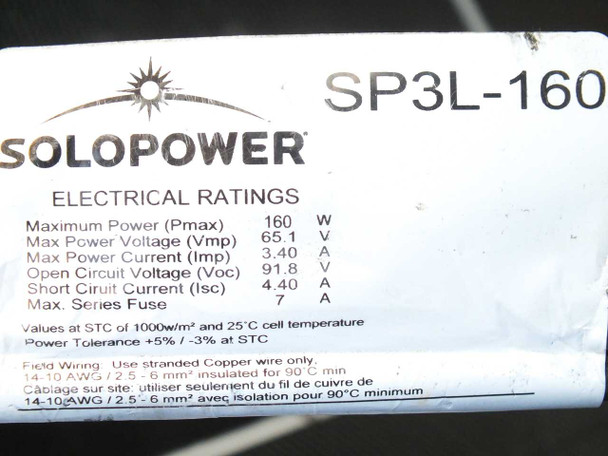

Electrical Characteristics

Peak Stats at 100% Factory-Perfect Simulated Sun

Rated Power: 160 W

Voltage at Pmax: 65.1 V

Current at Pmax: 3.4 A

Open-circuit Voltage: 91.8 A

Short-circuit current: 4.4 A

Max Series Fuse Rating 7 A

Max System Voltage: 600 VDC

Physical Characteristics

Length: 86.5 in (7.2 ft / 2.197 m)

Width: 45.1 in (3.75 ft / 1.146 m)

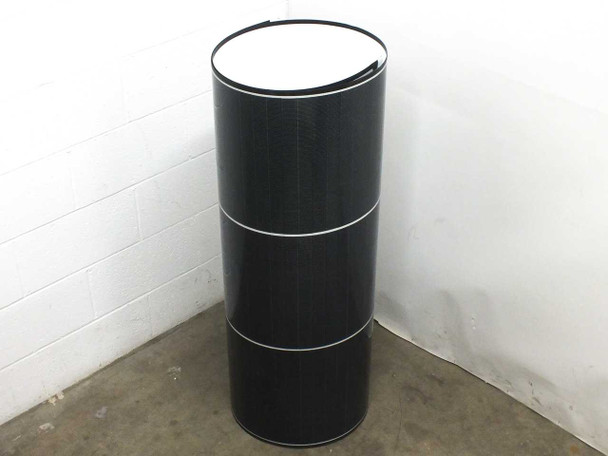

Rolled up Diameter: 16-18 inches

Thickness: 0.1 in (2.0 mm)

Weight:13.2 lbs (6.1 kg)

Key Features

The lightweight, flexible, and durable nature of the panel provides a sleek modern alternative to heavier glass models

Low weight, non-penetrating mounting solutions can be used to take advantage of the lightweight panel characteristics

CIGS Solar Cells offer superior low-sun angle and low light performance provide excellent energy yield

The low profile bypass diodes allow for maximum performance under shade conditions

Weather resistant ETFE front sheet, a sealed junction box and protective back sheet providing a reliable and durable module.

Modules are built to meet and/or exceed UL standard 1703, IEC 61646 and IEC 61730 standards

Manufactured in a highly automated state of the art facility in Portland, Oregon USA

This is a very unique solar panel that was built by Solopower at their manufacturing facility in Portland, Oregon. This panel is made of 180 series connected CIGS flexible solar cells. Individually these cells were designed to produce a range of 1 to 1.5 watts.These are unique panels and are best described from the manufacturer's specification sheet that will be provided below. This listing will include key features of the panel, rated characteristics of the panel, and the details of this panel listing compared to our other models.



Condition: Open Box

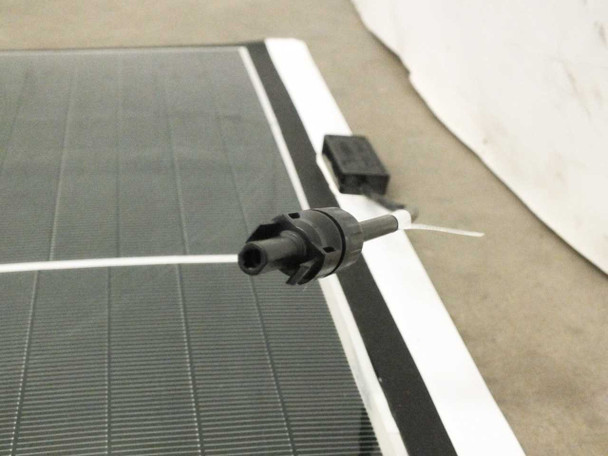

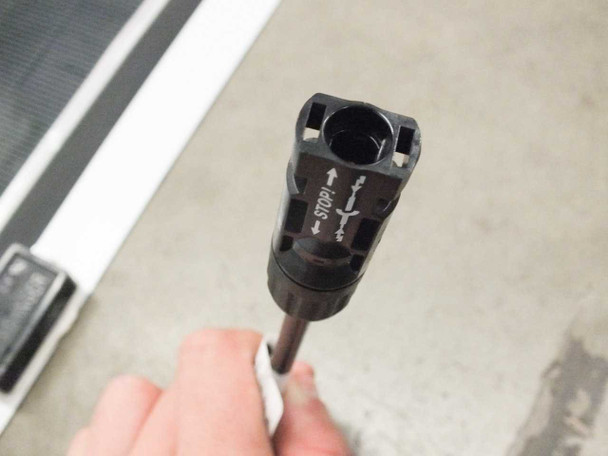

Rare 160 Watt SPL3 CIGS Solar Panel which is one of the last flexible CIGS panels made by Solopower. The borders and color of the weatherproofing and cells may vary from the pictured panel above. These are R&D panels that came from the Solopower facility in Portland Oregon when they closed in 2019. The Date of Manufacture is unknosn. Even though they are new and never sold they may have been used for testing or experimentation at the Solopower Facility and have scuffs and scrapes. They have MC4 Connector Cables at opposite ends of the panel. Please view our photo set and contact us with any questions.
