Description
Sola SDN 4-24-100 DIN Rail Power Supply 115/230VAC 24VDC 4A SolaHD Emerson
The Sola SDN 4-24-100 is a compact, fanless DIN rail power supply that converts 115/230VAC input to a regulated 24VDC output at up to 4A (96W). It features a universal voltage input that auto-ranges between 115VAC and 230VAC without manual switching, and is rated as a Limited Power Source Class 2 device. Also sold and recognized as the Emerson SDN 4-24-100, this unit is part of the popular SDN series from SolaHD.
Specifications & What's Included
- Model: Sola SDN 4-24-100 (also recognized as Emerson SDN 4-24-100)
- Input Voltage: 115/230VAC universal (auto-ranging)
- Input Current: 2.0A @ 115VAC / 1.1A @ 230VAC
- Input Frequency: 50-60Hz
- Output Voltage: 24VDC
- Output Current: 4A
- Output Power: 96W
- Power Source Rating: Limited Power Source Class 2

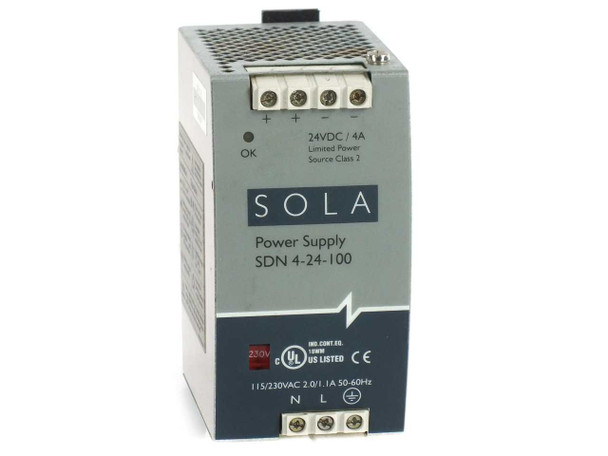

- Output Terminal Block: 4-position screw terminals (+, +, −, −)

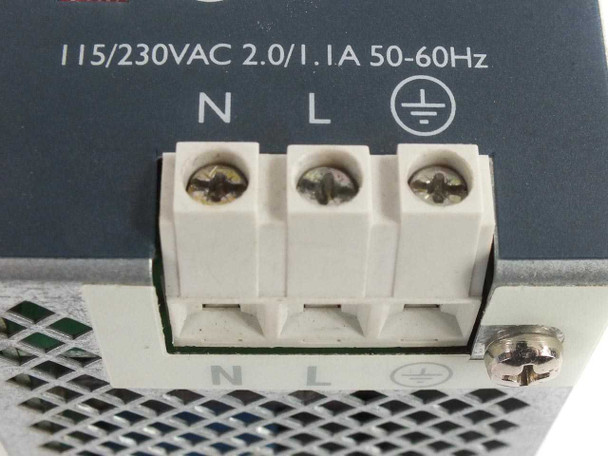

- Input Terminal Block: 3-position screw terminals (N, L, PE/Ground)

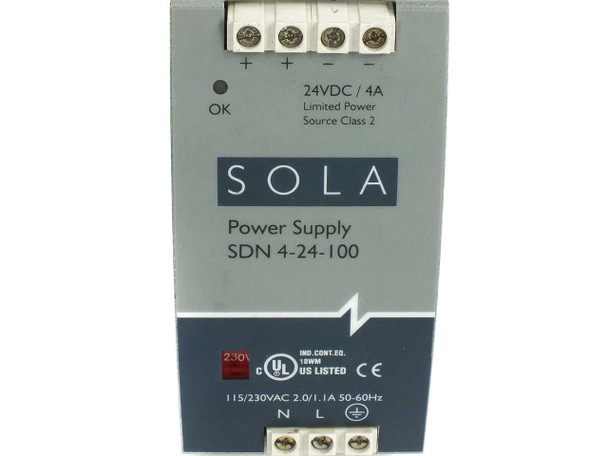

- OK Status LED indicator on front panel
- Cooling: Convection (fanless)
- Operating Temperature: 0°C to 60°C (32°F to 140°F)

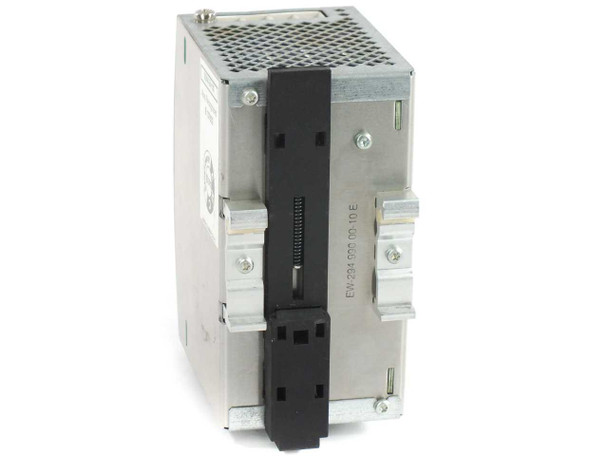

- Mounting: DIN rail
- Dimensions: 5" x 4" x 3"
- Country of Manufacture: Germany

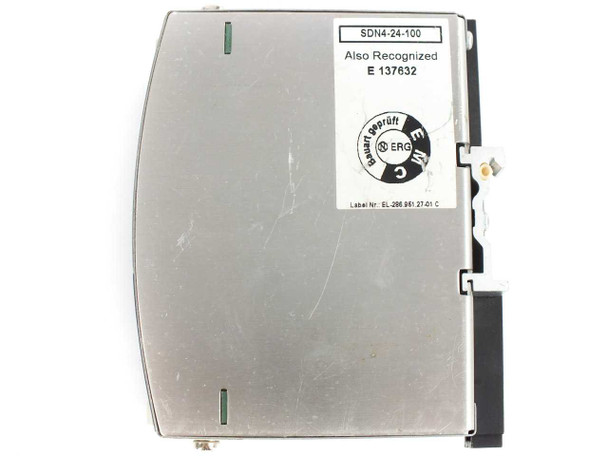

- Certifications: UL Listed, CE, UL Recognition E 137632
- Includes: Power supply unit only — no additional cables or accessories
Applications
DIN rail power supplies like the Sola SDN 4-24-100 are standard components in industrial control panels, machine automation systems, and programmable logic controller (PLC) enclosures. The 24VDC output is the most common voltage level used to power sensors, solenoids, relays, HMIs, and other field devices in industrial automation environments. The SDN series has been widely used in manufacturing, process control, building automation, and factory equipment throughout the 2000s and 2010s, and the SDN 4-24-100 specifically remains a common choice for panel builders needing a compact, reliable 96W supply on standard 35mm DIN rail. The universal input makes it suitable for both North American (115VAC) and European/international (230VAC) installations without rewiring. The fanless convection-cooled design reduces maintenance requirements in sealed enclosures.
This Sola SDN 4-24-100 DIN Rail Power Supply has been inspected and appears to be in good used condition. The housing is clean with only minor cosmetic wear typical of used industrial equipment. The output and input terminal blocks are intact and show no damage. The OK status LED and all labels are visible and legible. Please view our photo set and contact us if you have any questions.
Warranty Information
Additional Information
Brand: |
Sola / SolaHD |
Model: |
SDN 4-24-100 |
MPN: |
SDN4-24-100 |
SKU: |
52238 |
Type: |
DIN Rail Power Supply |
Also Sold As: |
Emerson SDN 4-24-100 |
Input Voltage: |
115/230VAC (Universal) |
Input Current: |
2.0A @ 115VAC / 1.1A @ 230VAC |
Input Frequency: |
50-60Hz |
Output Voltage: |
24VDC |
Output Current: |
4A |
Output Power: |
96W |
Power Source Class: |
Limited Power Source Class 2 |
Output Terminals: |
4-position screw terminal block (+, +, -, -) |
Input Terminals: |
3-position screw terminal block (N, L, PE) |
Mounting: |
DIN Rail |
Cooling: |
Convection (fanless) |
Country/Region of Manufacture: |
Germany |
Certifications: |
UL Listed, CE, E 137632 |
Dimensions: |
5" x 4" x 3" |
Seller Notes: |
Power supply only — no additional cables or accessories included. |
Condition Notes: |
This Sola SDN 4-24-100 DIN Rail Power Supply has been inspected and is in good used condition. Housing is clean with minor wear. Terminal blocks are intact. Please view our photos and contact us with any questions. |
