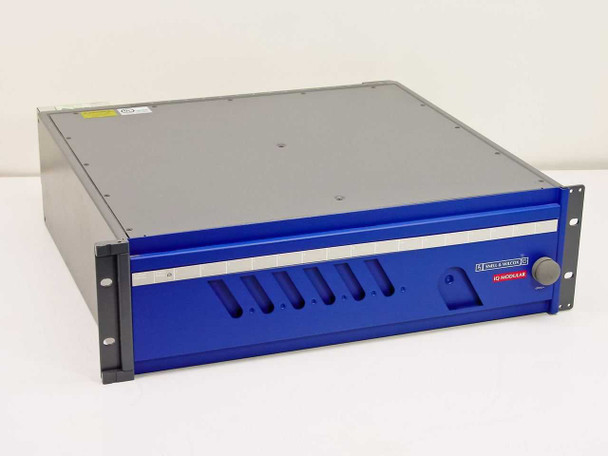

  • Snell & Wilcox IQH3N-P IQ Modular DCO DA Enclosure – front 3/4 view showing blue faceplate and rack ears
  • Snell & Wilcox IQH3N-P front panel closeup – RollCall Address label, Frame Status LED (green), slot indicators 1 and 2
  • Snell & Wilcox IQ Modular front panel closeup – Snell & Wilcox logo badge and IQ MODULAR red label with door knob
  • IQH3N-P enclosure with front door open showing internal card cage and dual power supply modules
  • Internal view of IQH3N-P card cage – IQCIF RollCall Gateway, IQDCO SDI Change-Over, and two IQDSDR Serial Reclocker cards installed with dual PSUs visible
  • Snell & Wilcox IQH3N-P rear/top 3/4 view showing BNC output array, rear panel labels, and PSU fan
  • IQH3N-P rear panel closeup – DA 2, DA 1, TEST, PRIMARY BNC output banks, DB9 connectors, dual IEC AC inlets, and Powerbox PSU fan
  • IQH3N-P bottom edge label – IQ MODULAR DCO & DA designation and model IQH3N-P on yellow label
  • IQH3N-P yellow model label closeup – model: IQH3N-P, serial no: 4203019
  • IQDSDR Serial Digital Distribution Amplifier card PCB – Snell & Wilcox / Liss Research, RMPN RDSDR2Y, rate select SW1 (143Mb/177Mb/270Mb), barcode S33021892
  • IQDCO Change Over Unit card PCB – Snell & Wilcox / Liss Research, IQxCO, RMPN RDCO1Y, XCO V5.2.6 firmware chip, Philips ICs visible
  • IQDCO card PCB reverse side – barcode label SAAN RDC01Y, S32022804, component detail view
  • IQCIF RollCall Gateway card PCB – Snell & Wilcox / Liss Research, RMPN RCIF3U1Y, Altera FLEX EPF8282ALC84-4 FPGA, SiSGe IC, CMACKD 20.000 crystal
  • IQCIF RollCall Gateway card reverse side – barcode S32014383, SAAN RCIF3U1Y label, 94V-0 PCB marking
  • Powerbox PBUK1137/UL power supply label – 100-240V input, 47-63Hz, 3A; +7.5V/14A and -7.5V/0.7A outputs; UL and CE marks; S/N 02202207
  • IQH3N-P internal chassis label – SAAN 2398300A, S32015174, WO418525 barcode label on metal frame rail
$950.00
Was: $1,900.00
Current Stock: 1

Sold Out

Description

Snell & Wilcox IQH3N-P IQ Modular DCO DA Enclosure IQCIF IQDCO IQDSDR SDI

3U rackmount broadcast frame for SDI signal distribution, changeover, and reclocking. Modular architecture supports multiple interface cards for routing and processing serial digital video in television facilities.

Specifications & What's Included

  • Model: IQH3N-P; Form Factor: 3U Rackmount
  • Included Cards: IQCIF (RollCall Gateway), IQDCO (SDI Changeover), 2x IQDSDR (Distribution Amplifier/Reclocker), IQDSR-2, IQDCO-2 (GPI/O Output)
  • Dual Powerbox PSUs (100-240V AC, 47-63Hz, 3A)
  • Supported SDI Rates: 143Mb, 177Mb, 270Mb (software selectable)
  • Control: RollCall network compatible
  • Rear Connectors: BNC (DA outputs, test, primary), DB9, IEC AC inlets

Applications

Used in broadcast SDI routing, distribution, and signal reclocking applications. The IQ modular system integrates with RollCall control networks for centralized management of video signal paths. Changeover functionality enables failover between primary and backup feeds. Typical deployment in television master control rooms, transmission infrastructure, and facility-wide signal distribution.

Condition: Used
This Snell & Wilcox IQH3N-P IQ Modular DCO & DA Enclosure was pulled from an active broadcast facility where it was in use and functional. It has been inspected and is in good used condition overall. The blue front faceplate and chassis show normal wear consistent with rack use. The Frame Status LED was observed green in the photos. All cards — IQCIF RollCall Gateway, IQDCO SDI Change-Over, two IQDSDR Serial Reclockers, IQDSR-2 I/O cards, and IQDCO-2 GPI/O card — are installed and appear intact. Both Powerbox dual power supplies are present and seated. Please view our photo set and contact us if you have any questions.
