Shimpo

Shimpo DT-205L LCD Laser Tachometer Length Recorder Contact Non-Contact w/ Case

(No reviews yet) Write a Review
SKU:
48242
MPN:
DT-205L
Condition:
Used
Availability:
Currently out of stock — contact us for availability.
Weight:
2.00 LBS
Shipping:
Calculated at Checkout

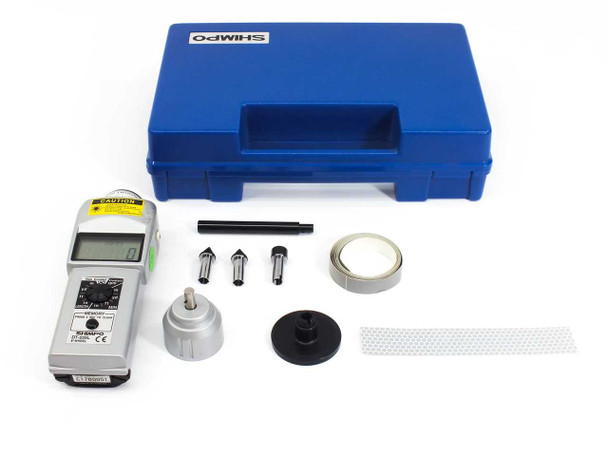

  • Shimpo DT-205L laser tachometer shown with full accessory kit: blue carrying case, cone adapters, 200L adapter, 6-inch master wheel, and reflective tape strip
  • Shimpo DT-205L tachometer stored in open blue foam-lined carrying case with all accessories fitted in custom cutouts
  • Shimpo DT-205L tachometer front-left angle showing LCD display, mode selector dial, MEMORY label, and laser caution sticker
  • Shimpo DT-205L tachometer top-down rear angle showing LCD display reading, mode selector, and green laser aperture end — green asset tag visible on body
  • Shimpo DT-205L tachometer front panel close-up showing LCD display reading RPM 0, mode selector dial with contact/non-contact positions, and unit markings (m, yd, ft, in)
  • Shimpo DT-205L 6-inch master wheel contact adapter — front face showing rubber wheel surface and center spindle
  • Shimpo DT-205L 6-inch master wheel contact adapter — rear angle showing spindle shaft and housing detail
  • Shimpo DT-205L black disk contact adapter (200L adapter) — top view showing large flat rubber disk and center hub
  • Three Shimpo DT-205L cone adapters of varying sizes lined up — pointed rubber tips and slotted metal shafts visible
  • Shimpo DT-205L 200L extension adapter rod — black cylindrical rod shown in full length with small pin visible at one end
  • Shimpo DT-205L LCD Laser Tachometer and Length Recorder Contact / Non-Contact
$101.00
Was: $275.00

This item is temporarily unavailable. Please view our recommended, in-stock alternatives directly below.

Description

Shimpo DT-205L LCD Laser Tachometer Length Recorder Contact Non-Contact w/ Case

The Shimpo DT-205L is a handheld dual-mode tachometer and length recorder capable of both contact and non-contact rotational and surface speed measurements. In non-contact mode, it uses a laser beam aimed at reflective tape to measure RPM and surface speed from a distance of 5 to 14 feet, keeping the operator safely clear of moving machinery. In contact mode, the spindle tip or wheel adapter physically engages the rotating shaft or moving surface for direct measurement. The unit records measurements in memory and displays results on a large LCD screen.

Specifications & What's Included

  • Model: Shimpo DT-205L
  • Display: LCD
  • Measurement modes: RPM, mPM (meters per minute), YPM (yards per minute), FPM (feet per minute), IPM (inches per minute)
  • Length measurement units: Inches, Feet, Yards, Meters
  • Non-contact measurement range: 5 to 14 feet (laser with reflective tape)
  • Contact measurement: via spindle tip or wheel adapter
  • Memory function: stores last/max/min readings
  • Form factor: handheld, pistol-grip body
  • Certifications: CE marked
  • Included accessories:
  • — Blue foam-lined hard carrying case
  • — 6-inch master wheel contact adapter
  • — 200L extension adapter rod
  • — Three cone adapters (varying sizes)
  • — Reflective tape strip (for non-contact laser mode)
  • — Original Shimpo DT-205L manual

Applications

The DT-205L is used across manufacturing, maintenance, and quality control environments where rotational speed or surface velocity needs to be measured quickly and accurately. In non-contact mode, it is commonly used on motors, spindles, fans, rollers, and other rotating machinery where touching the surface is impractical or unsafe. The contact mode with wheel adapters is suited for measuring linear surface speeds on conveyors, webs, films, and paper or textile lines — the length recording function makes it especially useful for measuring run lengths in production processes. This type of dual-mode tachometer is standard equipment in machine shops, packaging lines, printing operations, HVAC maintenance, and general industrial and lab settings. Shimpo (a brand of Nidec-Shimpo) has long been a recognized name in precision tachometry and torque measurement instrumentation.

Condition: Used
This Shimpo DT-205L LCD Laser Tachometer and Length Recorder has been inspected and appears to be in good used condition. The unit shows some light surface scuffing on the body — visible in the photos — consistent with normal use in a measurement or industrial environment. All included accessories are present: carrying case, cone adapter, 200L adapter, 6-inch master wheel, reflective tape, and the original manual. The carrying case and foam inserts are intact. Please view our photo set and contact us if you have any questions.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
Shimpo
Model:
DT-205L
MPN:
DT-205L
Type:
Contact / Non-Contact Laser Tachometer & Length Recorder
SKU:
48242
Measurement Modes:
RPM, mPM, YPM, FPM, IPM; Lengths in Inches, Feet, Yards, Meters
Non-Contact Range:
5 to 14 ft (laser)
Display:
LCD
Measurement Method:
Contact and Non-Contact (laser)
Form Factor:
Handheld
Seller Notes:
Includes carrying case, cone adapter, 200L adapter, 6" master wheel, reflective tape, and original manual.
Included Accessories:
Carrying case, cone adapter, 200L adapter, 6" master wheel, reflective tape, original manual
Country/Region of Manufacture:
Japan
Condition Notes:
This Shimpo DT-205L Laser Tachometer has been inspected and is in good used condition with light surface scuffing. All accessories included: case, cone adapter, 200L adapter, master wheel, reflective tape, and original manual.
