Potter & Brumfield W92-X112-25 Circuit Breaker 25A 277VAC 2-Pole Panel Mount
The Potter & Brumfield W92-X112-25 is a 2-pole, 25-amp hydraulic-magnetic circuit breaker from the W92 series, rated for 277VAC MAX at 50/60Hz. It features a rocker/toggle switch actuator on each pole and stud-type LINE and LOAD terminals on the rear, making it suitable for panel-mount applications in industrial and commercial electrical equipment. Curve 2 designates its time-delay trip characteristic, providing a moderate response profile suited for resistive and moderate inductive loads.
Specifications & What's Included
- Model: W92-X112-25
- Series: W92
- Number of Poles: 2
- Current Rating: 25A
- Voltage Rating: 277VAC MAX
- Frequency: 50/60Hz
- Trip Curve: Curve 2
- Mounting Type: Panel Mount
- Actuator Type: Toggle / Rocker Switch (one per pole)

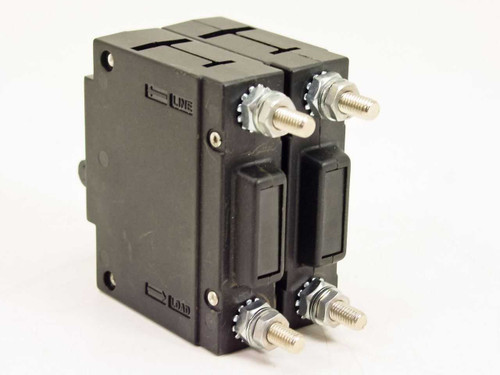

- Connection Type: Stud / screw terminals — LINE and LOAD labeled on rear
- Certifications: UL, CSA (markings visible on label)
- Country of Manufacture: USA
- Includes: Circuit breaker only — no additional hardware
Applications
The Potter & Brumfield (now TE Connectivity) W92 series is a widely used family of hydraulic-magnetic circuit breakers found in industrial control panels, power distribution equipment, marine electrical systems, and commercial HVAC and machinery. The hydraulic-magnetic trip mechanism provides consistent overcurrent protection across a wide temperature range without the thermal drift associated with bimetallic designs — a key advantage in environments subject to temperature extremes. The 2-pole configuration simultaneously interrupts both conductors of a single-phase circuit, which is standard practice in many industrial and 277VAC lighting panel applications. The W92 series has been a staple in North American and international industrial panel design for decades and remains in active production and widespread use today, with replacement and repair demand driven by the large installed base of legacy equipment.
This Potter & Brumfield W92-X112-25 2-pole panel mount circuit breaker has been inspected and is in good used condition. It was pulled from a working environment where it was previously in service. The housing is intact with no visible cracks or damage; the toggle mechanisms move freely and the stud terminals are clean. Minor surface scuffs typical of used industrial hardware are present. Please view our photo set and contact us if you have any questions.
Warranty Information
Additional Information
Brand: |
Potter & Brumfield |
Model: |
W92-X112-25 |
MPN: |
W92-X112-25 |
SKU: |
39594 |
Type: |
Circuit Breaker |
Series: |
W92 |
Current Rating: |
25A |
Voltage Rating: |
277VAC MAX |
Frequency: |
50/60Hz |
Number of Poles: |
2 |
Trip Curve: |
Curve 2 |
Mounting Type: |
Panel Mount |
Connection Type: |
Stud / Screw Terminal |
Certifications: |
UL, CSA |
Country/Region of Manufacture: |
United States |
Seller Notes: |
Circuit breaker only — no additional hardware or accessories included. |
Condition Notes: |
This Potter & Brumfield W92-X112-25 25A circuit breaker has been inspected and is in good used condition. Pulled from a working environment. Housing intact, terminals clean, toggles move freely. Normal surface wear. |
