Description
PictureTel System 4000EX Electronics Module Video Conference Processor Loaded
Desktop tower video conference processor and electronics module designed for the PictureTel System 4000EX videoconferencing system. Powers on and produces video output with installed processor, graphics, audio, and video modules.
Specifications & What's Included
- Model: PictureTel System 4000EX (MPN: S4000EX)
- Installed modules: vCP, DI, Video NTSC, Graphics, Audio

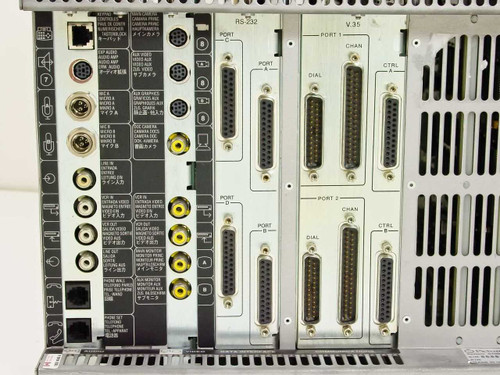

- Video I/O: NTSC composite, S-Video, RCA, Main/Aux monitors, VCR connections
- Audio: Dual microphone inputs (DIN), line in/out, external amp, audio aux
- Network/ISDN: RJ-45 interface; multiple DB-25 data ports
- Telephone: RJ-11 phone set and wall connections
- Interfaces: RS-232, RJ-11, RJ-45, RCA, S-Video, DIN
- Power: IEC C14 inlet; rear-mounted exhaust fan
Applications
The System 4000EX was used for point-to-point and multipoint videoconferencing in corporate and institutional settings. This processor module handles video encoding/decoding, audio processing, graphics overlay, and system control for video conference endpoints. Compatible with PictureTel's System 4000EX videoconferencing platform and ISDN networks. Typically deployed as the core electronics module in conference rooms and telepresence installations.
This PictureTel System 4000EX Electronics Module has been inspected and is in good used condition. It powers on and produces video output as shown in the photo set. The onboard diagnostic screen (Diagnostics Rev 2.80) shows the installed modules — Slot 4 vCP, Slot 5 DI, Slot 6 Video NTSC, Slot 7 Graphics, and Slot 8 Audio — all returning PASS results; Slot 0 Backplane reports FAIL on Test 99, which prospective buyers should note and evaluate for their intended use. The chassis shows normal wear consistent with age and prior use. The rear I/O panel and port connectors appear intact and undamaged. Please view our photo set and contact us if you have any questions. Please note: We have multiple units in stock — yours may not be the one shown in the photos, however, it will be similar in condition and function.
Warranty Information
Additional Information
Brand: |
PictureTel |
Model: |
System 4000EX |
MPN: |
S4000EX |
Type: |
Video Conference Processor / Electronics Module |
SKU: |
30577 |
Condition: |
Used – Inspected and Tested |
Seller Notes: |
Loaded with cards; powers on and produces video output |
Form Factor: |
Desktop Tower |
Country/Region of Manufacture: |
United States |
Installed Modules: |
vCP, DI, Video NTSC, Graphics, Audio |
Diagnostic Result: |
Slots 4-8 PASS; Slot 0 Backplane FAIL Test 99 |
Diagnostics Version: |
Rev 2.80 |
Interface Types: |
RS-232, RJ-11, RJ-45, RCA, S-Video, DIN |
Video Output: |
NTSC composite (RCA), Main Monitor, Aux Monitor, VCR Out |
Video Input: |
VCR In, Magneto Video, Aux Video, Main Camera, Doc Camera |
Audio Connections: |
Mic A, Mic B (DIN), Line In, Line Out, Ext Amp, Audio Aux |
Data Ports: |
Multiple DB-25 ports: Port A/B/C/D, Dial 1/2, Chan, Ctrl |
Telephone Ports: |
Phone Set (RJ-11), Phone Wall (RJ-11) |
Network/ISDN Interface: |
RJ-45 (visible rear panel) |
Compatible With: |
PictureTel System 4000EX videoconferencing system |
Power Connector: |
IEC C14 (standard 3-prong AC inlet) |
Cooling: |
Rear-mounted exhaust fan, side vented chassis |
Condition Notes: |
PictureTel System 4000EX Electronics Module powers on and produces video output. Modules (vCP, DI, Video NTSC, Graphics, Audio) PASS diagnostics; Slot 0 Backplane FAIL Test 99. Good used condition. Contact us with questions. |
