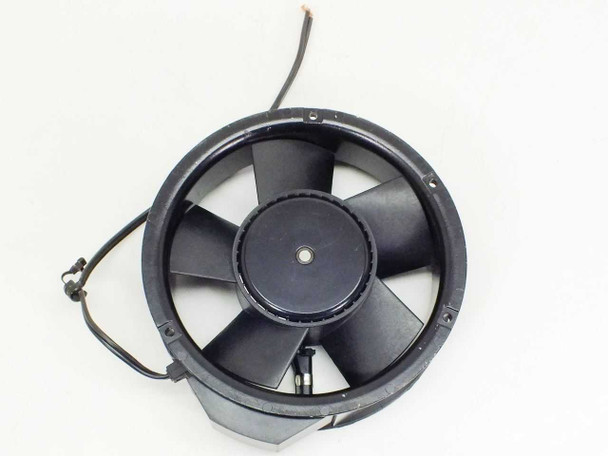

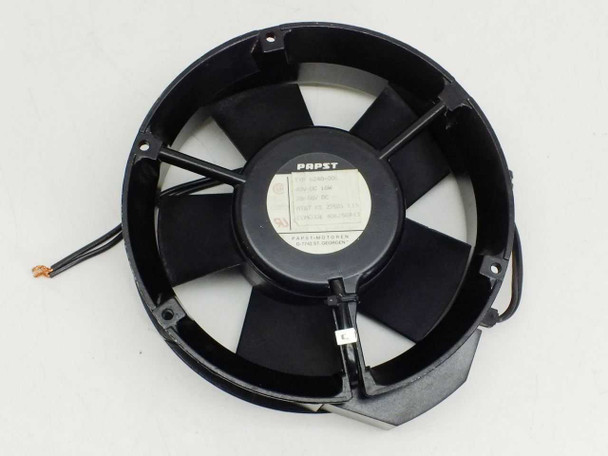

Papst 6248-006 160mm DC Fan 48V 16W 28-56V Rackmount Enclosure Cooling
The Papst 6248-006 is a 160mm axial DC cooling fan manufactured by Papst-Motoren of St. Georgen, Germany. It operates on a 48V DC nominal supply with an input range of 28–56V DC, drawing 16W. The fan uses bare wire leads for direct wiring into equipment. This unit was pulled from a rackmount enclosure where it served as a system cooling fan.
Specifications & What's Included
- Manufacturer: Papst-Motoren, D-7742 St. Georgen, Germany
- Model / Type: 6248-006
- Fan diameter: 160mm
- Fan dimensions: 8 x 7 x 2 inches
- Nominal voltage: 48V DC
- Operating voltage range: 28–56V DC
- Power consumption: 16W
- Current type: DC
- Termination: Bare wire leads
- AT&T KS standard: KS 22501 L15
- COMCODE: 406256743
- Country of manufacture: Germany
- Fan only — no additional hardware or mounting hardware included
Applications
Papst-Motoren (now ebm-papst) axial DC fans of this series are widely used for forced-air cooling in rackmount enclosures, telecommunications equipment, network infrastructure, and industrial control cabinets. The 28–56V DC input range makes this fan well suited to -48V DC telecom power plant environments, which are standard in central office and carrier-grade equipment. The AT&T KS 22501 designation indicates this fan was qualified for use in AT&T / Bell System telecommunications infrastructure. It is a common replacement or spare fan for legacy telecom racks, rectifier cabinets, and similar DC-powered enclosures still in operation today.

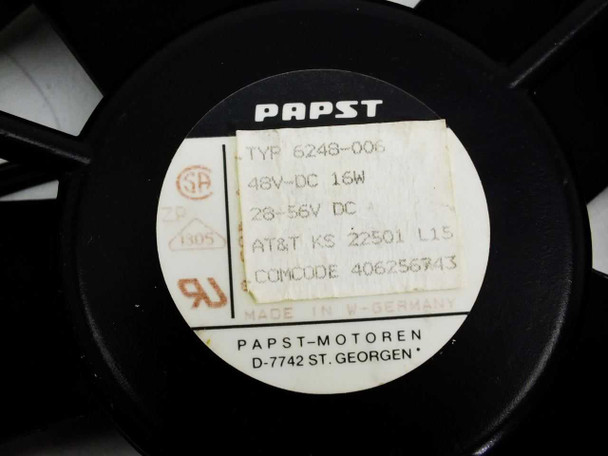

This Papst 6248-006 160mm 48V DC cooling fan has been inspected and appears to be in good used condition. It was pulled from a rackmount enclosure where it was previously in service. The fan frame and blades show normal wear consistent with prior use; the hub label is intact and legible. Wire leads are present. Please view our photo set and contact us if you have any questions.
Warranty Information
Additional Information
Brand: |
Papst |
Model: |
6248-006 |
MPN: |
6248-006 |
Type: |
Axial DC Cooling Fan |
SKU: |
45881 |
Voltage Rating: |
48V DC (28-56V DC operating range) |
Power Rating: |
16W |
Fan Size / Diameter: |
160mm |
Fan Dimensions: |
8 x 7 x 2 inches |
Current Type: |
DC |
Input Voltage Range: |
28-56V DC |
Connector / Termination: |
Bare wire leads |
Application: |
Rackmount Enclosure Cooling |
AT&T KS Standard: |
AT&T KS 22501 L15 |
COMCODE: |
406256743 |
Country/Region of Manufacture: |
Germany |
Seller Notes: |
Fan only — no additional hardware included. |
Condition Notes: |
This Papst 6248-006 160mm 48V DC fan has been inspected and appears to be in good used condition. Pulled from a rackmount enclosure. Normal wear; wire leads present. Please view photos and contact us with any questions. |
California Prop 65 Warning: |
WARNING: This product can expose you to chemicals including lead and lead compounds, and DEHP (a phthalate), which are known to the State of California to cause cancer and birth defects or other reproductive harm. Go to P65Warnings.ca.gov |
