P Energy L150A Solar PV Vacuum Laminator 1500x1000mm 22KW 480V 3Ph EVA

P Energy L150A Solar PV Vacuum Laminator 1500x1000mm 22KW 480V 3Ph EVA

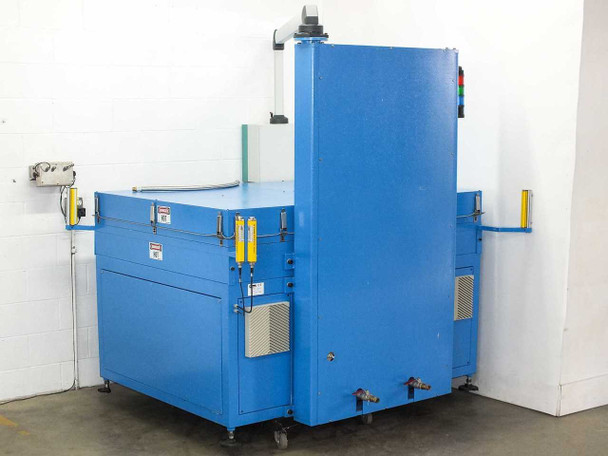

The P Energy L150A is a fully automated heated vacuum laminator designed for the production of crystalline silicon and thin-film PV solar panels. Manufactured in Italy in 2008, this machine encapsulates solar cell strings between glass, backsheet, and EVA film using a precisely controlled heat-and-vacuum cycle. The L150A features a 1500mm × 1000mm aluminum heating plate with 14 independent heating zones and supports Standard, FAST, and Ultra Fast EVA cure profiles, giving it flexibility across a wide range of encapsulant formulations.

Specifications & What's Included

• Manufacturer: P Energy (P Energy S.r.l., Italy)
• Model: L150A
• Year of Manufacture: 2008
• Usable Heating Plate Area: approx. 1500mm × 1000mm
• Maximum Panel Thickness: 40mm
• Number of Heating Zones: 14
• Heating Plate Material: Aluminium, thickness ≥ 20mm
• Heat Up / Cool Down Rate: ≥ 15 K/min
• Type of Heating: Electrical
• EVA Cure Profiles Supported: Standard, FAST, Ultra Fast
• Vacuum Pump: DVP LC.105, 100 m³/h (noise-reduced model)
• Control System: Siemens Simatic Touch Panel HMI
• HMI Model: Siemens TP177B PN/DP-6 CSTN (P/N 6AV6 642-0BA01-1AX0), Made in Germany

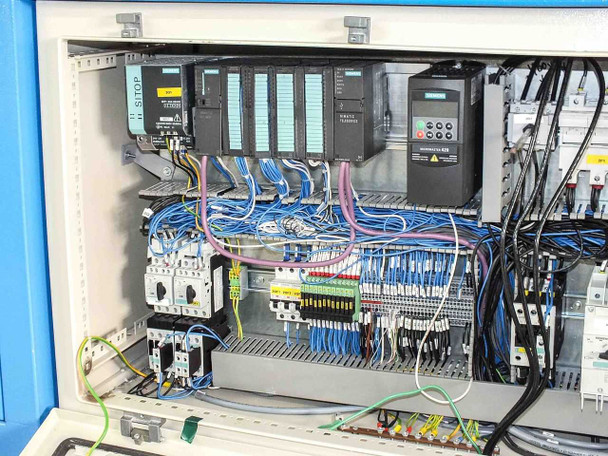

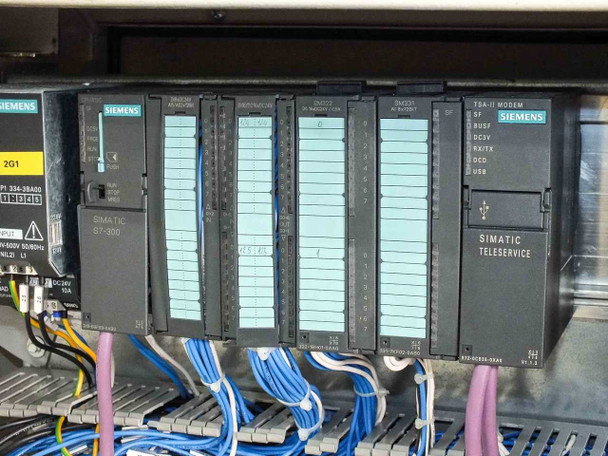

• PLC: Siemens Simatic S7-300 series with multiple digital I/O modules

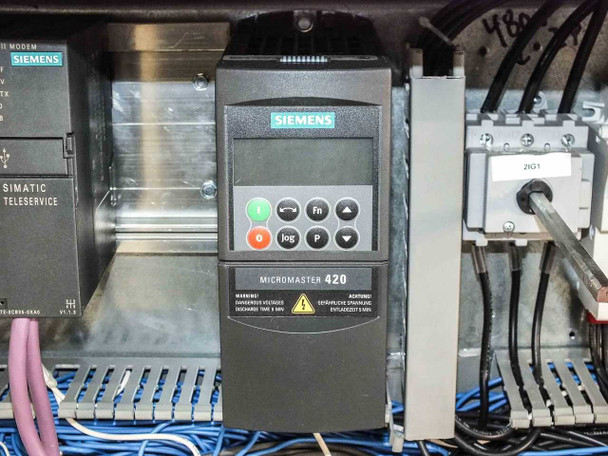

• Variable Frequency Drive: Siemens Micromaster 420
• Remote Service Module: Siemens Simatic Teleservice / TSA-II modem

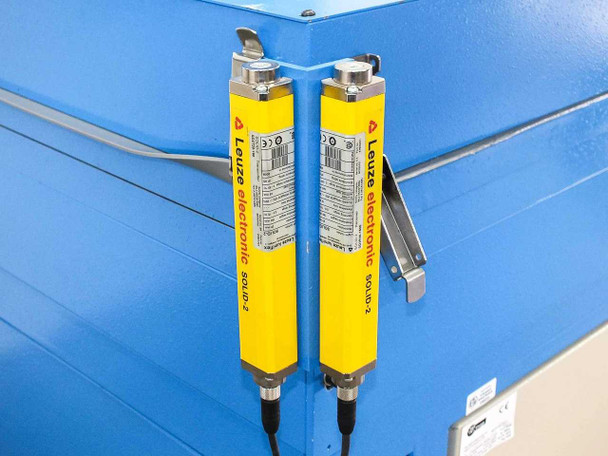

• Safety Light Curtains: Leuze Lumiflex SOLID-2 (resolution 20mm, sensing range 0.5–15m, supply 24VDC), manufactured 2008 — two pairs
• Status Indicator: Siemens three-color stack light (red/green/blue)

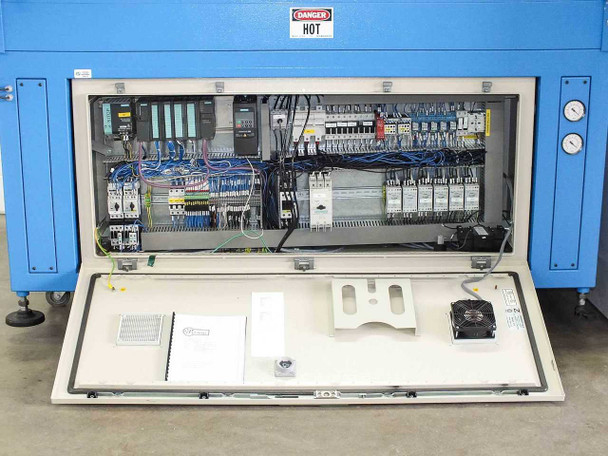

• Electrical Enclosure: Zanardo S.p.A. Series VFR, NEMA Type 1/12, IP55, TÜV certified, UL File No. E238294
• Vacuum Gauges: Two Wika EN 837-1 bar/psi vacuum gauges
• Power: 480V, 3-Phase, 60Hz
• Power Rating: 22 KW
• Footprint: Approx. 73" wide × 60" deep
• Mobility: Caster wheels with leveling feet

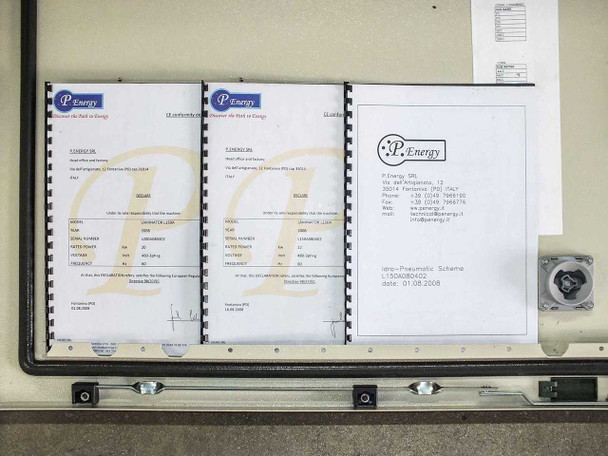

• Includes: Original P Energy factory documentation packet (test certificates, Varo-Pneumatic Scheme dated 01.08.2008) retained inside panel door; braided stainless steel accessory hose with brass fittings and clamp

Applications

Solar panel vacuum laminators are the core processing equipment in PV module manufacturing lines. The lamination step bonds the solar cell stack — typically consisting of a glass superstrate, EVA encapsulant film, crystalline silicon cells or thin-film substrate, a second EVA layer, and a polymer backsheet — into a durable, weather-resistant module. The machine draws a vacuum to remove air and outgassing products from between the layers, then applies heat and pressure through the membrane to cure the EVA and create a hermetic seal. The 14-zone heated plate on the L150A allows the temperature profile across the work area to be tuned zone by zone, which is important for uniform lamination quality across larger panels. Support for multiple EVA cure speeds (Standard, FAST, and Ultra Fast) means the machine can accommodate both conventional and newer rapid-cure encapsulants, making it compatible with a range of production throughput requirements. A machine of this size handles panels up to approximately 60-cell or 72-cell format (roughly 1000mm × 1500mm), which covers the most common residential and commercial module sizes of its era. The Siemens S7-300 PLC and Simatic HMI provide programmable recipe management and process data logging. This type of equipment is used by solar module manufacturers, research institutions, and pilot-line operators producing crystalline silicon, thin-film, or specialty PV modules.
