Omega SCASS-020U-60-SHX Type K Thermocouple Probe Pair 60" Ceramic Sheath Kit
This is a matched pair of Omega Engineering SCASS-020U-60-SHX sub-miniature Type K thermocouple probes, each fitted with a 60-inch (5-foot) ceramic sheath and a quick-disconnect SHX-series connector. The set ships in its original aluminum foam-lined carry case and includes all original accessories. The assembly meets Special Limits of Error (SLE) per EN 60584-2 Tolerance Class 1, indicating tighter accuracy than standard Type K tolerances.
Specifications & What's Included
- Model: Omega SCASS-020U-60-SHX
- Thermocouple type: Type K (yellow quick-disconnect connectors)
- Sheath material: Ceramic
- Sheath length: 60 inches (5 feet)
- Connector style: Sub-mini quick-disconnect (SHX series)
- Accuracy standard: EN 60584-2 Tolerance Class 1 — Special Limits of Error (SLE)
- Country of manufacture: USA
- QTY 2 — Omega SCASS-020U-60-SHX Type K ceramic sheath thermocouple probes

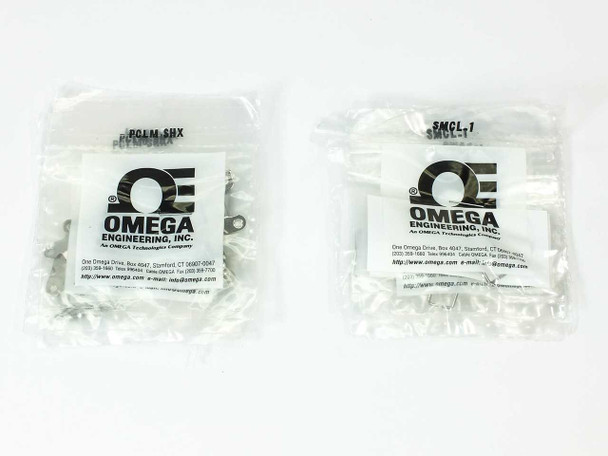

- QTY 5 — Omega SMCL-1 safety clips (in sealed accessory bag)
- QTY 4 — Omega PCLM-SHX cable clamps (in sealed accessory bag)
- Aluminum foam-lined carry case
Applications

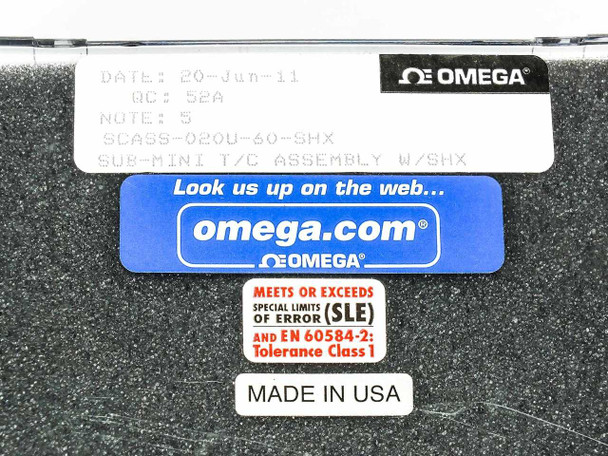

Type K thermocouples are the most widely used thermocouple type in laboratory and industrial settings, covering a broad temperature range (roughly −200 °C to +1260 °C depending on sheath and insulation). The ceramic sheath on the SCASS-020U-60-SHX makes these probes well-suited for high-temperature environments where metallic sheaths would oxidize or corrode — common applications include kiln and furnace monitoring, ceramic firing, glass processing, and high-temperature chemical or materials research. The 60-inch sheath length allows the sensing junction to reach deep into process chambers, ovens, or reactors while keeping the connector and instrumentation at a safe distance from the heat source. The SHX quick-disconnect connector is Omega's sub-miniature format, compatible with Omega's sub-mini panel jacks and extension cables, making probe swaps fast without recalibrating the wiring. The SMCL-1 safety clips secure the connector against accidental disconnection, and the PCLM-SHX cable clamps provide strain relief at the probe body — both standard accessories for permanent or semi-permanent installations. This kit dates from 2011 based on the case label.
This Omega SCASS-020U-60-SHX Type K Thermocouple Probe Pair has been inspected and is in good used condition. Both probes show light handling wear consistent with prior use; the ceramic sheaths and quick-disconnect connectors appear intact with no visible damage. The aluminum carry case has minor surface scuffs but closes and latches securely. Accessory bags containing the SMCL-1 safety clips and PCLM-SHX cable clamps appear unopened. Please review our photos and contact us with any questions.
Warranty Information
Additional Information
Brand: |
Omega Engineering |
Model: |
SCASS-020U-60-SHX |
MPN: |
SCASS-020U-60-SHX |
SKU: |
49109 |
Type: |
Thermocouple Temperature Probe |
Thermocouple Type: |
Type K |
Sheath Material: |
Ceramic |
Sheath Length: |
60 inches |
Connector Type: |
Quick Disconnect (Sub-Mini SHX) |
Quantity of Probes: |
2 (Pair) |
Standards: |
EN 60584-2 Tolerance Class 1 (SLE) |
Country/Region of Manufacture: |
United States |
Manufacture Date: |
20-Jun-11 |
Included Accessories: |
5x Omega SMCL-1 Safety Clips, 4x PCLM-SHX Cable Clamps |
Application: |
High-temperature laboratory and industrial measurement |
Seller Notes: |
Includes 2 probes, 5x SMCL-1 safety clips, 4x PCLM-SHX cable clamps, and aluminum carry case. |
Condition Notes: |
This Omega SCASS-020U-60-SHX Type K Thermocouple Probe Pair has been inspected and is in good used condition. Probes and connectors appear intact; case shows minor surface scuffs. Accessory bags appear unopened. Please contact us with any questions. |
California Prop 65 Warning: |
WARNING: This product can expose you to chemicals including lead and lead compounds, and DEHP (a phthalate), which are known to the State of California to cause cancer and birth defects or other reproductive harm. Go to P65Warnings.ca.gov |
