Nicolet Biomedical Viking Select EMG Electromyograph Neuro Diagnostic System

Nicolet Biomedical Viking Select EMG Electromyograph Neuro Diagnostic System v7.5

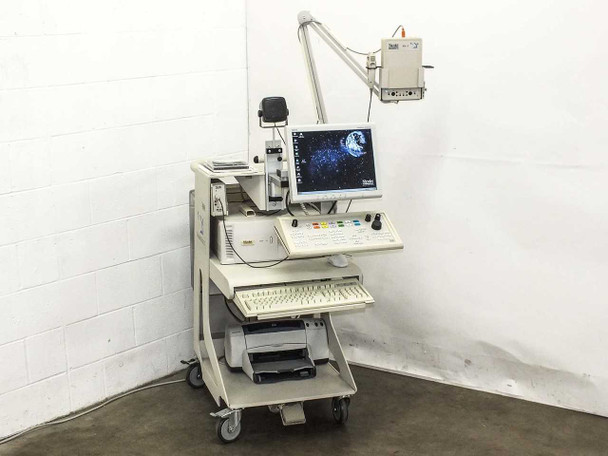

The Nicolet Biomedical Viking Select is a complete, integrated electromyography (EMG) and nerve conduction study (NCS) workstation designed for clinical neurophysiology. The system combines a dedicated signal acquisition amplifier, an isolated electrical stimulator, a purpose-built control panel, a host CPU, and display into a single self-contained mobile cart — everything a neurophysiology lab needs to perform EMG, NCS, and evoked potential studies from one unit. This listing includes all major components as photographed and described below.

Specifications & What's Included

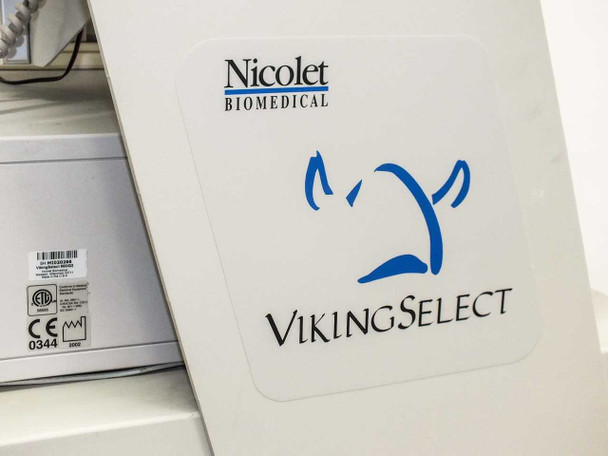

• System: Nicolet Biomedical / Viasys Viking Select Neuro Diagnostic System
• Software: Viking Select Neuro Diagnostic System, Version 7.5 (Viasys Healthcare)
• Operating System: Microsoft Windows NT

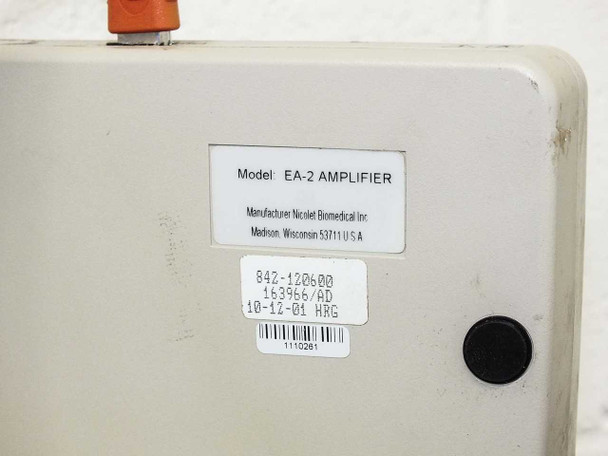

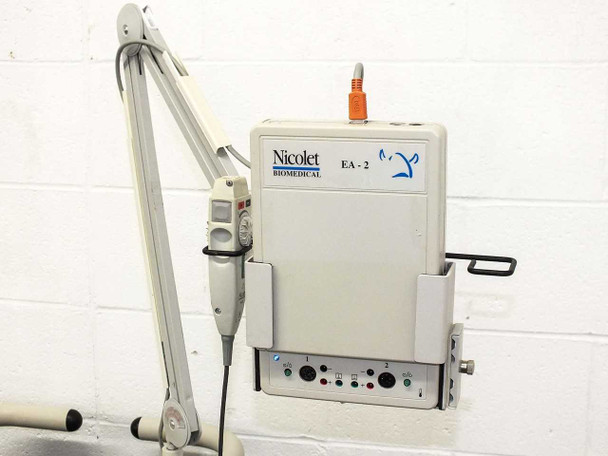

• Amplifier: Nicolet Biomedical EA-2 EEG/EMG Amplifier Unit — mounted on articulating arm; Analog Out connectors on top; date code 10-12-01
• Stimulator: Nicolet Biomedical S403 Stimulator Probe Unit — intensity dial with percentage scale (0–100%), +/– controls, mounted on cart column
• Isolated Electrical Stimulator: Nicolet Biomedical IES 405-1 — banana jack (+/–) output connectors, single-channel, mounted to cart
• I/O Module: Nicolet I/O — Trigger Out (2× BNC), LED Goggles connector, Ganzfeld IES 9 Control, Trigger In / Reflex Hammer input

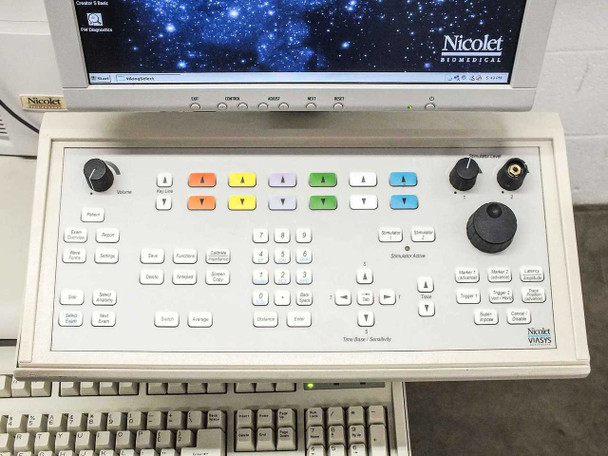

• Control Panel: Nicolet Viasys dedicated hardware control keyboard — color-coded function keys, dual rotary knobs (volume, stimulator), and labeled test-control buttons

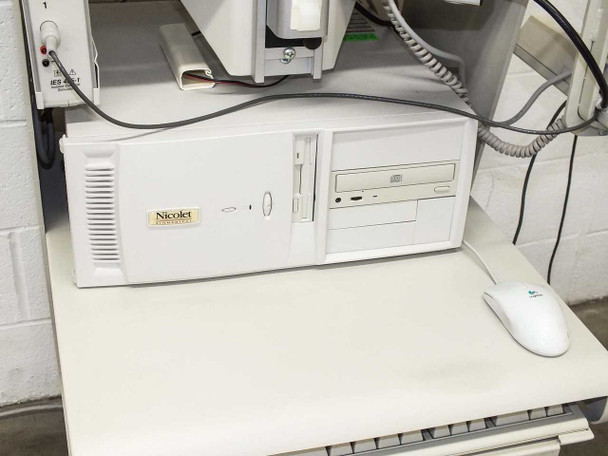

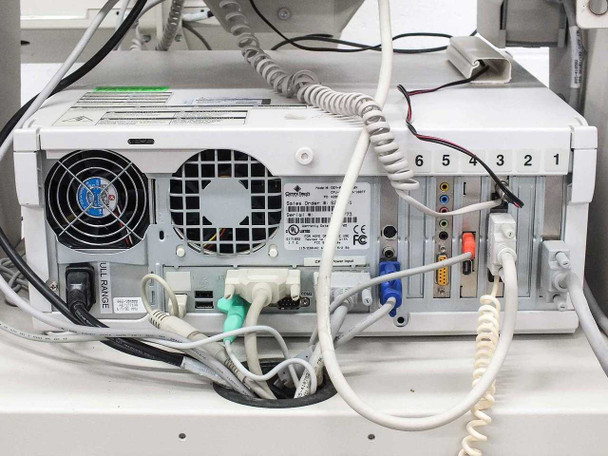

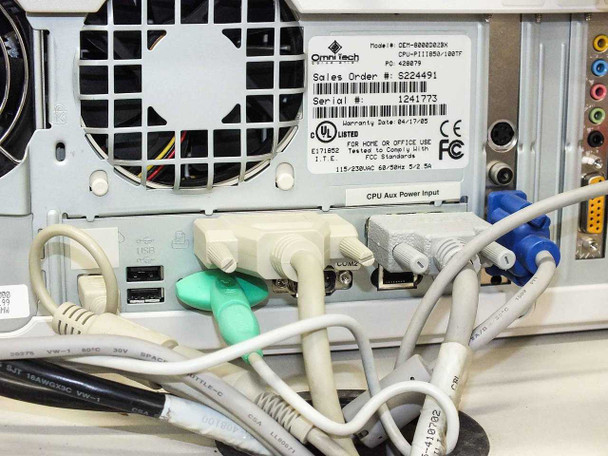

• CPU: Omnitech Model DEM-8000D2BK, CPU P-III/850–1007T; 115–230V AC, 60/50Hz, 5–2.5A; 6 rear expansion slots; USB, PS/2, VGA, DB9, audio I/O

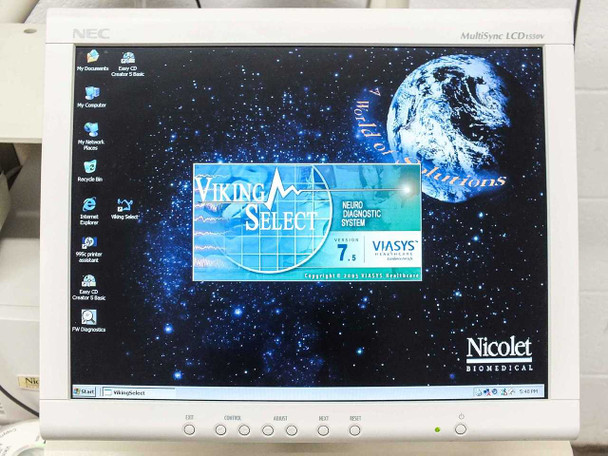

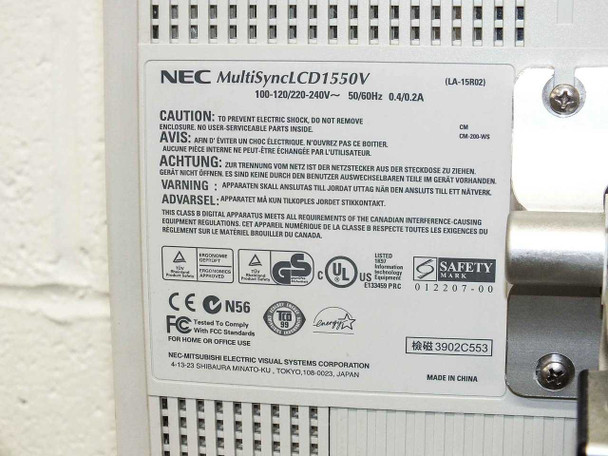

• Monitor: NEC MultiSync LCD1550V 15" LCD — 100–120V / 220–240V AC, 50/60Hz, 0.4/0.2A; Made in China

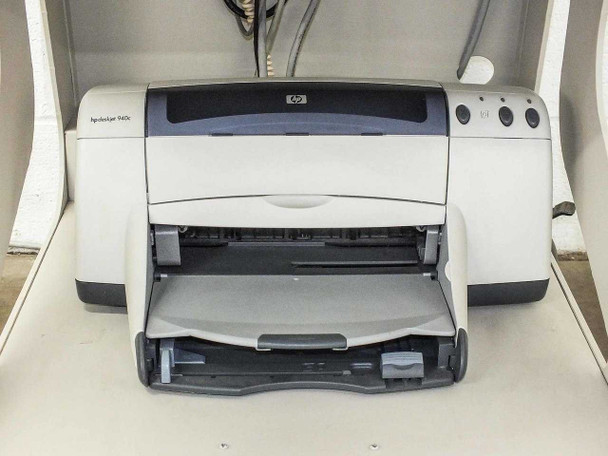

• Printer: HP DeskJet 940C inkjet printer (stored in lower cart enclosure)

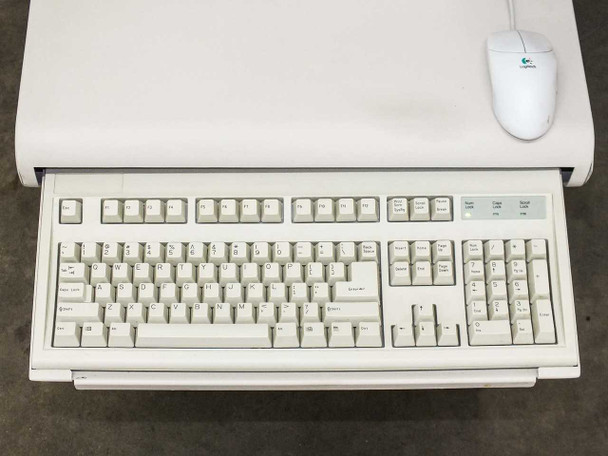

• Keyboard & Mouse: Standard PC keyboard on pull-out tray; Logitech scroll mouse

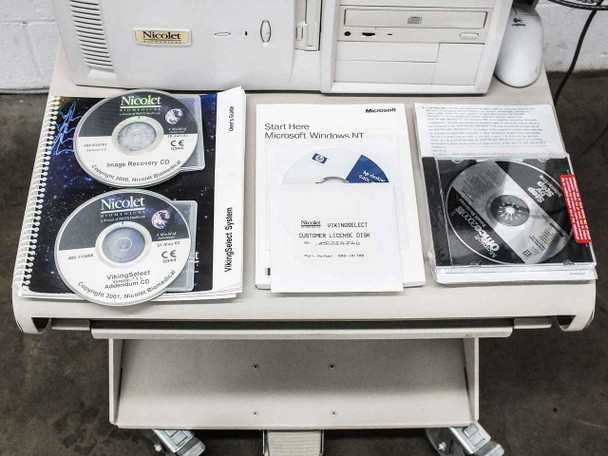

• Software Media & Documentation: Nicolet Image Recovery CD, VikingSelect application CD, Microsoft Windows NT Start Here guide, Viking Select customer license disk
• Power Distribution: Multi-outlet IEC power distribution unit mounted to cart rear with multiple C13 output receptacles

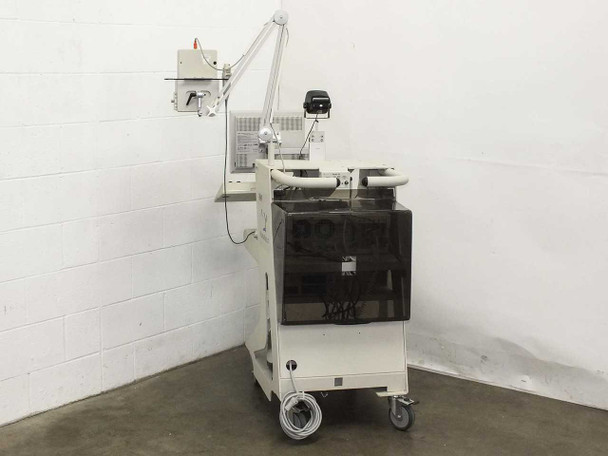

• Cart: Mobile medical-grade cart with locking casters, articulating arm mount, pull-out keyboard tray, lower enclosed storage bay, and accessory shelving

Applications

The Viking Select is a neurophysiology workstation used in neurology clinics, hospital EMG labs, and academic medical centers to perform electrodiagnostic studies. Electromyography (EMG) measures the electrical activity of muscles by inserting needle electrodes and recording motor unit action potentials, while nerve conduction studies (NCS) use surface electrodes and a controlled electrical stimulus to measure the speed and amplitude of nerve signals — together these two tests are the core of electrodiagnostic medicine for evaluating conditions like carpal tunnel syndrome, peripheral neuropathy, ALS, and radiculopathy. The Viking platform was Nicolet Biomedical's primary clinical EMG system from the mid-1990s through the 2000s, with the Viking Select representing the mid-range cart-based configuration; Nicolet Biomedical later became part of Viasys Healthcare and subsequently Cardinal Health / Natus Medical. The integrated cart design — with the amplifier on a positioning arm positioned close to the patient, the stimulator probe on a side mount, and the CPU/display together — was the standard configuration for a busy clinical EMG suite. Systems like this are typically acquired by neurology practices setting up or expanding EMG capabilities, by facilities maintaining legacy Nicolet workflows, or by research and educational institutions. Important: this is an FDA-regulated medical device. Sale and use may be subject to federal, state, and local regulations. It is the buyer's responsibility to confirm they are an authorized purchaser before bidding or buying.
