Description
Network Appliance 110-03175-A3 Dual SE-Wide SCSI PCI Adapter NetApp 200-03184

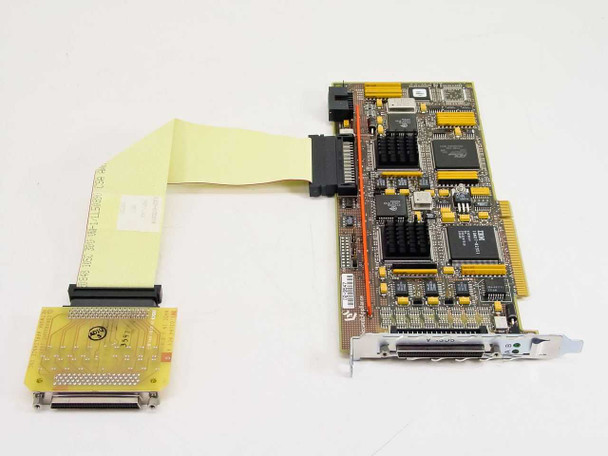

The Network Appliance (NetApp) 110-03175-A3 is a dual-channel Single-Ended Wide SCSI PCI host adapter designed for use in Network Appliance filer and storage systems. The card features two SE Wide SCSI channels and connects to the companion WSE5CSI Adapter Board (200-03184) via a wide flat ribbon cable, extending external SCSI connectivity. Manufactured in 1996, this is a proprietary NetApp internal component from the mid-1990s era of the company's early NAS appliance platforms.
Specifications & What's Included
- Main card: Network Appliance 110-03175-A3, Rev A3

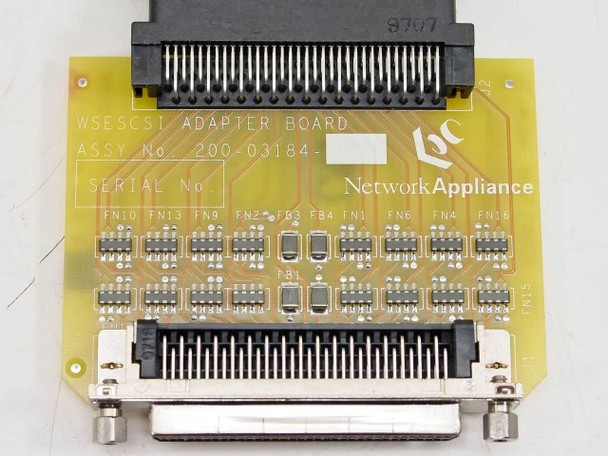

- Daughter board: WSE5CSI Adapter Board, Network Appliance 200-03184, Rev A
- Included ribbon cable: 112-03204 Rev A1 (wide flat SCSI ribbon)
- Bus interface: PCI (full-length card)
- SCSI type: Dual-channel Single-Ended Wide SCSI (SE Wide SCSI, 16-bit)

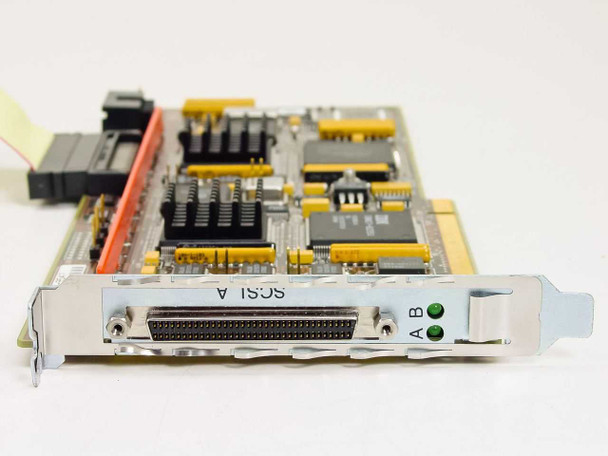

- External connector: 68-pin HD SCSI on bracket (labeled SCSI A, with dual A/B LED indicators)
- Internal connector: 68-pin Wide SCSI internal header
- Main controller IC: IBM QFP chip (large quad flat-pack, visible on component side)
- PCB date code: 1996 (main board); daughter board dated 2/97
- Made in USA
- Board tested per Network Appliance production test sticker
Applications
Network Appliance (now NetApp) built their early NAS filer appliances in the mid-1990s around proprietary SCSI adapter cards like this one to connect internal and external SCSI disk shelves. The 110-03175-A3 was designed specifically for NetApp filer platforms of that era — systems such as the NetApp F-series and early FAS filers that relied on SCSI-attached disk arrays for shared storage in enterprise data centers. SE Wide SCSI provided 16-bit parallel data transfer across the SCSI bus, supporting wide (16-bit) SCSI devices at up to 20 MB/s. Today this card is primarily sought by technicians maintaining or repairing legacy NetApp storage systems, collectors of early NAS hardware, or those sourcing spares for period-correct systems. It is not compatible with modern storage platforms but remains a serviceable spare for original NetApp SCSI-era equipment.
This Network Appliance 110-03175-A3 Dual SE-Wide SCSI PCI Adapter has been inspected and is in good condition. The board shows normal wear consistent with prior use in a storage system environment. The WSE5CSI daughter board (200-03184) and the wide flat ribbon cable (112-03204 Rev A1) are included and appear clean and intact. Please view our photo set and contact us if you have any questions.
Warranty Information
Additional Information
Brand: |
Network Appliance |
Model: |
110-03175-A3 |
MPN: |
110-03175-A3 |
Secondary Model: |
200-03184 |
Type: |
Dual SE-Wide SCSI PCI Host Adapter Card |
SKU: |
40133 |
Seller Notes: |
Includes WSE5CSI daughter board (200-03184) and ribbon cable (112-03204 Rev A1) |
Country/Region of Manufacture: |
United States |
Form Factor: |
Full-Length PCI Card with Daughter Board |
Interface Type: |
SE Wide SCSI (Single-Ended Wide SCSI) |
Number of Channels: |
2 (Dual) |
SCSI Standard: |
SE Wide SCSI (16-bit / Wide SCSI) |
External Connector: |
68-pin HD SCSI (on bracket, labeled SCSI A) |
Internal Connector: |
68-pin Wide SCSI internal header |
Bus Interface: |
PCI |
Revision: |
A3 (main board); Rev A (daughter board 200-03184) |
Compatible With: |
Network Appliance NetApp filer storage systems |
Included Cable: |
112-03204 Rev A1 Wide SCSI flat ribbon cable |
Manufacture Date: |
1996 (main board); 1997 (daughter board) |
Condition Notes: |
Network Appliance 110-03175-A3 Dual SE-Wide SCSI PCI Adapter has been inspected and is in good condition. Includes WSE5CSI daughter board 200-03184 and ribbon cable. Normal wear. |
