Micro-Coax 1010 WR-62 Ku-Band Waveguide Delay Line 12.4-18.0GHz 20 ft
The Micro-Coax Components 1010 is a flexible rectangular waveguide delay line designed for operation across the full Ku-band frequency range of 12.4 to 18.0 GHz using the standard WR-62 waveguide format. Flexible waveguide sections like this one are used to connect microwave components where a rigid waveguide run is impractical — providing a low-loss, phase-stable transmission path while accommodating alignment offsets, vibration isolation, or routing around obstacles. At 20 feet in length, this is a long-run section well suited to system-level microwave signal routing.
Specifications & What's Included
- Manufacturer: Micro-Coax Components Inc., Collegeville, Pennsylvania
- Part Number: 1010
- Waveguide Standard: WR-62
- Frequency Range: 12.4 – 18.0 GHz (Ku-Band)
- Internal Cross-Section: 0.622 in × 0.311 in (nominally 19/32 in × 9/32 in)
- Length: 20 feet (flexible, coiled for storage/shipping)
- Terminations: WR-62 rectangular waveguide flanges, both ends
- Body: Flat flexible rectangular waveguide, gray jacket
- Flange Hardware: Brass/gold-finish mounting flanges with four-bolt pattern
Applications
WR-62 waveguide is the standard transmission medium for Ku-band microwave systems, covering 12.4–18.0 GHz — a range that encompasses satellite communications (both uplink and downlink), terrestrial point-to-point microwave links, and a broad array of defense and scientific applications. Flexible waveguide delay lines of this type are used anywhere a fixed-length, phase-repeatable signal path is needed between components that cannot be rigidly connected: within radar transmitter/receiver assemblies, in electronic countermeasures (ECM) and electronic warfare (EW) systems, in microwave altimeters, in cellular and land mobile radio base station power amplifier chains, and in test bench setups where a specific group delay is required. The 20-ft length provides substantial delay — useful for pulse stretching, signal timing, and bench characterization of microwave subsystems. Micro-Coax Components (based in Collegeville, PA) has been a recognized supplier of precision flexible waveguide and coaxial components to the defense, aerospace, and telecom industries.

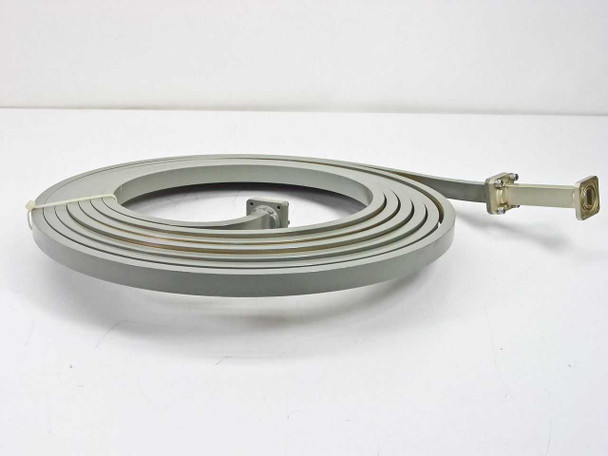

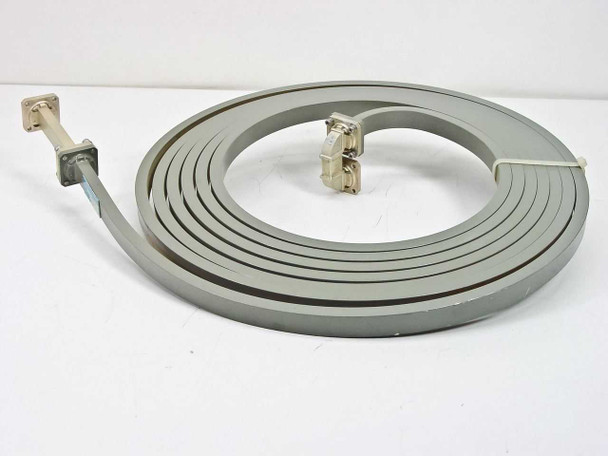

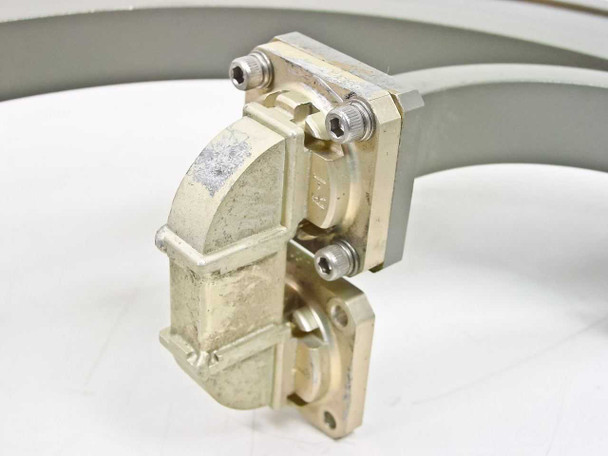

This Micro-Coax Components 1010 WR-62 Ku-Band flexible waveguide delay line has been inspected and is in good used condition. The waveguide body is clean with no visible kinks, crushing, or deformation along the full 20-ft coiled length. Both WR-62 flanged terminations show some surface patina on the brass hardware — consistent with normal age and storage — but the flange faces and apertures appear clean and undamaged. The unit retains its manufacturer label with part and serial numbers intact. Please view our photo set and contact us if you have any questions.
