MFM RLL ESDI

MFM RLL ESDI Hard Drive Ribbon Cable Set 32-Pin Data 20-Pin Control 2 Piece

(No reviews yet) Write a Review
SKU:
44152
MPN:
Ribbon Cable
Condition:
Used
Availability:
Currently out of stock — contact us for availability.
Weight:
0.90 LBS
Shipping:
Calculated at Checkout
$24.00
Was: $30.00

This item is temporarily unavailable. Please view our recommended, in-stock alternatives directly below.

Description

MFM RLL ESDI Hard Drive Ribbon Cable Set 32-Pin Data 20-Pin Control 2 Piece

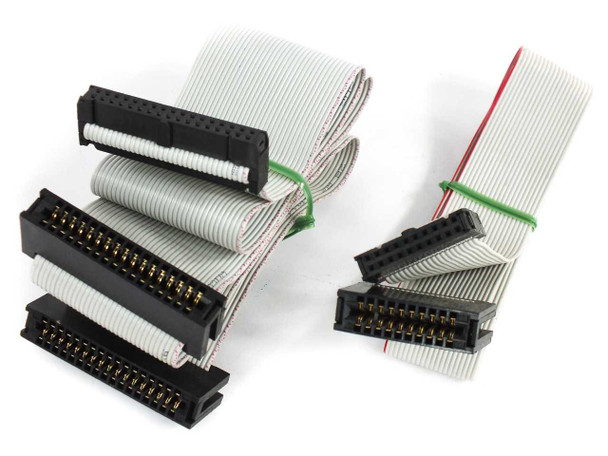

This is a 2-piece ribbon cable set designed to connect an MFM, RLL, or ESDI vintage hard drive to its controller card. The set includes one 32-pin data cable and one 20-pin control cable, each with both pin (IDC header) and edge connectors to accommodate the interface standards used on these drives.

Specifications & What's Included

  • Quantity: 2 cables (sold as a set)
  • Cable 1: 32-pin data cable
  • Cable 2: 20-pin control cable
  • Connector style: IDC pin headers and edge connectors on each cable
  • Compatible interfaces: MFM (Modified Frequency Modulation), RLL (Run Length Limited), ESDI (Enhanced Small Device Interface)
  • Note: specific cable configuration (length, connector count, spacing) may vary from the photos — you will receive a functionally equivalent pair

Applications

MFM, RLL, and ESDI were the dominant hard drive interface standards of the 1980s and into the early 1990s, used in IBM PC/XT, PC/AT, and compatible systems of that era. MFM was the earliest and most common, followed by RLL (which offered roughly 50% greater capacity from the same platters) and ESDI (a higher-performance standard used in workstations and servers before IDE/ATA took over). All three interfaces use a two-cable design — a separate data cable and a control cable — connecting the drive to an ISA-bus controller card. These cables are sought after today by hobbyists, vintage computer restorers, and industrial users maintaining legacy equipment that still relies on these older storage interfaces.

Condition: Used
This MFM RLL ESDI Hard Drive Ribbon Cable Set is used and in good condition. The cables show normal wear from prior use. Note that the specific cable configuration shipped may vary slightly from the photos — you will receive a functionally equivalent 2-piece set (32-pin data cable and 20-pin control cable). Please view our photo set and contact us if you have any questions.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
Unbranded
Model:
MFM RLL ESDI Ribbon Cable Set
Type:
Hard Drive Ribbon Cable Set
Number of Cables:
2
Cable 1:
32-pin data cable with pin and edge connectors
Cable 2:
20-pin control cable with pin and edge connectors
Compatible Interface:
MFM, RLL, ESDI
Connector Type:
Pin and Edge (IDC)
Compatible With:
MFM, RLL, and ESDI hard drives and controller cards
Seller Notes:
Set of 2 cables (32-pin data + 20-pin control). Cable configuration may vary from photos.
SKU:
44152
Condition Notes:
Used MFM RLL ESDI ribbon cable set in good condition with normal wear. Cable configuration may vary from photos; you receive a functionally equivalent 32-pin data + 20-pin control pair. Please contact us with any questions.
