Description

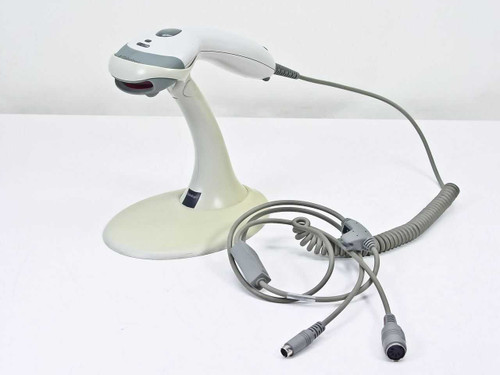

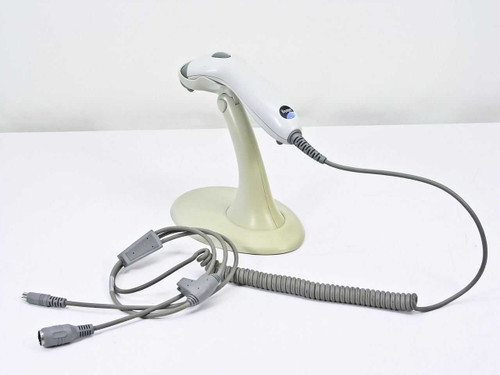

Metrologic MS9520 VoyagerCG Laser Barcode Scanner KB Wedge w/ Stand & Adapter
The Metrologic MS9520 VoyagerCG is a handheld laser barcode scanner designed for retail, point-of-sale, and light industrial data-entry applications. It uses a Class 2 visible laser diode to read standard 1D barcodes and connects to a host system via a keyboard wedge (KB Wedge) interface — passing keyboard data through so no special driver software is required on most systems. This listing includes the scanner, desktop stand, KB wedge coiled cable, and original Metrologic AC adapter.
Specifications & What's Included
- Brand: Metrologic Instruments Inc.
- Model: MS9520 VoyagerCG
- MPN: 8605219446
- Interface: KB Wedge (keyboard wedge pass-through)
- Connector: Mini-DIN male/female keyboard pass-through
- Laser: Class 2 visible laser diode, 1.0 mW peak
- Power input: 5V DC
- AC adapter: Metrologic Part No. 6155, Model 35-5.2-200R
- AC adapter input: 120V AC, 60Hz, 7W
- AC adapter output: 5.2V DC, 200mA
- Country of manufacture: China (manufactured May 2005)
- Form factor: Handheld pistol-grip scanner with weighted desktop stand
- Includes: Scanner, desktop stand, coiled KB wedge cable, Metrologic AC adapter (Part No. 6155)
Applications
The Metrologic VoyagerCG series was a widely used handheld laser scanner in retail checkout, inventory management, and light warehouse environments throughout the 2000s. The keyboard wedge interface made it easy to deploy on virtually any PC running any operating system — no drivers needed, as it simply inserts between the keyboard and the computer and passes scanned data as keystrokes. The desktop stand allows hands-free presentation scanning, making it useful at checkout counters where items can be passed across the scan window. It reads standard 1D symbologies including UPC, EAN, Code 39, and Code 128, covering the vast majority of retail and industrial barcode formats. These scanners remain useful today on legacy POS systems, older cash registers, or any workstation with a PS/2 or AT-style keyboard port.
This Metrologic MS9520 VoyagerCG laser barcode scanner has been inspected and is in good used condition. The scan head shows light surface scratching on the housing, visible in the photos. The scanner, desktop stand, KB wedge coiled cable, and AC adapter (Metrologic Part No. 6155) are all included and present. Please view our photo set and contact us if you have any questions.
Warranty Information
Additional Information
Brand: |
Metrologic |
Model: |
MS9520 |
MPN: |
8605219446 |
Secondary Model: |
VoyagerCG |
Type: |
Laser Barcode Scanner |
SKU: |
41560 |
Interface: |
KB Wedge (Keyboard Wedge) |
Laser Class: |
Class 2 Visible Laser Diode |
Laser Power: |
1.0 mW Peak |
Power Requirements: |
5V DC (via AC adapter) |
AC Adapter Model: |
Metrologic 35-5.2-200R (Part No. 6155) |
AC Adapter Input: |
120V AC, 60Hz, 7W |
AC Adapter Output: |
5.2V DC, 200mA |
Country/Region of Manufacture: |
China |
Date of Manufacture: |
May 2005 |
Form Factor: |
Handheld with Desktop Stand |
Connector Type: |
Mini-DIN (KB Wedge pass-through) |
Included Accessories: |
Desktop stand, KB wedge cable, AC adapter (Part No. 6155) |
Seller Notes: |
Includes scanner, desktop stand, KB wedge cable, and Metrologic AC adapter (Part No. 6155). |
Condition Notes: |
This Metrologic MS9520 VoyagerCG barcode scanner is in good used condition with light surface scratching on the scan head. Includes scanner, stand, KB wedge cable, and AC adapter. Please view photos and contact us with questions. |
