Description
Mean Well RSP-3000-48 3000W Switching Power Supply 200-240VAC 20A 48VDC 62.5A

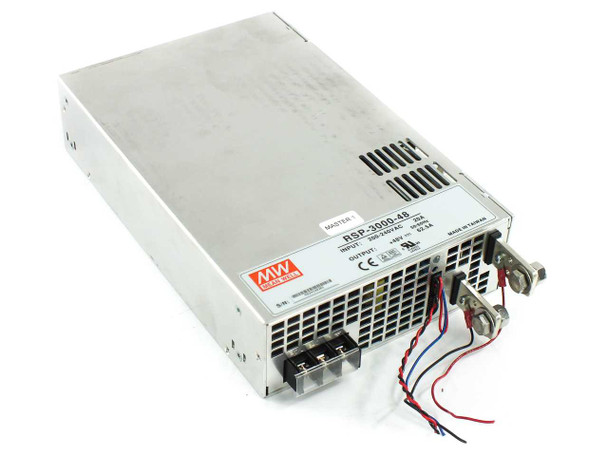

The Mean Well RSP-3000-48 is a 3000-watt single-output enclosed AC/DC switching power supply delivering 48VDC at 62.5A. It is designed for demanding industrial applications that require high power density, programmable output, and the ability to parallel multiple units for increased capacity. Built-in active PFC and high efficiency (up to 91.5%) make it well suited for continuous-duty industrial environments.
Specifications & What's Included
- Model: Mean Well RSP-3000-48
- Total Output Power: 3000W (3KW)
- AC Input Voltage: 200–240VAC (operating range: 180–264VAC)
- Input Current: 20A
- Input Frequency: 50/60Hz
- DC Output Voltage: +48VDC
- DC Output Current: 62.5A
- Auxiliary Output: 12V / 1A (for remote control circuitry)
- Output Voltage Trimming: Externally adjustable from 20% to 110% of rated output via external DC source
- Efficiency: Up to 91.5%
- Power Factor Correction: Built-in active PFC
- Cooling: Forced air via dual built-in DC fans (fan end visible in photos)
- Current Sharing: Up to 3 units in parallel (up to 9000W total; 2+1 redundancy supported)
- Remote Control: Built-in remote ON/OFF, remote sense, auxiliary power, and power-OK signal

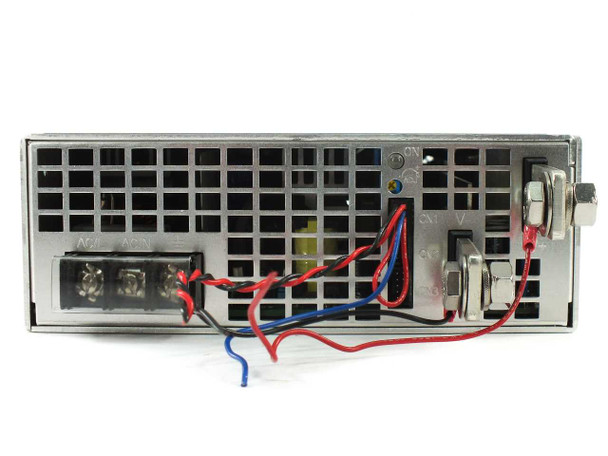

- CN1 Connector Note: Without the red loop wire installed on the CN1 black connector, the unit defaults to REMOTE control mode. The loop wire (included) enables local operation.
- Protections: Short circuit, overload, over-voltage, over-temperature
- Safety Certifications: TUV EN 62368-1, UL 62368-1
- Operating Temperature: -20°C to +70°C
- Country of Manufacture: Taiwan
- Includes: Unit with all wires and connector parts shown in the photos (red loop wire for CN1, plus red, blue, and black output wiring)
Applications
The Mean Well RSP-3000 series is used in industrial automation, battery charging systems, telecommunications equipment, LED lighting infrastructure, and high-power DC bus applications. The 48VDC output is a standard bus voltage in telecom and datacom installations, and the RSP-3000-48 is commonly used in rectifier and charging systems where a stable, high-current 48V rail is required. The parallel current-sharing capability (up to three units, 9000W total) allows the supply to scale with load requirements or provide N+1 redundancy — a feature valued in always-on industrial and telecom environments. The programmable output voltage range (20–110% of rated) adds flexibility for applications requiring a tunable DC rail.
This Mean Well RSP-3000-48 3000W switching power supply has been tested and is in good working condition. We have multiple units of this model in stock, and the unit shipped may differ slightly from the one photographed but will be functionally equivalent. One important operating note: without the red loop wire installed on the CN1 connector's black port, the unit defaults to remote control mode. All wires and connector parts shown in the photos are included so the unit can be operated as shown. The unit shows normal wear consistent with prior use; overall cosmetic condition is very good. Please view our photo set and contact us if you have any questions.
Warranty Information
Additional Information
Brand: |
Mean Well |
Model: |
RSP-3000-48 |
MPN: |
RSP-3000-48 |
SKU: |
52462 |
Type: |
AC/DC Enclosed Switching Power Supply |
Power Output: |
3000W (3KW) |
Input Voltage: |
200-240VAC (180-264VAC range) |
Input Current: |
20A |
Input Frequency: |
50/60Hz |
Output Voltage: |
+48VDC |
Output Current: |
62.5A |
Auxiliary Output: |
12V / 1A (for remote control) |
Output Voltage Trim Range: |
20–110% of rated output via external DC |
Efficiency: |
Up to 91.5% |
Power Factor Correction: |
Active PFC built-in |
Cooling: |
Forced air — dual built-in DC fans |
Current Sharing: |
Up to 3 units (up to 9000W total, 2+1) |
Remote Control: |
Built-in remote ON/OFF, remote sense, aux power, power OK signal |
Protections: |
Short circuit, overload, over voltage, over temperature |
Safety Certifications: |
TUV EN 62368-1, UL 62368-1 |
Country/Region of Manufacture: |
Taiwan |
Form Factor: |
Enclosed / Open Frame Industrial PSU |
Seller Notes: |
Includes all wires and connector parts shown in photos. Red loop wire for CN1 included for local operation mode. |
Condition Notes: |
This Mean Well RSP-3000-48 3000W switching power supply has been tested and is in good working condition. All wires shown are included; without the CN1 red loop wire, unit defaults to remote mode. |
