The Matsonic MS8308EP is a Socket A (Socket 462) system board built around the SiS 730S single-chip chipset. It supports AMD Athlon, Athlon XP, and Duron processors from 600 MHz up through the 2600+ rating, and integrates graphics, networking, and audio directly on the board — making it a compact all-in-one platform for Socket A desktop builds.

Specifications & What's Included

• Model: Matsonic MS8308EP (MS8308EP(266) per board label)
• CPU Socket: Socket A / Socket 462
• Chipset: SiS 730S (single chip)
• Supported CPUs: AMD Athlon, Athlon XP, Duron — 600 MHz up to 2600+
• Memory: 2 × 168-pin DIMM slots; supports PC100/PC133 SDRAM up to 1.0 GB total
• Expansion slots: 1 × AGP 4x, 2 × PCI, 1 × AMR
• Onboard graphics: SiS 730S 128-bit 2D/3D AGP accelerator, 100 MHz host interface, AGP 2.0 compliant; shared memory up to 64 MB; max resolution 1920×1440, texture up to 2048×2048, virtual screen up to 4096×4096; hardware DVD acceleration
• Onboard LAN: 10/100 Ethernet
• Onboard audio: AC97 codec; dual full-duplex DirectSound channels; Sound Blaster Pro DOS legacy compatibility; FM synthesis; MIDI port; Line-Out, Line-In, Mic jacks
• Storage: 2 × Ultra DMA IDE ports (PIO mode 4; UltraDMA 33/66/100); 1 × FDD port
• USB: 2 external USB ports + 2-pin header for additional USB
• Serial ports: 2 × (16550 UART)
• Parallel port: 1 × 25-pin female (SPP/EPP/ECP)
• PS/2: Mini-DIN mouse and keyboard ports
• BIOS: 2 MB Flash ROM; full ACPI and Legacy PMU support; multi-boot capable

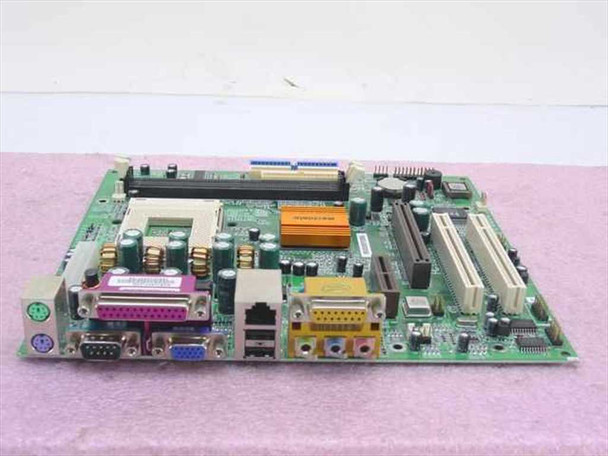

• Chipset heatsink: orange anodized aluminum heatsink with Matsonic branding (visible in photos)

Applications

The MS8308EP belongs to the early-2000s wave of Socket A micro-ATX boards aimed at budget and mid-range AMD desktop systems. Socket A (Socket 462) was AMD's primary consumer CPU platform from 2000 through roughly 2004, spanning the original Athlon through the Athlon XP Barton core. The SiS 730S chipset was a popular choice for cost-conscious OEM and whitebox builders because it folded graphics, audio, and networking into a single chip, eliminating the need for separate add-in cards. Boards like this one powered a huge number of home and small-office PCs of that era and remain sought after today for Socket A system restorations, retro-gaming builds, and legacy software compatibility testing. The integrated graphics support hardware DVD acceleration and resolutions up to 1920×1440, adequate for period-correct software. The onboard 10/100 LAN and AC97 audio with Sound Blaster Pro compatibility rounded out what was, for its time, a self-contained platform requiring only a CPU, RAM, and storage to build a functional system.
