Description
Marathon Electric X70421341020 7.5HP 3-Phase 213T EPACT Motor 1760RPM 208-460V
The Marathon Electric X70421341020 is a 7.5 HP NEMA 213T frame, three-phase induction motor rated for continuous duty. Built in Wausau, Wisconsin and meeting EPACT efficiency standards, this motor features a drip-proof (DP) enclosure and permanently lubricated ball bearings. It is wound for dual voltage operation (208-230/460V at 60 Hz) and also supports 50 Hz operation at reduced power.
Specifications & What's Included

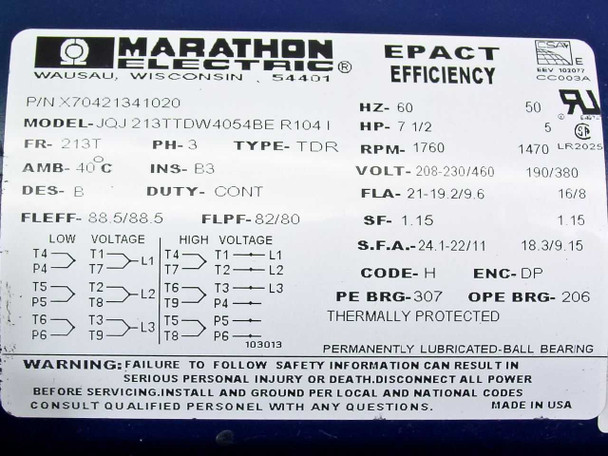

- Part Number: X70421341020
- Model: JQJ213TTDW4054BER104I
- Frame: 213T
- Phase: 3-Phase
- 60 Hz Rating: 7.5 HP, 1760 RPM, 208-230/460V AC, 21-19.2/9.6 FLA
- 50 Hz Rating: 5.0 HP, 1470 RPM, 190/380V AC, 16/8 FLA
- Service Factor: 1.15 (60 Hz) / 1.15 (50 Hz)
- SFA: 24.1-22/11 A (60 Hz) / 18.3/9.15 A (50 Hz)
- Efficiency (FLEFF): 88.5% (60 Hz) / 88.5% (50 Hz)
- Power Factor (FLPF): 82 (60 Hz) / 80 (50 Hz)
- Insulation Class: B3
- NEMA Design: B
- Enclosure: DP (Drip-Proof)
- Ambient Temperature: 40°C
- Duty: Continuous
- Thermal Protection: Thermally Protected
- Bearing Type: Permanently Lubricated Ball Bearing
- Drive End Bearing: PE BRG-307
- Opposite Drive End Bearing: OPE BRG-206
- Shaft Diameter: 1.825 in
- Shaft Length: 3.375 in
- Mounting: Foot Mount
- Overall Dimensions: 19.5 in L × 14 in W × 11.5 in H
- Efficiency Standard: EPACT
- Country of Manufacture: USA (Wausau, Wisconsin)
- Includes: motor only — no cables or accessories
Applications
NEMA 213T frame, 7.5 HP three-phase motors in the drip-proof configuration are standard workhorses across industrial and commercial environments. They are commonly used to drive pumps, air compressors, conveyor systems, blowers, fans, machine tool spindles, and other rotating equipment in manufacturing plants, agricultural facilities, HVAC systems, and process industries. The 213T frame size is a widely standardized NEMA footprint, making this motor a direct drop-in replacement for many OEM and retrofit applications. Dual-voltage winding (208-230/460V) gives flexibility to run on different plant electrical systems without rewinding. Marathon Electric, headquartered in Wausau, Wisconsin, has been a major US producer of AC induction motors since the mid-20th century; their motors are well-regarded in industrial maintenance and are a common sight in North American facilities.

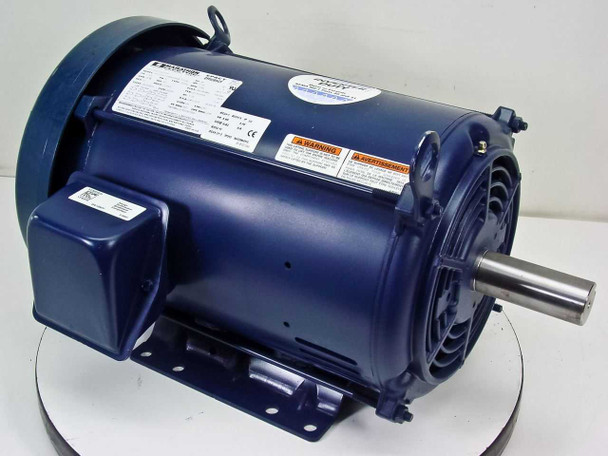

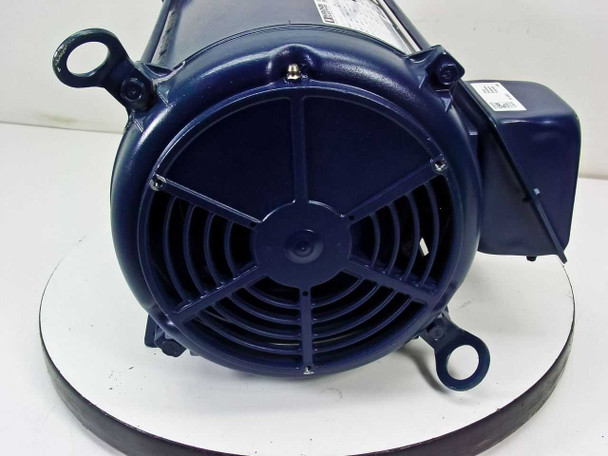

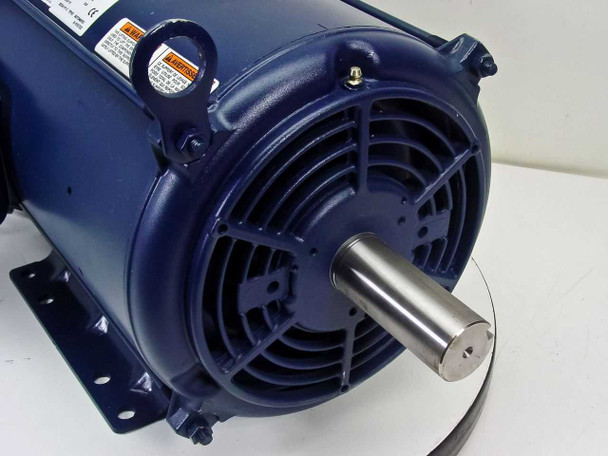

This Marathon Electric X70421341020 7.5HP 3-Phase 213T EPACT motor is in open box condition. The motor has not been bench-tested at our facility; however, it appears to be in clean, unused condition consistent with new old stock or an open box unit. The blue housing is in excellent cosmetic shape overall, with one notable exception: the paint around the top lifting eye shows chipping and cracking, as visible in our photos. The output shaft is clean and undamaged. Please review our full photo set carefully, and contact us with any questions before purchasing. Note: this item requires freight shipping — please reach out for a shipping quote or to arrange local pickup.
Warranty Information
Additional Information
Brand: |
Marathon Electric |
Model: |
X70421341020 |
Secondary Model: |
JQJ213TTDW4054BER104I |
MPN: |
X70421341020 |
SKU: |
43376 |
Type: |
Three-Phase Induction Motor |
Frame Size: |
213T |
Horsepower: |
7.5 HP (60 Hz) / 5.0 HP (50 Hz) |
Phase: |
3-Phase |
Voltage: |
208-230/460V AC (60 Hz) / 190/380V AC (50 Hz) |
Full Load Amps: |
21-19.2/9.6 A (60 Hz) / 16/8 A (50 Hz) |
Speed (RPM): |
1760 RPM (60 Hz) / 1470 RPM (50 Hz) |
Frequency: |
50/60 Hz |
Enclosure Type: |
DP (Drip-Proof) |
Insulation Class: |
B3 |
Ambient Temperature: |
40°C |
Service Factor: |
1.15 |
Duty Cycle: |
Continuous (CONT) |
Efficiency Standard: |
EPACT |
Full Load Efficiency: |
88.5% (60 Hz) / 88.5% (50 Hz) |
Power Factor: |
82/80 |
Thermal Protection: |
Thermally Protected |
Bearing Type: |
Permanently Lubricated Ball Bearing |
Drive End Bearing: |
307 |
Opposite Drive End Bearing: |
206 |
Motor Design: |
NEMA Design B |
Shaft Diameter: |
1.825 in |
Shaft Length: |
3.375 in |
Mounting: |
Foot Mount |
Country/Region of Manufacture: |
United States |
Dimensions (L x W x H): |
19.5 x 14 x 11.5 in |
Seller Notes: |
Motor only — freight shipping required; contact us for a quote. |
Condition Notes: |
Marathon Electric X70421341020 7.5HP 3-Phase 213T EPACT motor in open box condition. Not bench-tested at our facility. Clean housing; paint chipping noted around lifting eye. Freight shipping required. |
