Description
Lithonia TH 1000MP 1000W Metal Halide Grow Light 120/208/240/277/480V M47 MH1000
The Lithonia TH 1000MP is a 1000-watt metal halide high-intensity discharge (HID) luminaire with a multi-tap ballast covering five voltage settings: 120, 208, 240, 277, and 480V AC. This unit is currently tapped for 480V and includes the Tungsram MH1000/U/TU 1000W metal halide lamp (Lamp Type M47). It was pulled from a large CIGS thin-film solar panel manufacturing facility, where it was used to sun soak solar cells — simulating natural sunlight at high intensity to stabilize and condition the panels before testing and shipment.
Specifications & What's Included
- Manufacturer: Lithonia Lighting (Acuity Lighting Group)
- Model: TH 1000MP TBV HA HSG
- Wattage: 1000W
- Lamp Type: M47 (mogul base E39)
- Voltage (multi-tap): 120 / 208 / 240 / 277 / 480V AC, 60 Hz
- Current draw by tap: 9.0A (120V) / 5.2A (208V) / 4.4A (240V) / 3.9A (277V) / 2.3A (480V)
- Current tap setting: 480V (re-tappable)
- Power factor: High (HPF H)
- Ballast type: TBV HSG
- Socket: Pink ceramic mogul base (E39)

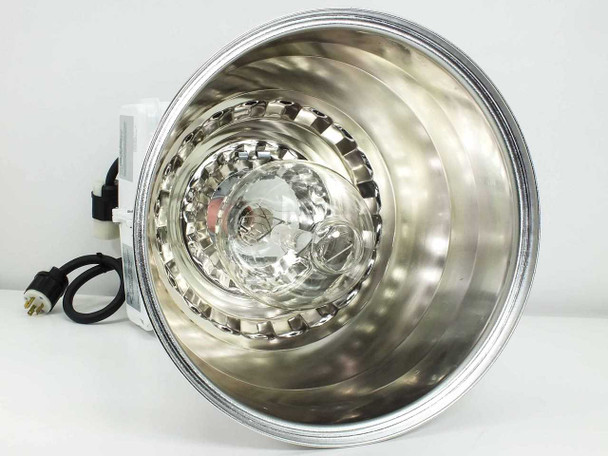

- Reflector: 18" W × 18" D × 12" Tall — polished aluminum

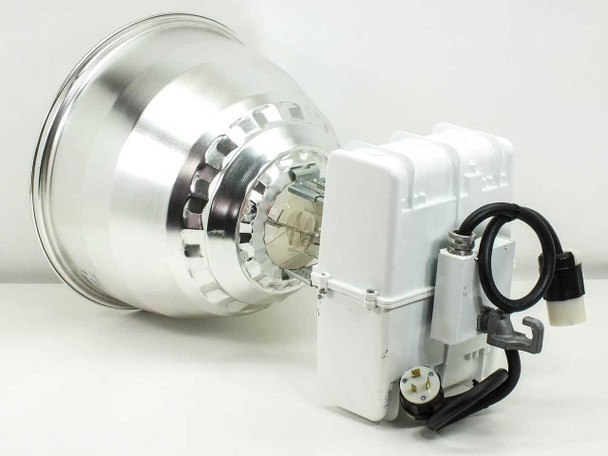

- Ballast housing: 14" × 10" × 12" Tall
- Assembled dimensions: 18" × 18" × 26" Tall (adjustable reflector bracket adds ~2")
- Suitable for damp locations
- Housing rating: For use with "O" rated lamps only

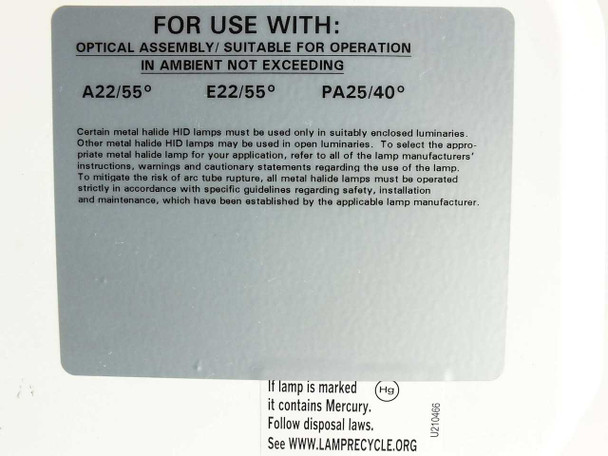

- Ambient temperature rating: A22/55°C, E22/55°C, PA25/40°C
- UL Listed: 878R — Luminaire Fitting
- Manufactured: Monterrey, Nuevo León, Mexico — April 26, 2010

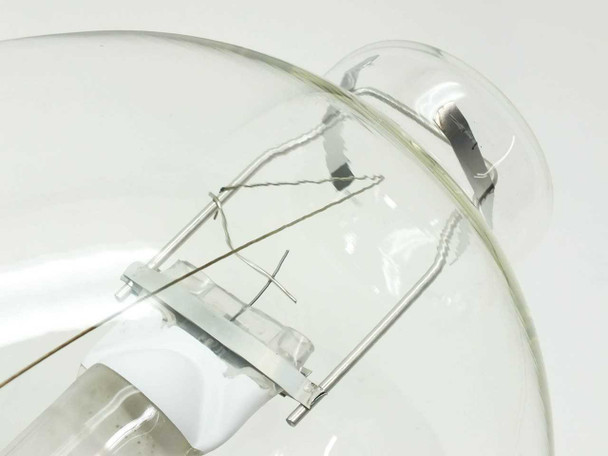

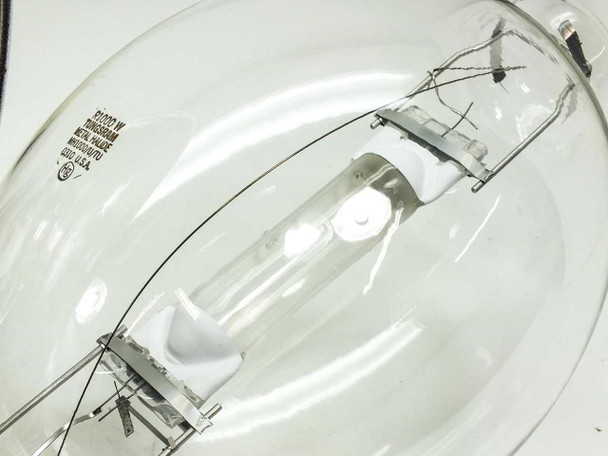

- Includes: Tungsram R1000W MH1000/U/TU 1000W metal halide lamp

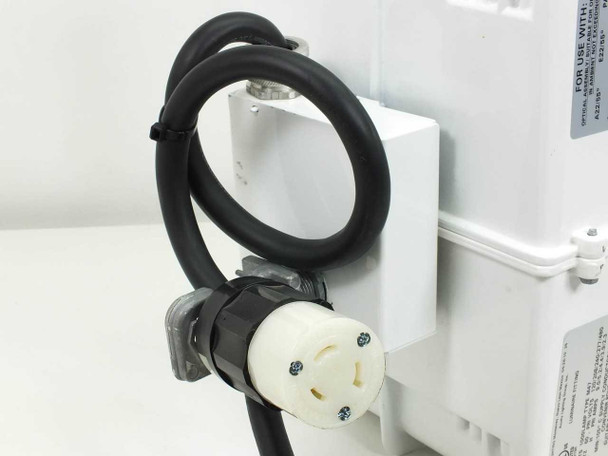

- Includes: Power cord with twist-lock plug (currently configured for 480V)
Applications
Metal halide HID luminaires like the Lithonia TH 1000MP are used wherever high-intensity, broad-spectrum white light is needed. Their spectral output closely approximates natural daylight, which makes them a standard choice for indoor horticulture and grow lighting, solar panel sun soaking and light-soak conditioning processes (as used here at a CIGS thin-film solar facility), and photobiological research. In commercial and industrial settings, 1000W metal halide high bays are widely used for warehouse and factory floor illumination, sports and arena lighting, and large-format photography and film production. The multi-tap ballast (120–480V) makes this unit adaptable to a wide range of facility electrical configurations without requiring a separate transformer. Metal halide technology of this era — late 2000s/early 2010s — represents the high end of HID lamp technology before LED high bays became cost-competitive; 1000W fixtures of this type are still actively used in grow operations, industrial facilities, and specialty research environments where their intense, full-spectrum output is preferred.
This Lithonia TH 1000MP 1000W Metal Halide luminaire was pulled from a large CIGS solar panel manufacturing facility, where units like this were used to sun soak solar cells. It is in good used condition with normal wear expected from an industrial setting. The reflector bowl is clean and intact, the ballast housing is in good shape, and the Tungsram MH1000/U/TU lamp is included. The ballast is currently tapped for 480V but can be re-tapped to 120, 208, 240, or 277V. Please view our photo set and contact us if you have any questions.
Warranty Information
Additional Information
Brand: |
Lithonia Lighting |
Model: |
TH 1000MP |
MPN: |
TH 1000MP TBV HA HSG |
Type: |
Metal Halide HID Luminaire |
SKU: |
46910 |
Lamp Type: |
M47 |
Lamp Included: |
Yes – Tungsram MH1000/U/TU 1000W Metal Halide |
Wattage: |
1000W |
Voltage: |
120/208/240/277/480V AC (multi-tap) |
Current Tap Setting: |
Currently tapped for 480V |
Frequency: |
60 Hz |
Primary Amps: |
9.0/5.2/4.4/3.9/2.3A (by voltage tap) |
Ballast Type: |
TBV HSG (High Power Factor) |
Power Factor: |
High (HPF H) |
Socket Type: |
Mogul Base (E39) |
Reflector Size: |
18" x 18" x 12" Tall |
Ballast Dimensions: |
14" x 10" x 12" Tall |
Assembled Dimensions: |
18" x 18" x 26" Tall (approx. w/ bracket) |
Lamp Housing Rating: |
"O" Rated Lamps Only |
UL Listing: |
UL Listed 878R – Luminaire Fitting |
Suitable For: |
Damp Locations |
Ambient Temp Rating: |
A22/55°C, E22/55°C, PA25/40°C |
Country/Region of Manufacture: |
Mexico |
Manufacture Date: |
04/26/2010 |
Form Factor: |
Pendant / Industrial High Bay |
Seller Notes: |
Includes Tungsram MH1000/U/TU 1000W metal halide lamp. Currently tapped for 480V. |
Compatible With: |
M47 lamp type, "O" rated metal halide lamps, mogul base E39 |
Condition Notes: |
Lithonia TH 1000MP 1000W Metal Halide luminaire pulled from a CIGS solar panel facility. Good used condition. Includes Tungsram MH1000/U/TU lamp. Currently tapped for 480V; re-tappable to 120–277V. |
