LG Chem RESU10H C-Type 9.8kWh Lithium-ion Battery SMA Sunny Boy Storage

LG Chem RESU10H C-Type 9.8kWh Lithium-ion Battery SMA Sunny Boy Storage

The LG Chem RESU10H (C-Type) is a wall-mounted residential lithium-ion solar energy storage battery designed to pair exclusively with SMA Sunny Boy Storage inverters. With a usable energy capacity of 9.8 kWh, it stores solar power generated during the day for use at night or during grid outages. This C-Type variant is engineered specifically for the SMA Sunny Boy Storage platform and is not compatible with SolarEdge StorEdge inverters or other inverter brands.

Specifications & What's Included

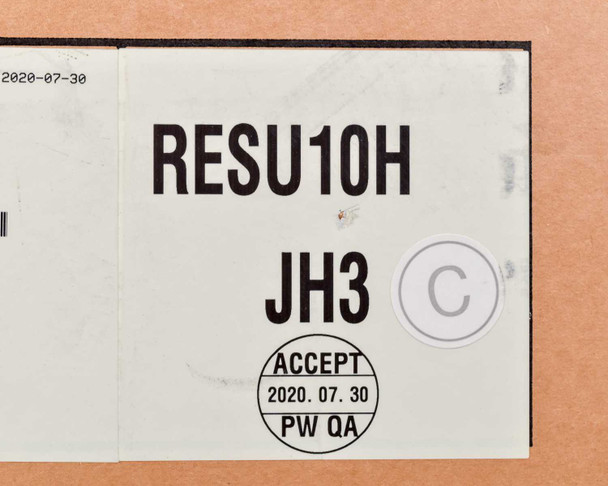

• Model: RESU10H, Variant JH3 (C-Type)
• Part Number: R15563 DLT
• Energy Capacity: 9.8 kWh usable
• Battery Chemistry: Lithium-Ion (Li-Ion)
• BMS (Battery Management System): Included
• BMS Protection: Over-voltage, over-current, short circuit, reverse polarity
• BMS Monitoring: Cell monitoring and balancing, voltage monitoring, temperature monitoring
• Overcharge and deep discharge protection
• Compatible Inverters: SMA Sunny Boy Storage 3.8 US, 5.0 US, and 6.0 US only
• Required Inverter Software: SMA firmware version 1.50.14.R or above
• NOT compatible with SolarEdge StorEdge inverters

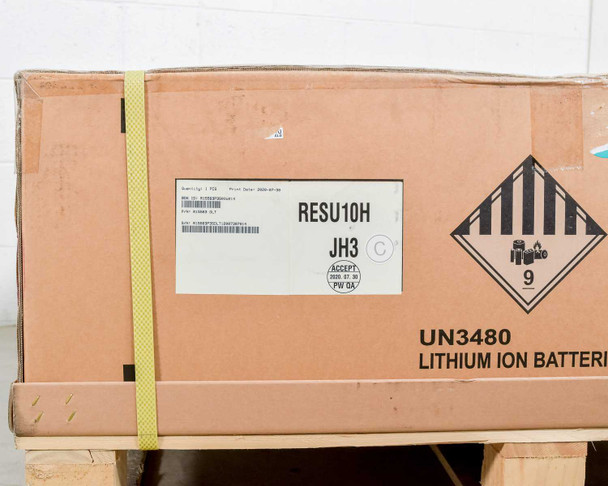

• UN Transport Classification: UN3480 Lithium Ion Batteries
• UN Certification Code: 4G/Y130/S/20/ROK/KOMDI
• Manufacture Date: December 2020 (per box label)
• Country of Manufacture: South Korea

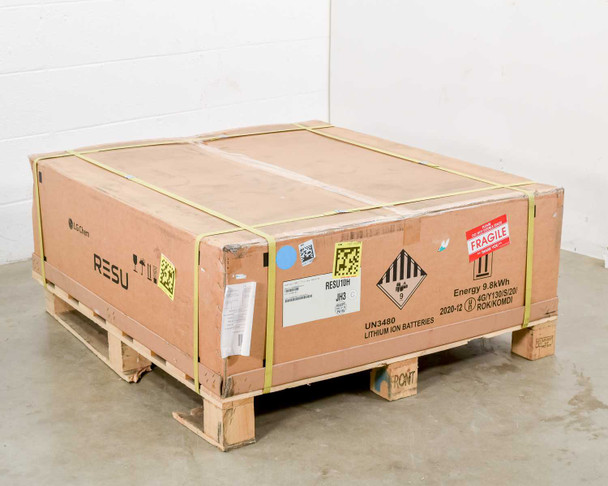

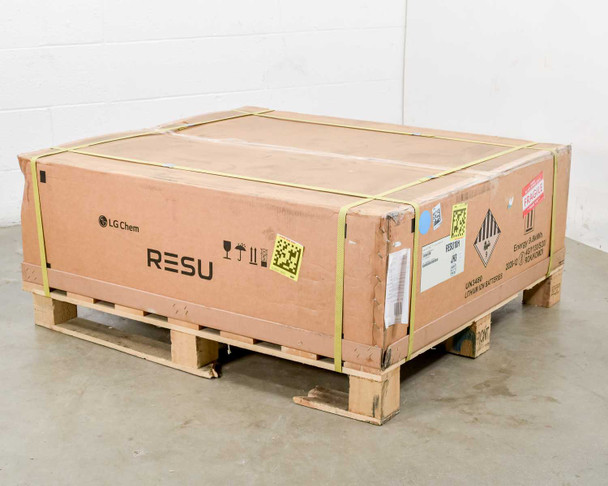

• Quantity: 1 battery unit on original wooden shipping pallet

Applications

The LG Chem RESU (Residential Energy Storage Unit) line is one of the most widely deployed residential solar battery systems in North America and Europe. The RESU10H is designed for grid-tied residential solar installations where homeowners want to store excess solar generation and use it during evening hours or during utility outages. When paired with an SMA Sunny Boy Storage inverter, the system allows the home to island from the grid during an outage and continue running on stored solar power. It is also commonly used for time-of-use rate arbitrage — charging when solar generation is high (or when grid rates are low) and discharging during peak-rate evening hours to reduce electricity costs. The C-Type variant specifically uses a high-voltage DC architecture optimized for the SMA Sunny Boy Storage communication and power interface. No routine maintenance is required; the integrated BMS handles all cell balancing and protection functions automatically.
