Liebert MP130E Micro POD Power Output Distribution 120V 24A 8-Outlet

Liebert MP130E Micro POD Power Output Distribution 120V 24A 8-Outlet

The Liebert MP130E Micro POD is a Power Output Distribution unit designed as a UPS equipment accessory. It provides eight NEMA outlets fed through an in-line bypass module, allowing connected loads to be switched seamlessly between a UPS source and utility power — making it possible to take a UPS offline for maintenance without interrupting power to the equipment. The MP130E connects in-line between the UPS output and the load side, with twist-lock connectors on both the input and output ends.

Specifications & What's Included

• Model: Liebert MP130E (Part No. 200044G11, Rev. D4/BN)
• Description: Micro POD — Power Output Distribution
• Input/Output Voltage: 120 VAC
• Current Rating: 24A
• Frequency: 60 Hz
• Phase: Single Phase
• Outlets: 8 × NEMA 5-20R style receptacles (brown face)
• UPS Output Receptacle: Hubbell Twist-Lock, 30A / 125V (marked on receptacle face)

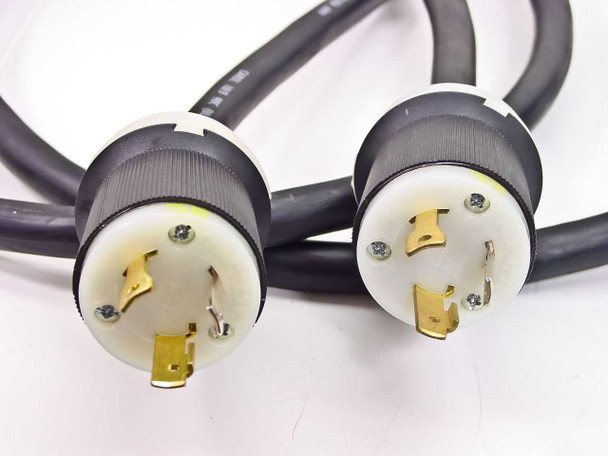

• Input Plug: Hubbell Twist-Lock (L5-30 type)
• Bypass Switch: Manual UPS / Utility selector with indicator lights (Maintenance Bypass Available / UPS Available)

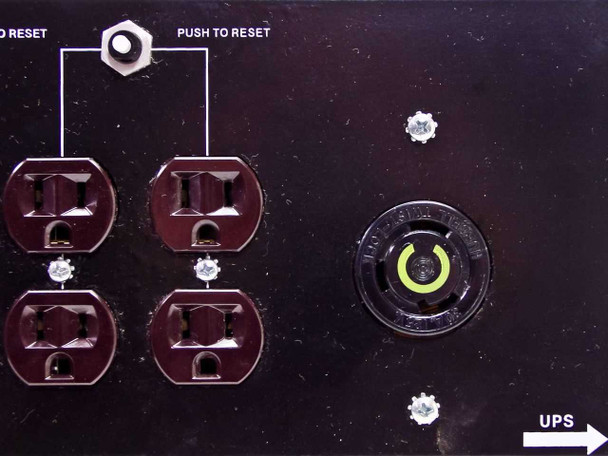

• Circuit Protection: Two Push-to-Reset breaker buttons on outlet panel
• Certifications: UL Listed (File 91N8) — UPS Equipment Accessory
• Country of Manufacture: Mexico
• Includes: Unit with attached input and output power cables (both Hubbell twist-lock ends)
• Battery: Not included — this is the POD distribution/bypass unit only

Applications

The Liebert Micro POD is used in data centers and server rooms as a UPS maintenance bypass accessory. It is installed in-line between the UPS output and the protected load (servers, networking gear, telecom equipment), giving facilities staff the ability to transfer load to raw utility power while the UPS is serviced — without shutting down connected equipment. The manual bypass switch and status indicator lights guide the operator safely through the transfer sequence; printed Maintenance and Installation instructions are molded directly into the top panel of the unit. This type of accessory is common in environments running Liebert UPS systems where scheduled UPS maintenance must occur without any downtime to critical loads. The Hubbell Twist-Lock connectors provide a secure, locking connection that won't accidentally disconnect under vibration or movement.
