Kingston KTM-16000/386 KTM-3077-0 MCA Memory Expansion Card IBM PS/2 16MB

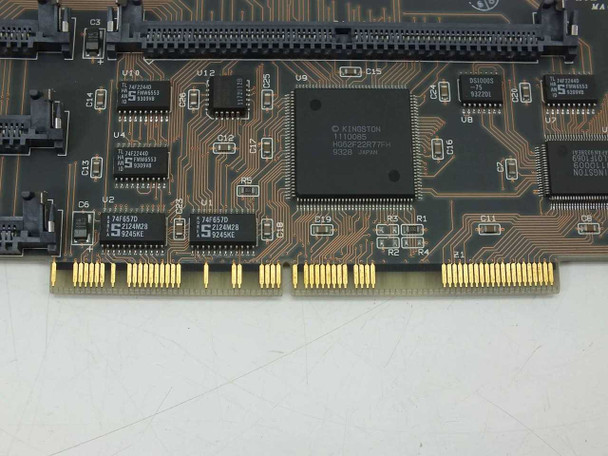

The Kingston KTM-16000/386 — marketed under the Kingston "Magic RAM" brand — is a Micro Channel Architecture (MCA) memory expansion card designed to add up to 16MB of RAM to IBM PS/2 systems. It carries part number KTM-3077-0 and assembly number 2001172, and connects via the MCA bus edge connector running the full length of the card. The card is equipped with multiple SIMM slots and onboard DRAM ICs, including Samsung memory chips visible on the component side.
Specifications & What's Included
- Brand: Kingston Technology
- Product Line: Magic RAM
- Primary Model: KTM-16000/386
- Secondary Part Number: KTM-3077-0
- Assembly Number: 2001172
- Bus Interface: MCA (Micro Channel Architecture) — full-length card
- Maximum Memory Expansion: up to 16MB
- SIMM slots: multiple slots present on top surface of PCB
- Onboard ICs: Samsung DRAM chips (visible on PCB); main controller IC marked C.6190310H / 1113085
- Country of Manufacture: Japan (per PCB silkscreen)
- Compatible Systems: IBM PS/2 Model 70, IBM PS/2 Model 80

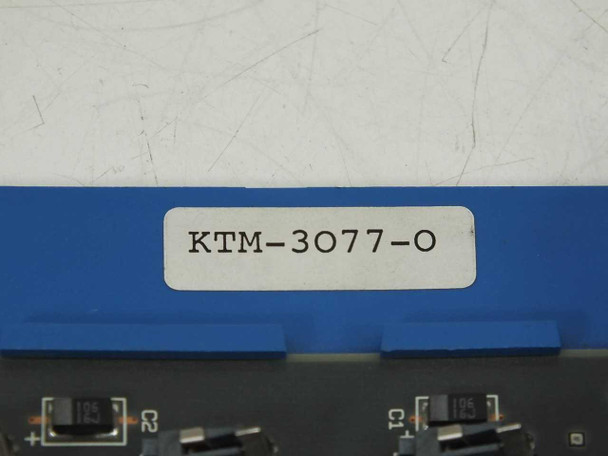

- Bracket: Blue MCA-style card bracket, intact
- Includes: Card only — no SIMMs or accessories included
Applications
The IBM PS/2 line, introduced in 1987, used IBM's proprietary Micro Channel Architecture bus instead of the standard ISA bus found in earlier PC compatibles. MCA offered faster bus speeds and auto-configuration, but was incompatible with ISA expansion cards, creating a distinct ecosystem of MCA-specific peripherals and memory upgrades. The Kingston KTM-16000/386 was designed specifically for the 386-class PS/2 models — the Model 70 and Model 80 — which were IBM's higher-end workstation and server offerings of the late 1980s and early 1990s. Adding memory via a card like this was a common way to extend the useful life of these systems beyond their stock RAM ceiling. Today, these cards are primarily sought by vintage computing collectors and hobbyists maintaining or restoring IBM PS/2 systems, as MCA memory upgrades are scarce and no longer manufactured.
This Kingston KTM-16000/386 Magic RAM MCA Memory Expansion Card (KTM-3077-0) has been inspected and appears to be in good used condition. The PCB shows minor surface wear consistent with prior installation and removal, and the blue MCA bracket is intact. The card was pulled from a working IBM PS/2 environment. It has not been powered up or bench-tested at our facility. Please review all photos carefully and contact us with any questions before purchasing.
Warranty Information
Additional Information
Brand: |
Kingston |
Model: |
KTM-16000/386 |
Secondary Model: |
KTM-3077-0 |
MPN: |
2001172 |
SKU: |
8044 |
Type: |
MCA Memory Expansion Card |
Memory Type: |
DRAM (MCA Bus) |
Maximum Memory Supported: |
16MB |
Bus Type: |
MCA (Micro Channel Architecture) |
Form Factor: |
MCA Full-Length Card |
Compatible With: |
IBM PS/2 Model 70, IBM PS/2 Model 80 |
Product Name / Series: |
Kingston Magic RAM |
Country/Region of Manufacture: |
Japan |
Seller Notes: |
Card only; no SIMMs or accessories included. |
Condition Notes: |
This Kingston KTM-16000/386 MCA Memory Expansion Card is in good used condition with minor wear from prior installation. Pulled from a working IBM PS/2 environment; not bench-tested at our facility. Please view photos and contact us with questions. |
