Description
IVS IVS200 AC Power Control Distribution Module 208V 30A 3-Phase Accuvision 60Hz
The IVS IVS200 is an AC power control and distribution module designed for use with IVS Accuvision semiconductor processing systems. It accepts a single three-phase 208V, 30A input and distributes switched AC power to up to 12 individually controlled circuits through labeled IEC outlets on the rear panel. Each circuit is controlled by a dedicated front-panel toggle switch, allowing operators to power individual subsystems independently — including turbomolecular pumps, ion pumps, computer, monitor, blower, and printers.
Specifications & What's Included
- Model: IVS200 (AC Control Module)
- Manufacturer: IVS
- System: Accuvision Semiconductor Processing System
- Input Voltage: 208V AC
- Input Current: 30A
- Phase: 3-Phase
- Frequency: 60Hz
- Number of Output Outlets: 12 (IEC C13/C19-style)

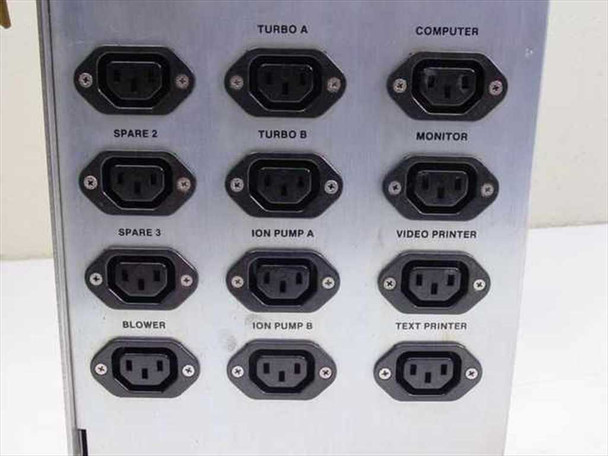

- Outlet Labels: Turbo A, Turbo B, Computer, Monitor, Ion Pump A, Ion Pump B, Blower, Video Printer, Text Printer, Spare 2, Spare 3 (and one additional spare position)
- Front-panel toggle switches: Console Main (3-pole), plus individual switches for CMPTR, MNTR, VIDEO PRN, TEXT PRN, TURBO A, TURBO B, ION PMP A, ION PMP B, BLWR, Spare 1, Spare 2, Spare 3
- Input connector: 5-pin military-style circular connector on coiled cable (included)
- Front-panel key lock for access control

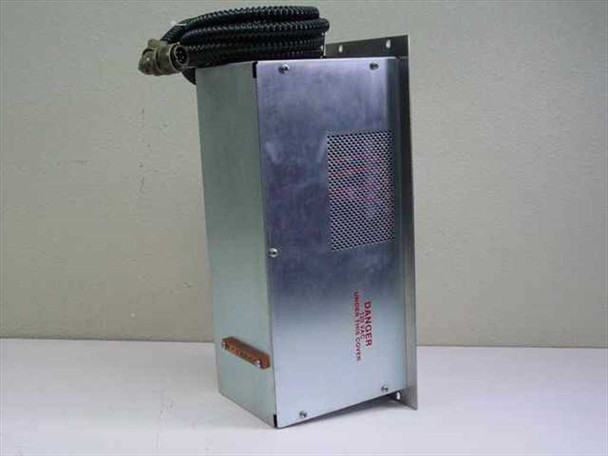

- Warning: 120 VAC present under side cover
- Enclosure: brushed aluminum
- Form factor: rackmount-compatible / standalone
- Includes: coiled input cable with 5-pin circular connector
Applications
The IVS IVS200 was purpose-built for IVS (Integrated Vacuum Systems) Accuvision thin-film deposition and semiconductor processing systems, which were used in research and production environments for physical vapor deposition (PVD) and related vacuum processes. Modules like this centralize AC power management for a complex system with many subsystems — turbomolecular vacuum pumps, ion pumps, blowers, and associated instrumentation — so that individual components can be powered up or shut down in a controlled sequence from a single panel. This type of centralized switched power distribution is common in semiconductor fab and research vacuum systems where orderly startup and shutdown sequencing is critical to equipment protection. These modules are now primarily sought for maintenance, repair, and replacement within legacy Accuvision system installations.

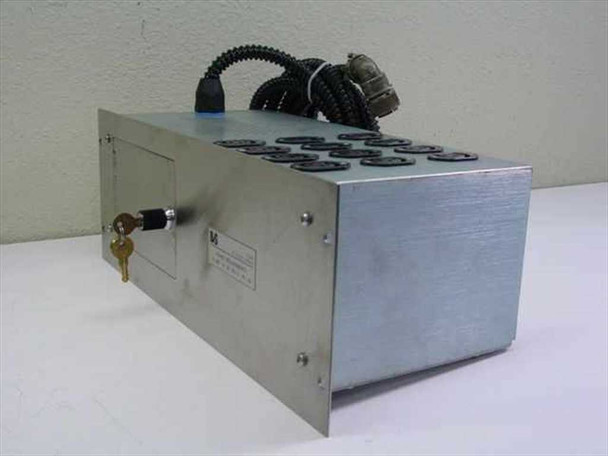

This IVS IVS200 AC Power Control and Distribution Module has been inspected and is in good used condition. It was pulled from a working environment where it was in use and functional. The brushed aluminum enclosure shows light wear consistent with normal service life. All 12 labeled IEC outlet positions and the front-panel toggle switches are visually intact, and the coiled input cable with 5-pin military-style connector is included. Please view our photo set and contact us if you have any questions.
Warranty Information
Additional Information
Brand: |
IVS |
Model: |
IVS200 |
MPN: |
IVS200 |
Type: |
AC Power Control and Distribution Module |
SKU: |
32098 |
Voltage: |
208V |
Current Rating: |
30A |
Phase: |
3-Phase |
Frequency: |
60Hz |

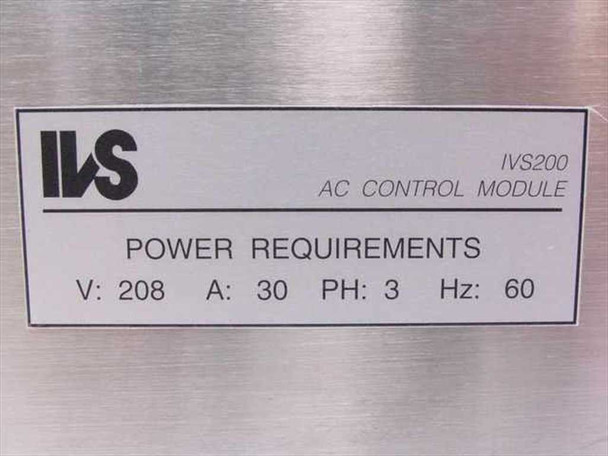

Power Requirements: |
208V, 30A, 3-Phase, 60Hz |
Number of Outlets: |
12 |
Outlet Type: |
IEC C13 / C19 |
Outlet Labels: |
Turbo A, Turbo B, Computer, Monitor, Ion Pump A, Ion Pump B, Blower, Video Printer, Text Printer, Spare 2, Spare 3 |
Input Connector: |
5-pin military-style circular connector (coiled cable) |
Control Interface: |
Individual toggle switches per circuit |
Switch Positions: |
Console Main, CMPTR, MNTR, VIDEO PRN, TEXT PRN, TURBO A, TURBO B, ION PMP A, ION PMP B, BLWR, Spare 1, Spare 2, Spare 3 |
Security: |
Key lock on front panel |
Enclosure: |
Brushed aluminum |
Form Factor: |
Rackmount / Standalone |
Compatible With: |
IVS Accuvision Semiconductor Systems |
Country/Region of Manufacture: |
United States |
Seller Notes: |
Includes coiled input cable with 5-pin circular connector. No additional accessories. |
Condition Notes: |
This IVS IVS200 AC Power Control Distribution Module has been inspected and is in good used condition. Pulled from a working environment where it was in use and functional. Enclosure shows light wear. Coiled input cable with connector included. |
