Description

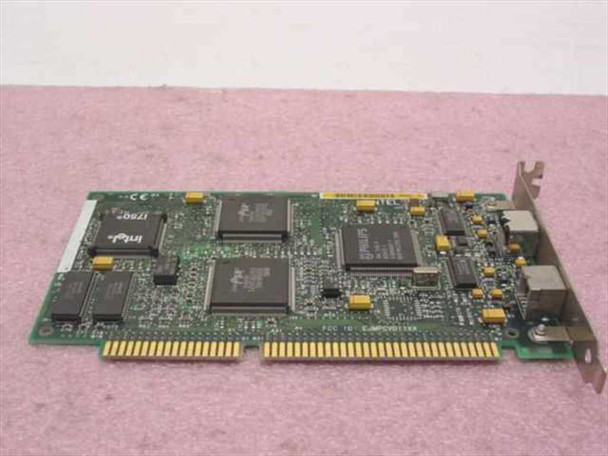

Intel ProShare 200 Conferencing Video Capture Card 16-Bit ISA 635070-003 i750
This is the 16-bit ISA video capture card that shipped as part of the Intel ProShare Conferencing Video System 200. Designed to bring desktop video conferencing to mid-1990s PCs, this card handles the analog video capture portion of the ProShare 200 system, digitizing incoming video for conferencing use over ISDN or LAN connections.
Specifications & What's Included
- Manufacturer: Intel
- Model / System: ProShare Conferencing Video System 200
- Part Number: 635070-003
- Bus Interface: 16-bit ISA
- Form Factor: Half-height ISA expansion card with metal bracket
- Main Processor: Intel i750 video processor IC
- Video Controller: Philips QFP video capture IC (large QFP, visible on component side)
- Video Input Connectors: Two mini-DIN ports on bracket (S-Video and composite video input)
- Additional ICs: Multiple supporting logic and memory ICs on board
- Card only — no cables, software discs, or ISDN adapter included
Applications
The Intel ProShare Conferencing Video System 200 was one of Intel's flagship desktop videoconferencing solutions of the mid-1990s, designed for corporate and professional use. The complete ProShare 200 system combined this ISA video capture card with a separate audio/ISDN card, a small camera, a handset, and software running under Windows 3.1 or Windows 95 — enabling point-to-point video calls over ISDN lines (typically 128 Kbps BRI ISDN) or corporate LANs. The i750 processor on this card was Intel's dedicated video codec chip, the same family used in Intel's DVI (Digital Video Interactive) technology. Today these cards are sought by retro computing enthusiasts, ProShare system restorers, and collectors of 1990s-era desktop videoconferencing equipment. The 16-bit ISA bus interface makes it compatible with ISA-equipped 486 and early Pentium-era motherboards from approximately 1993–1997.

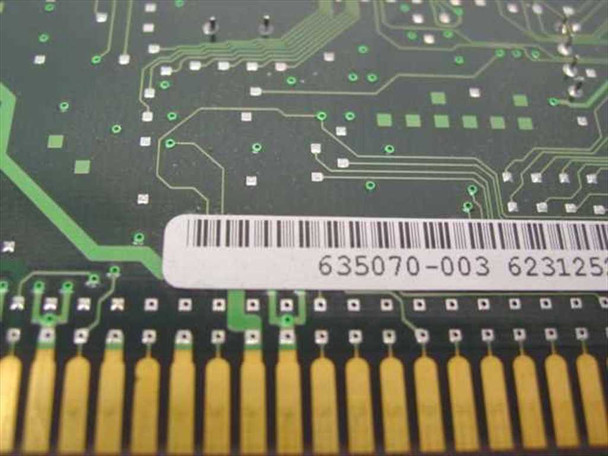

This Intel ProShare 200 ISA Video Capture Card (part 635070-003) was pulled from an Intel ProShare Conferencing Video System 200 and has been visually inspected. The card shows light surface wear consistent with normal use, but is in generally good cosmetic condition with no broken traces, bent pins, or obvious physical damage visible. The ISA edge connector and on-board ICs appear intact. It has not been powered or tested at our facility. Please review our photos and contact us with any questions.
Warranty Information
Additional Information
Brand: |
Intel |
Model: |
ProShare 200 |
MPN: |
635070-003 |
Type: |
Video Capture Card |
SKU: |
28254 |
Chipset: |
Intel i750 / Philips video controller |
Bus Type: |
ISA 16-Bit |
Form Factor: |
Half-Height ISA Card |
Compatible With: |
Intel ProShare Conferencing Video System 200 |
Interface: |
16-Bit ISA |
Video Input Connectors: |
S-Video, Composite (Mini-DIN) |
Country/Region of Manufacture: |
United States |
Seller Notes: |
Card only — no cables, software, or bracket hardware included. |
Condition Notes: |
This Intel ProShare 200 ISA video capture card (635070-003) was pulled from a ProShare conferencing system and visually inspected. Shows light use wear; edge connector and ICs appear intact. Not tested at our facility. |
