Intel StorageExpress LDS240208E ELD 486sx Network Backup Server 540MB Ethernet

Intel StorageExpress LDS240208E ELD 486sx Network Backup Server 540MB Ethernet

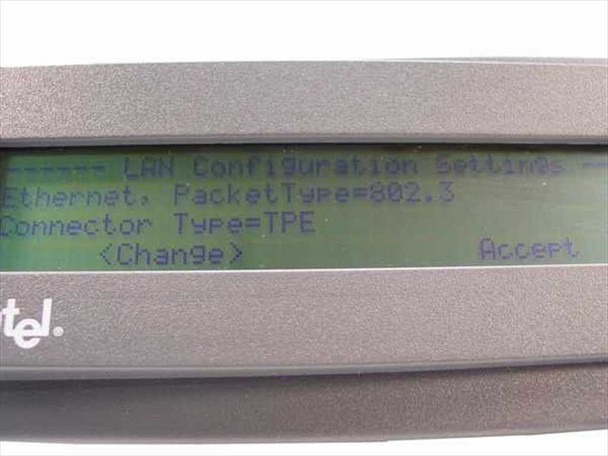

The Intel StorageExpress LDS240208E is a dedicated network backup server built around Intel's StorageExpress system — a purpose-built appliance designed to provide centralized tape and disk backup services for LAN-connected workstations without requiring a dedicated general-purpose file server. This unit is the ELD (EL Drive) model, equipped with an Intel 486sx processor and a Quantum 540MB hard drive. It powers on and the front-panel LCD display shows the LAN configuration screen, but it could not be tested further. It is being sold AS-IS with no warranty.

Specifications & What's Included

• Model: LDS240208E (StorageExpress ELD / EL Drive)

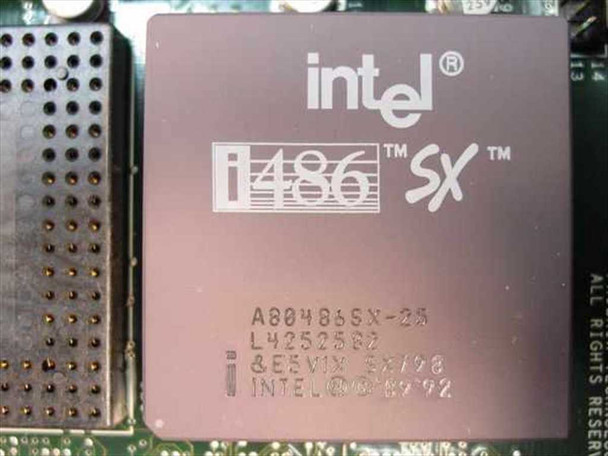

• Processor: Intel 486sx
• Hard Drive: Quantum 540MB (Drive #Q540)
• Network Interface: Ethernet, PacketType 802.3, Connector Type TPE (Twisted Pair)
• Optional Token Ring Card slot on rear panel (TPE / AUI) — slot present, card not installed
• Front panel: LCD configuration display, 4 control buttons, green power/status LED, Intel logo

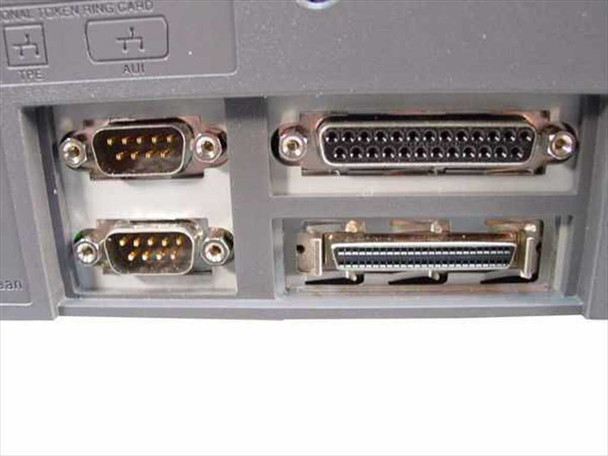

• Rear ports: 2x DB9 serial, DB25/DB37 parallel, 50-pin SCSI connector, RJ45 network port
• Form factor: Desktop chassis, gray/dark enclosure
• Manufacture date: 11/30/1994
• Included in accessories box: Intel StorageExpress System Reference Guide, Intel LANDesk Technology booklet, cables, loose documentation papers

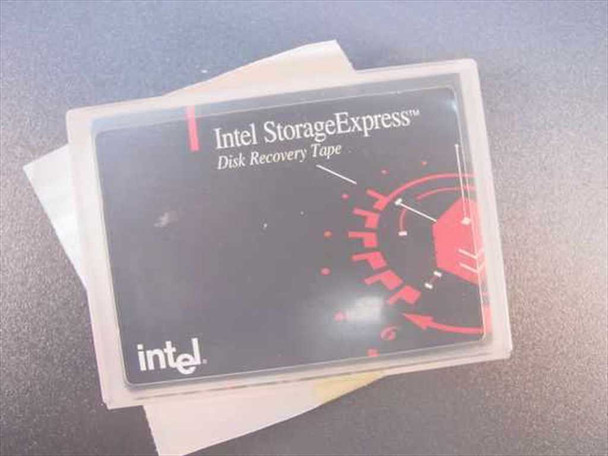

• Included: Intel StorageExpress Disk Recovery Tape (in plastic case)
• No additional manual or peripherals beyond the above

Applications

The Intel StorageExpress system was introduced in the early-to-mid 1990s as a turnkey network backup appliance for Novell NetWare and DOS-based LAN environments. Rather than dedicating a full file server to backup duties, the StorageExpress unit sat on the network as a standalone device, allowing multiple workstations and servers to back up to its internal drive over Ethernet or Token Ring. It was aimed at small-to-medium business networks that needed automated, centralized backup without the overhead of a general-purpose server. The system ran its own embedded software and was managed through the front-panel LCD or LAN management utilities such as Intel LANDesk. By the mid-to-late 1990s, this class of dedicated backup appliance was largely superseded by network-attached storage and software-based backup solutions running on standard server hardware. Today these units are of interest primarily to vintage computing collectors, researchers, and those maintaining or documenting early-1990s corporate LAN environments.
