Intel EtherExpress 16TP ISA LAN Adapter PCLA8120 304937-008 10Base-T
The Intel EtherExpress 16TP (PCLA8120) is a 16-bit ISA Ethernet network adapter designed to connect ISA-bus desktop computers to a 10Base-T (twisted-pair) Ethernet network at 10 Mbps. The card supports both a RJ-45 10Base-T port and a DB-15 AUI port for flexible connectivity, and is marked FCC Class A compliant. The board carries an Intel-branded main controller IC along with supporting logic and a crystal oscillator, all on a full-height ISA card.
Specifications & What's Included
- Model: PCLA8120 (EtherExpress 16TP)
- Part Number: 304937-008
- Bus Interface: 16-bit ISA (Industry Standard Architecture)
- Network Standard: 10Base-T, IEEE 802.3 Ethernet
- Data Rate: 10 Mbps

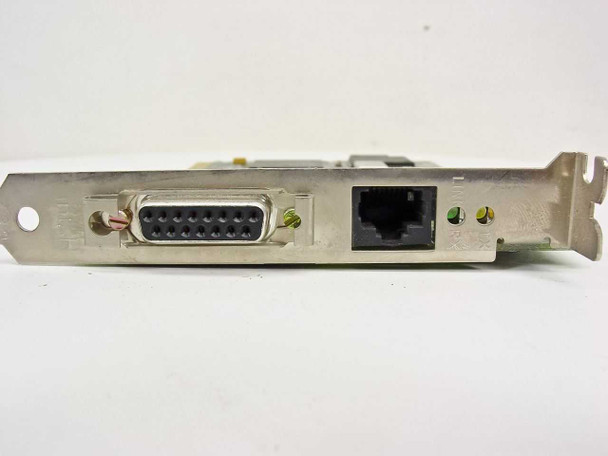

- Connectors: RJ-45 (10Base-T) and DB-15 AUI on bracket
- Indicator LEDs: two LEDs on bracket (link/activity)
- Main Controller: Intel-branded controller IC (visible on component side)
- Form Factor: Full-height ISA card
- FCC Compliance: Class A (marked on PCB)
- Country of Manufacture: China (per PCB markings)
- Includes: card only — no cables, drivers, or documentation
Applications
The Intel EtherExpress 16TP was part of Intel's EtherExpress line of ISA Ethernet adapters, introduced in the early-to-mid 1990s when ISA was the dominant expansion bus in IBM-compatible PCs. These cards were used to connect 286, 386, and 486-class desktop computers — and early Pentium systems still fitted with ISA slots — to 10Base-T Ethernet LANs running Novell NetWare, DOS LAN Manager, Windows for Workgroups, or early Windows NT networks. The 10Base-T twisted-pair interface made structured cabling practical in offices, replacing the thicker coaxial cable required by 10Base-2 (thinnet) installations. Today these cards are sought by collectors and administrators maintaining legacy ISA-bus systems, industrial PCs, CNC machines, and other equipment that still relies on ISA-slot network connectivity and cannot use modern PCI or PCIe adapters.
This Intel EtherExpress 16TP ISA LAN Adapter (PCLA8120, 304937-008) is in good used condition. It was pulled from a working environment where it had been previously in service. The card shows light handling wear consistent with normal use; the PCB, ISA edge connector, RJ-45 port, and DB-15 AUI connector all appear intact with no visible damage. It has not been powered up or tested at our facility. Please view our photo set and contact us if you have any questions.
Warranty Information
Additional Information
Brand: |
Intel |
Model: |
PCLA8120 |
MPN: |
304937-008 |
Secondary Model: |
EtherExpress 16TP |
SKU: |
44201 |
Type: |
ISA Ethernet LAN Adapter (NIC) |
Interface: |
ISA (Industry Standard Architecture) |
Network Standard: |
10Base-T (IEEE 802.3) |
Data Rate: |
10 Mbps |
Connector Type: |
RJ-45 (10Base-T) and DB-15 (AUI) |
Form Factor: |
ISA Card |
Compatible With: |
ISA-bus PCs, IBM PC/AT, 286/386/486 desktops |
FCC Class: |
Class A |
Country/Region of Manufacture: |
China |
Condition Notes: |
This Intel EtherExpress 16TP ISA LAN Adapter PCLA8120 (304937-008) is in good used condition, pulled from a working environment. Shows light handling wear; ISA edge connector, RJ-45, and DB-15 ports appear intact. Not tested at our facility. |
